Upright drill OPTIdrill DH 32GSV-1
Upright drill OPTIdrill DH 32GSV-2
Upright drill OPTIdrill DH 32GSV-3
Upright drill OPTIdrill DH 32GSV-4
Upright drill OPTIdrill DH 32GSV-5
Upright drill OPTIdrill DH 32GSV-6
Upright drill OPTIdrill DH 32GSV-7
Upright drill OPTIdrill DH 32GSV-8

Upright drill OPTIdrill DH 32GSV

€6.296,37 EUR (€5.119,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3034245 Barcode: 4030635021749

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

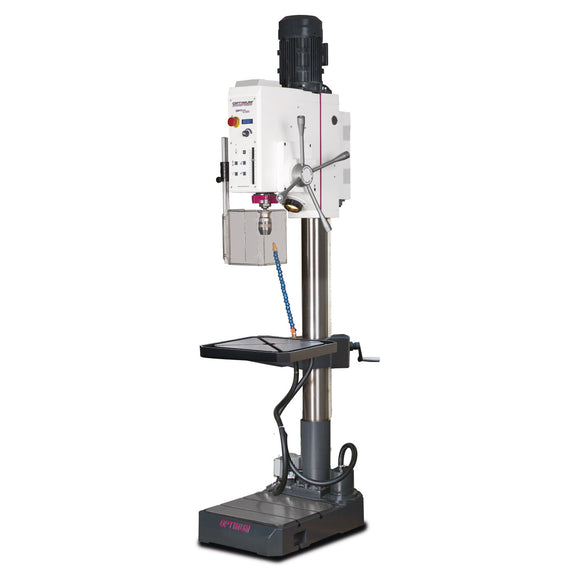

Upright drill OPTIdrill DH 32GSV.
  • Frequency converter

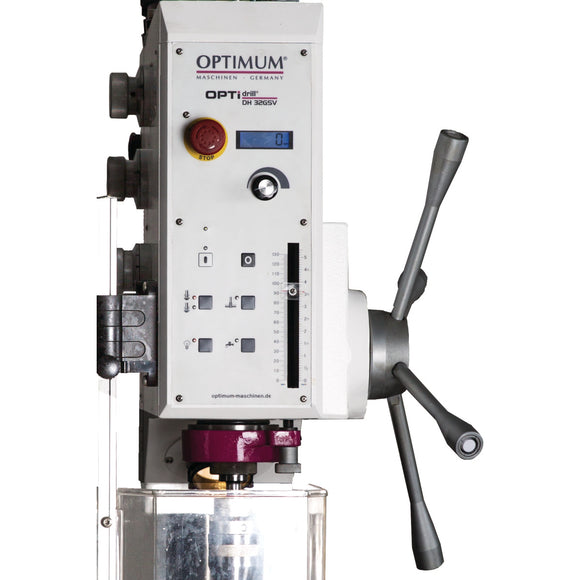

  • User-friendly membrane keyboard
  • Digital speed display
  • Tapping function
  • Smooth running thanks to ground multi-tooth driver
  • High concentricity due to hardened and ground main spindle
  • Low-maintenance gearbox with grease lubrication
  • Gearbox with PA6 gears
  • Large speed range
  • User-friendly membrane keyboard
  • Heavy, solid cast construction
  • Large, height-adjustable protective screen with safety switch for the utmost protection of the user
  • Drilling depth stop adjustable with millimeter scale
  • Forward / reverse operation
  • Machine light integrated in the drill head
  • Integrated expeller for easy tool change
  • Precision machined drilling table with diagonal T-slots with all-round cooling water channel
  • Thick-walled cast-iron column for high power absorption and stability
  • Massive base plate, large dimensions and strongly ribbed on the back
OPTIdrill DH 32GSV
  • Automatic quill feed
  • Coolant device and chip filter according to Machinery Directive


.
  • 40 - 3000 min¯¹
  • Column diameter 115 mm
  • Continuous drilling performance (steel) 26 mm
  • Coolant pump drive motor output 40 W
  • Drilling performance (steel) 30 mm
  • Drilling table load bearing capacity 120 kg
  • Drilling table rotation 360 °
  • Drilling table workspace length 400 mm
  • Drilling table workspace width 420 mm
  • EMV-Class C2
  • Frequency 50 Hz
  • Height 2230 mm
  • Length 820 mm
  • Machine base workspace length 420 mm
  • Machine base workspace width 395 mm
  • Net weight 324 kg
  • Number of gears 4 Steps
  • Quill feed speed 0.05 / 0.1 mm/rev
  • Quill stroke 125 mm
  • Reach 285 mm
  • Spindle chuck MT 4
  • Spindle motor power 2,2 kW
  • Standard DIN EN 55011
  • Supply voltage 400 V
  • Thread tapping (steel) M 16 x 2 mm
  • Width 450 mm
  • Adapter MK4-B16

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.
