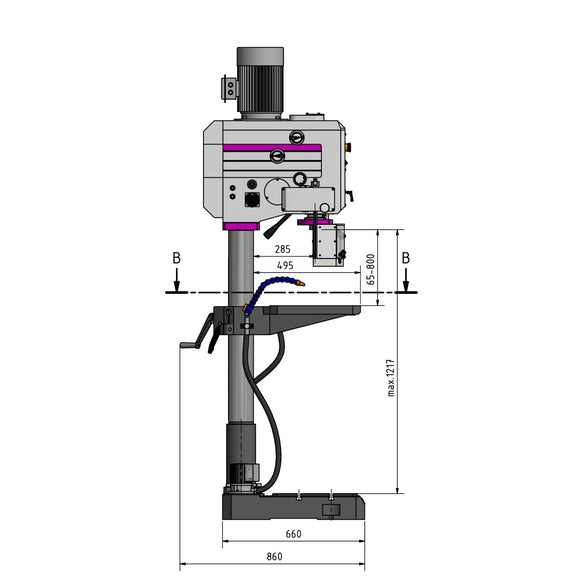

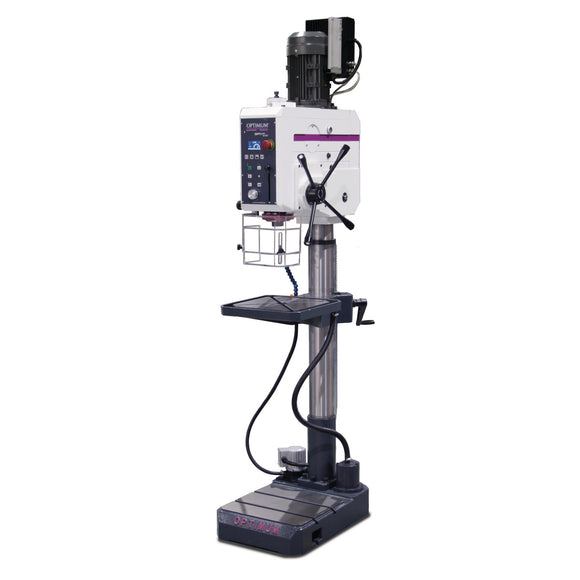

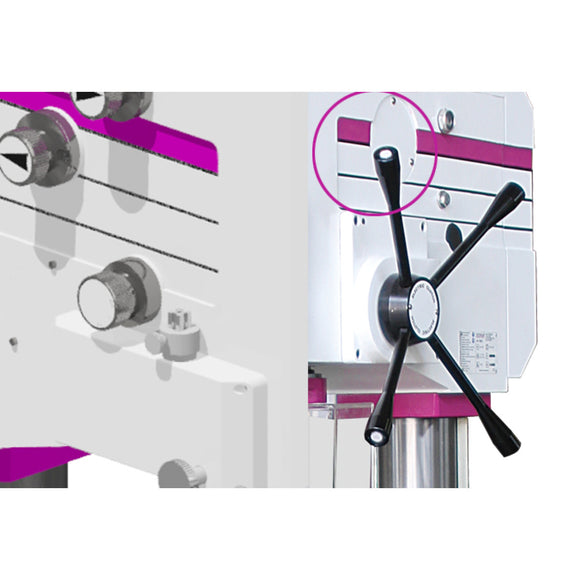

Gear drilling machine OPTIdrill DH35V

• 30 - 2950 min¯¹
• Column diameter 115 mm
• Continuous drilling performance (steel) 26 mm
• Coolant pump output 0,1 kW
• Drilling performance (steel) 35 mm
• Drilling table load bearing capacity 200 kg
• Drilling table rotation 360 °
• Drilling table workspace length 400 mm
• Drilling table workspace width 420 mm
• Frequency 50 Hz

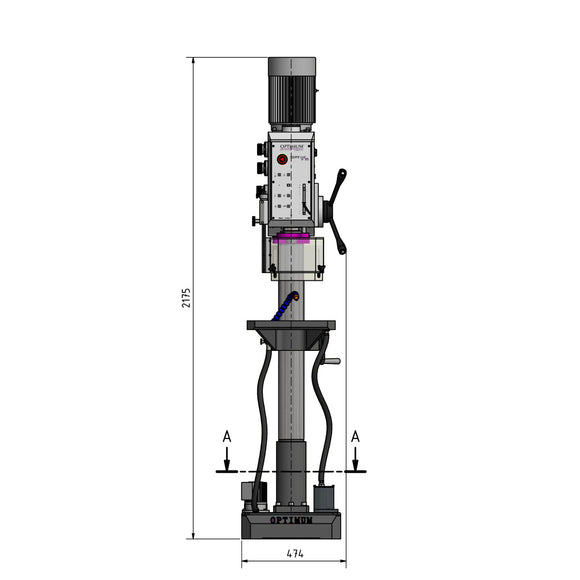

• Height 2175 mm
• Length 860 mm

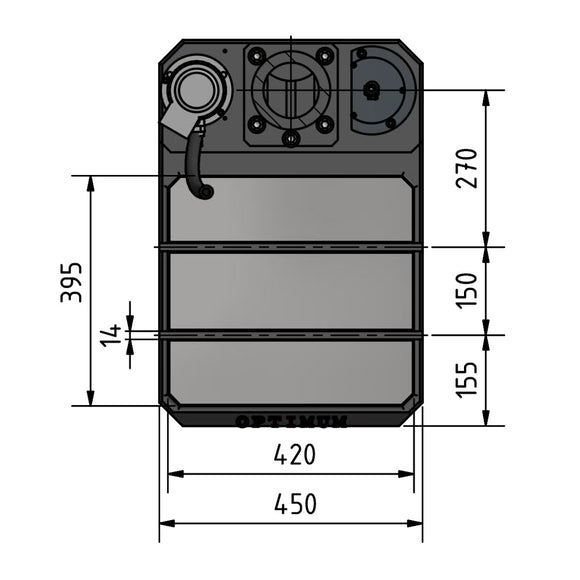

• Machine base workspace length 659 mm
• Machine base workspace width 420 mm
• Motor power 2,2 kW
• Net weight 365 kg
• Number of gears 4
• Quill diameter 60 mm
• Quill feed gears 3
• Quill feed speed 0.05 – 0.15 mm/U
• Quill stroke 125 mm
• Reach 285 mm
• Spindle chuck MT 4
• Supply voltage 400 V
• Thread tapping (steel) M 20
• Width 474 mm

• Quick-action drill chuck 1 - 16 mm
• Tapered arbor for drill chuck MK 4/B16
