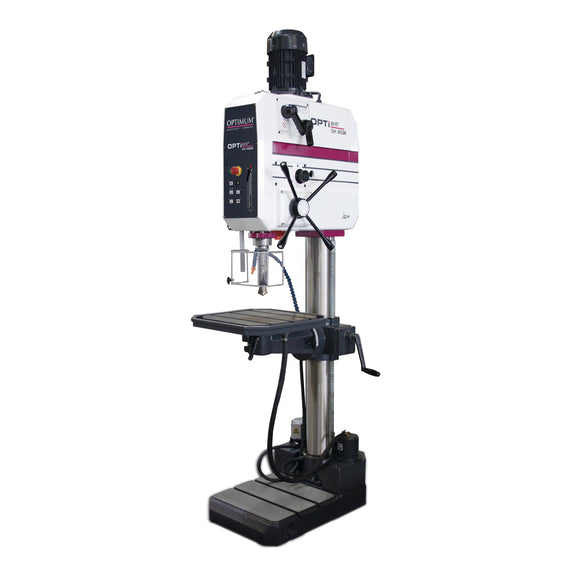

Getriebebohrmaschine OPTIdrill DH 45GE

• 90 - 1520 min¯¹
• Continuous drilling performance (steel) 35 mm
• Drilling performance (steel) 40 mm
• Drilling table workspace length 530 mm
• Drilling table workspace width 530 mm
• Frequency 50 Hz
• Height 2445 mm
• Length 880 mm
• Motor power 2.2 kW
• Net weight 550 kg
• Number of gears 8 Steps
• Quill feed gears 3 Steps
• Quill feed speed 0.1 – 0.25 mm/rev
• Quill stroke 170 mm
• Reach 350 mm
• Spindle chuck MT 4
• Supply voltage 400 V
• Thread tapping (steel) M 30
• Width 595 mm

• Quick-action drill chuck 1-16 mm
• Tapered arbor for drill chuck MK4/B16
