Gear drilling machine OPTIdrill DH 55G

€12.908,85 EUR (€10.495,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3034265 Barcode: 4030635039171

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

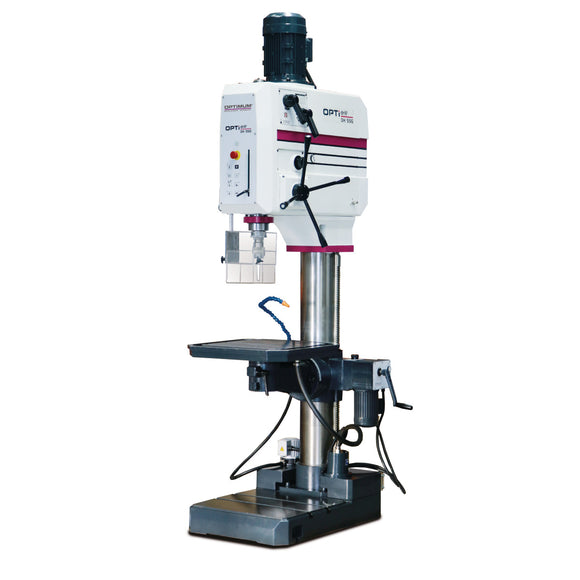

Gear drilling machine OPTIdrill DH 55G.
  • Heavy, solid cast construction
  • Dirt and water resistant, easy to clean membrane keypad
  • Electronics 24V DC
  • Electrical quill feed
  • Depth stop
  • Threading attachment
  • Machine light integrated in the drill head
  • Large, height-adjustable protective screen with safety switch for maximum protection of the user
  • Large dimensioned, solid drill table, precisely worked with parallel T-slots and circumferential cooling water channel, strongly ribbed on the back, tiltable ± 90 ° sideways

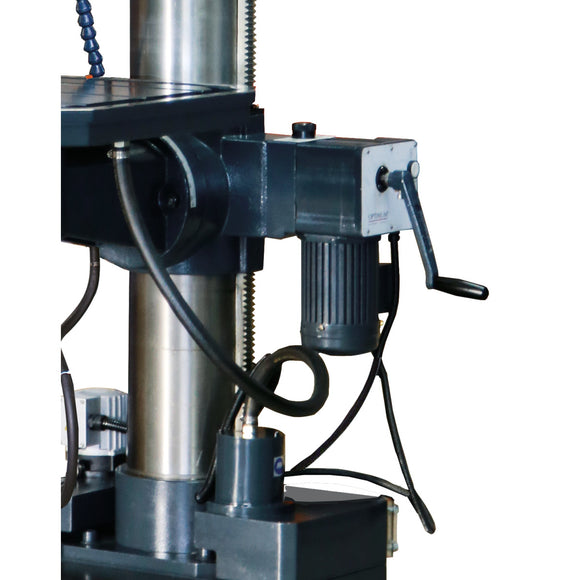

  • Motorized rotary table height adjustment
  • Coolant system and external coolant tank can be removed for easy and complete emptying
  • Chip filter according to Machinery Directive
  • Extremely stable, thick-walled cast-iron column for high power consumption
  • Solid base plate with parallel T-slots, precision surface finish

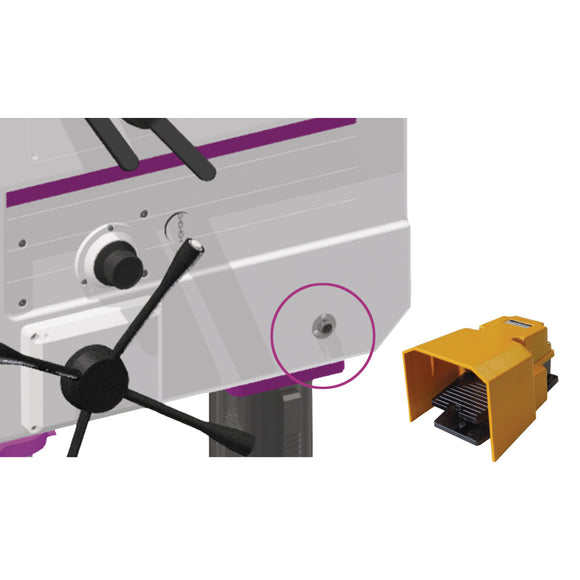

  • Optional foot switch for switching between clockwise and anticlockwise rotation and for thread cutting


.
  • 45 - 2000 min¯¹
  • Column diameter 200 mm
  • Continuous drilling performance (steel) 50 mm
  • Coolant pump drive motor output 100 W
  • Drilling performance (steel) 55 mm
  • Drilling table angle 90 °
  • Drilling table load bearing capacity 350 kg
  • Drilling table rotation 360 °
  • Drilling table workspace length 600 mm
  • Drilling table workspace width 600 mm
  • Frequency 50 Hz
  • Height 2545 mm
  • Length 850 mm
  • Machine base workspace length 515 mm
  • Machine base workspace width 570 mm
  • Motor power 2,2 / 2,8 kW
  • Net weight 907 kg
  • Number of gears 16 Steps
  • Quill feed gears 3 Steps
  • Quill feed speed 0,1 – 0,2 mm/rev
  • Quill stroke 200 mm
  • Reach 400 mm
  • Spindle chuck MT 4
  • Supply voltage 400 V
  • Thread tapping (steel) M 42
  • Width 1060 mm
  • Keyless chuck 1-16 mm
  • Morse cone MK 4 / B 16
