Gear drilling machine OPTIdrill DH 40CTPE-1
Gear drilling machine OPTIdrill DH 40CTPE-2
Gear drilling machine OPTIdrill DH 40CTPE-3
Gear drilling machine OPTIdrill DH 40CTPE-4

Gear drilling machine OPTIdrill DH 40CTPE

€4.943,37 EUR

Tax includedShipping calculated at checkout

SKU: 3035353 Barcode: 4030635049286

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

Available on backorder ⓘ

Contact us about this product

WhatsApp

Paying with a business card? Please contact our manager, who will assist you with your purchase | +353 (0) 9064 32000

Description Features Delivery contents Shipping

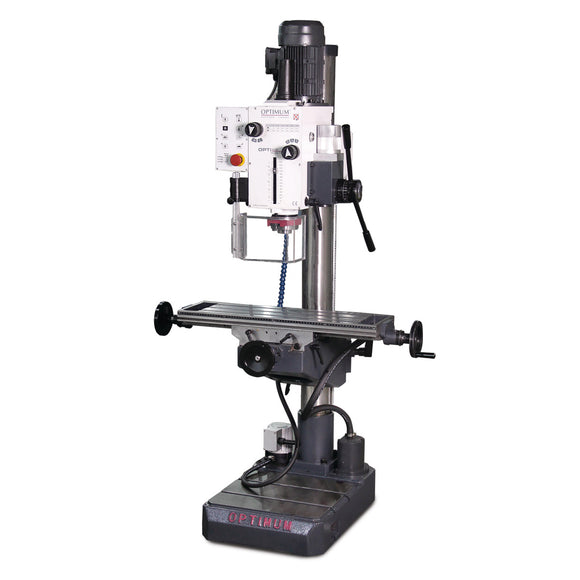

Gear drilling machine OPTIdrill DH 40CTPE.
  • Two-stage quality industrial electric motor
  • Smooth running due to ground gear wheels running in an oil bath
  • Drilling depth stop
  • Thread cutting function
  • Height-adjustable gear head and drill table
  • Right/left rotation
  • Gear head can be tilted sideways ± 45
  • Largely dimensioned, solid cross table, precisely surface-finished, adjustable via 3 handwheels, with integrated length scale
  • Adjustable end stops on the cross table
  • Coolant pump
  • LED light
  • Two-stage quality industrial electric motor
  • Smooth running due to ground gear wheels running in an oil bath
  • Drilling depth stop
  • Thread cutting function
  • Height-adjustable gear head and drill table
  • Right/left rotation
  • Gear head can be tilted sideways ± 45
  • Large, solid cross table, precisely surface-finished, adjustable via 3 handwheels, with integrated length scale
  • Adjustable end stops on the cross table
  • Coolant pump
  • LED light


.
  • 95 - 3200 min¯¹
  • Column diameter 115 mm
  • Continuous drilling performance (steel) 28 mm
  • Drilling performance (steel) 32 mm
  • Drilling table angle 90 °
  • Drilling table rotation 360 °
  • Drilling table workspace length 730 mm
  • Drilling table workspace width 210 mm
  • Frequency 50 Hz
  • Height 2090 mm
  • Length 1060 mm
  • Machine base workspace length 420 mm
  • Machine base workspace width 410 mm
  • Net weight 370 kg
  • Number of gears 2 x 6 Steps
  • Quill diameter 75 mm
  • Quill feed speed 130 mm/min
  • Quill stroke 120 mm
  • Reach 280 mm
  • Spindle chuck MT 4
  • Supply voltage 400 V
  • Total rated value 1,5 kW
  • Width 745 mm
  • Gear rim drill chuck 1-13 mm/B16
  • T-nuts
  • Adapter MT4-MT3
  • arbor MT4/B16
