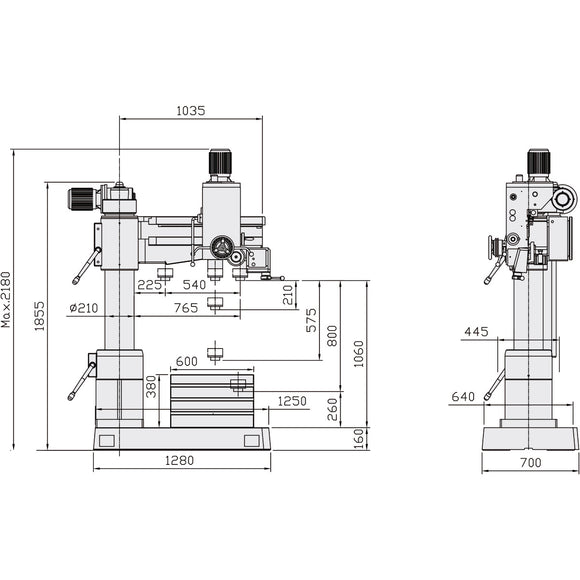

Radial drill OPTIdrill RD 4

• 73 - 1247 min¯¹
• Boom angle of rotation 180 °
• Boom lift motor drive output 0,75 kW

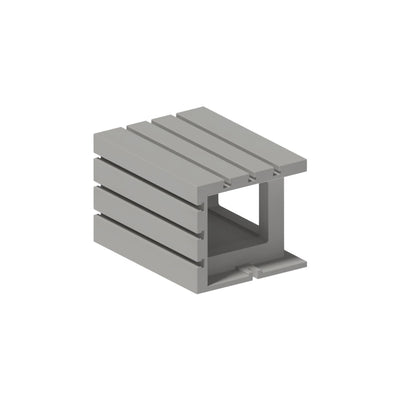

• Clamping table height 380 mm
• Clamping table length 600 mm
• Clamping table width 445 mm
• Column diameter 210 mm
• Continuous drilling performance (steel) 28 mm
• Coolant pump drive motor output 90 W
• Drilling performance (steel) 32 mm
• Frequency 50 Hz
• Height 2180 mm
• Length 1260 mm
• Machine base length 1260 mm
• Machine base width 700 mm
• Machine base workspace length 828 mm
• Machine base workspace width 522 mm
• Max. distance spindle to clamping table 675 mm
• Min. distance spindle to clamping table 0 mm
• Net weight 1120 kg
• Number of gears 6
• Quill feed gears 3
• Quill feed speed 0.05 – 0.15 mm/rev
• Quill stroke 210 mm
• Spindle chuck MT 4
• Spindle motor power 1,5 kW
• Supply voltage 400 V
• Total rated value 3 kW
• Width 700 mm
• X-axis travel 530 mm
• Z-axis travel 580 mm

• worktable
