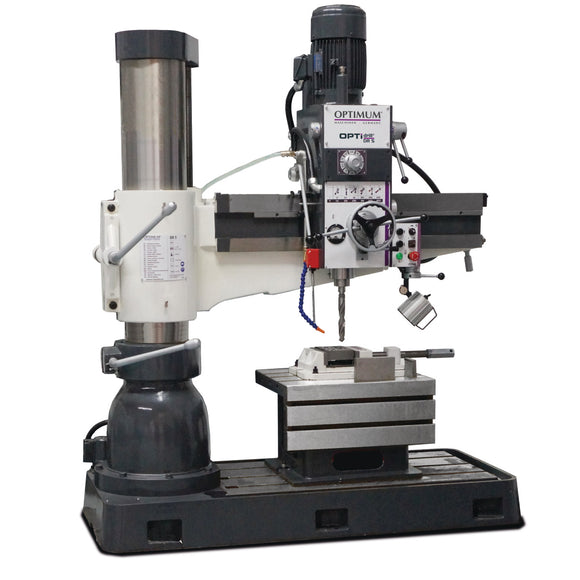

Radial drill OPTIdrill RD 5

• 37 - 1253 min¯¹
• Boom angle of rotation 180 °
• Boom lift motor drive output 0,75 kW
• Clamping table height 415 mm
• Clamping table length 635 mm
• Clamping table width 520 mm
• Column diameter 260 mm
• Continuous drilling performance (steel) 40 mm
• Coolant pump drive motor output 90 W
• Drilling performance (steel) 42 mm
• Frequency 50 Hz
• Height 2550 mm
• Length 1725 mm
• Machine base length 1608 mm
• Machine base width 745 mm
• Machine base workspace length 1147 mm
• Machine base workspace width 589 mm
• Max. distance spindle to clamping table 850 mm
• Min. distance spindle to clamping table 50 mm
• Net weight 1800 kg
• Number of gears 12
• Quill feed gears 3
• Quill feed speed 0.05 – 0.15 mm/rev
• Quill stroke 230 mm
• Spindle chuck MT 4
• Spindle motor power 2.25 kW
• Supply voltage 400 V
• Total rated value 4 kW
• Width 745 mm
• X-axis travel 820 mm
• Z-axis travel 570 mm

• worktable
