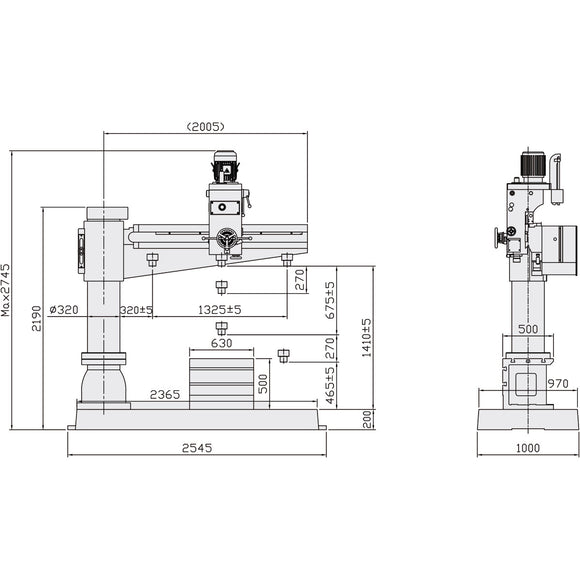

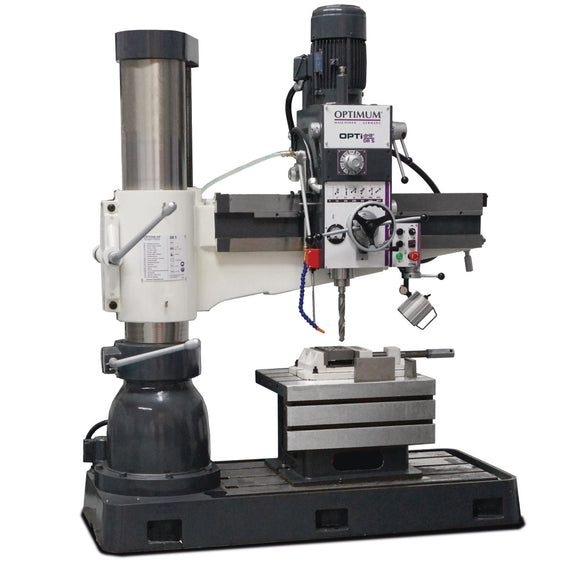

Radial drill OPTIdrill RD 6

• 44 - 1023 min¯¹
• Boom angle of rotation 180 °
• Boom lift motor drive output 1,5 kW
• Clamping table height 500 mm
• Clamping table length 630 mm
• Clamping table width 500 mm
• Column diameter 320 mm
• Continuous drilling performance (steel) 45 mm
• Coolant pump drive motor output 90 W
• Drilling performance (steel) 50 mm
• Frequency 50 Hz
• Height 2760 mm
• Hydraulic clamping drive 0,75 kW
• Length 2670 mm
• Machine base workspace length 2550 mm
• Machine base workspace width 970 mm
• Max. distance spindle to clamping table 910 mm
• Min. distance spindle to clamping table 0 mm
• Net weight 3200 kg
• Number of gears 12
• Quill feed gears 3
• Quill feed speed 0.06 – 0.2 mm/rev
• Quill stroke 270 mm
• Spindle chuck MT 5
• Spindle motor power 4 kW
• Supply voltage 400 V
• Total rated value 6.5 kW
• Width 1120 mm
• X-axis travel 1250 mm
• Z-axis travel 680 mm

• worktable
