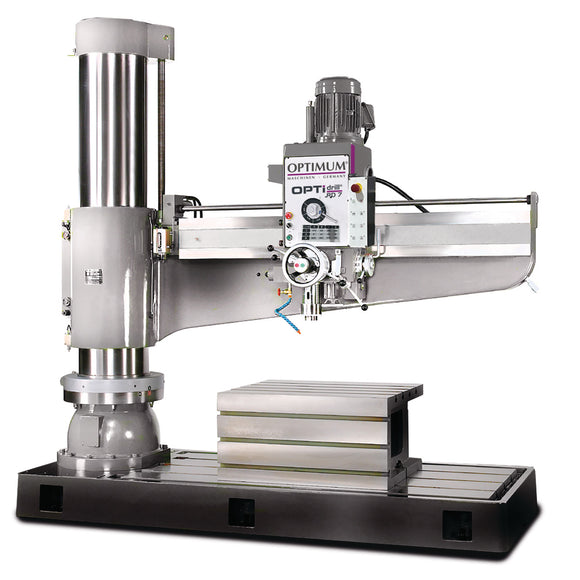

Radial drill OPTIdrill RD 7

• 29 - 1575 min¯¹
• Boom angle of rotation ± 180 °
• Boom lift motor drive output 1,5 kW
• Clamping table height 500 mm
• Clamping table length 1000 mm
• Clamping table width 800 mm
• Column diameter 432 mm
• Coolant pump drive motor output 0,09 kW
• Drilling performance (steel) 70 mm
• Frequency 50 Hz
• Height 3050 mm
• Hydraulic clamping drive 0,75 kW
• Length 3050 mm
• Net weight 5600 kg
• Number of gears 12
• Quill feed speed 0.07 – 0.96 mm/rev
• Quill stroke 370 mm
• Spindle chuck MT 5
• Spindle motor power 5.6 kW
• Supply voltage 400 V
• Total rated value 11 kW
• Width 1185 mm
• X-axis travel 1185 mm
• Y-axis travel 1000 mm
