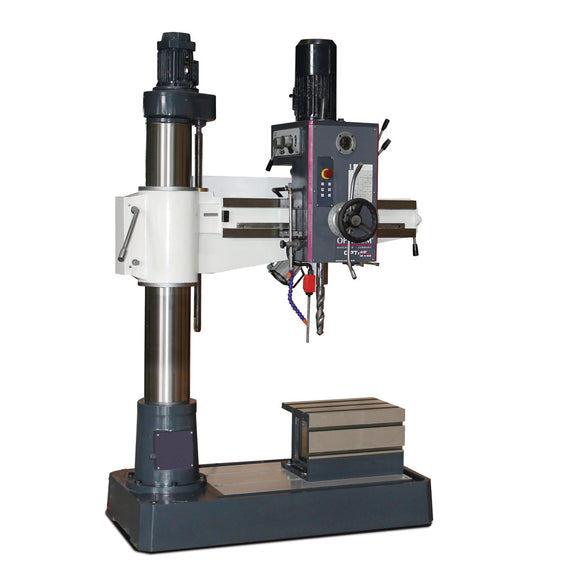

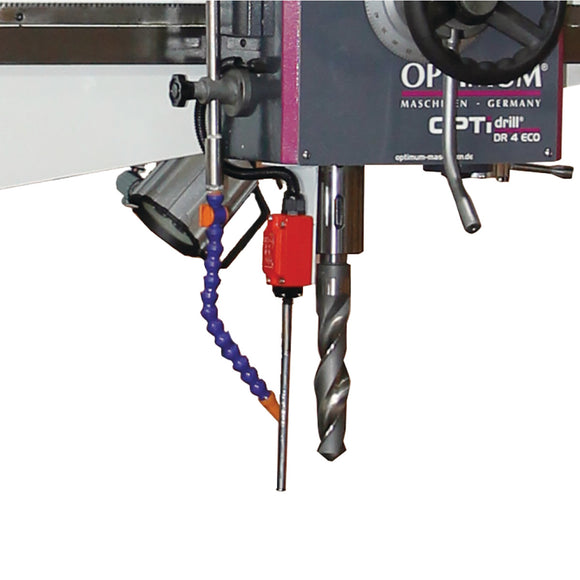

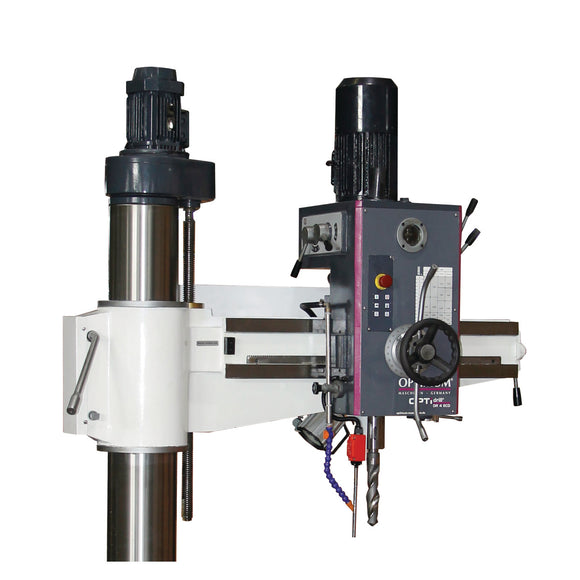

Radial drill OPTIdrill RD 4E

• 75 - 1220 min¯¹
• Boom lift motor drive output 0,75 kW
• Clamping table height 300 mm
• Clamping table length 460 mm
• Clamping table width 320 mm
• Continuous drilling performance (steel) 32 mm
• Drilling performance (steel) 35 mm
• Frequency 50 Hz
• Height 2200 mm
• Length 1550 mm
• Machine base workspace length 1400 mm
• Machine base workspace width 700 mm
• Max. distance spindle to clamping table 1000 mm
• Min. distance spindle to clamping table 260 mm
• Net weight 800 kg
• Number of gears 6
• Quill feed gears 3 Steps
• Quill feed speed 0.1 – 0.25 mm/rev
• Quill stroke 200 mm
• Spindle chuck MT 4
• Spindle motor power 2.2 kW
• Supply voltage 400 V
• Width 750 mm
• X-axis travel 570 mm
• Z-axis travel 500 mm

• Clamping table
• Morse taper MK4-MK3, MK4-MK2
