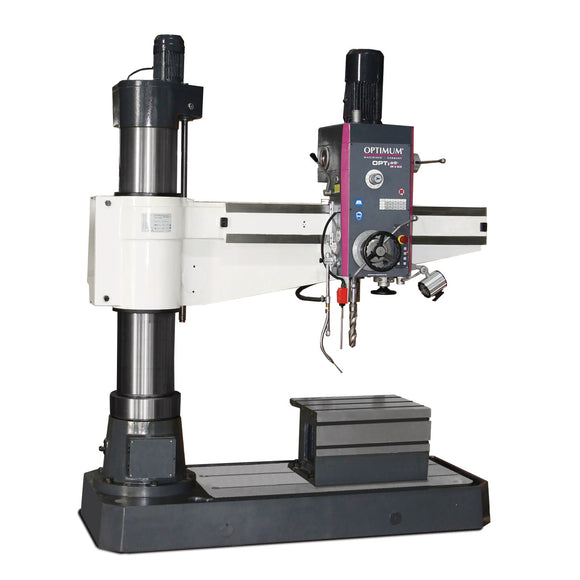

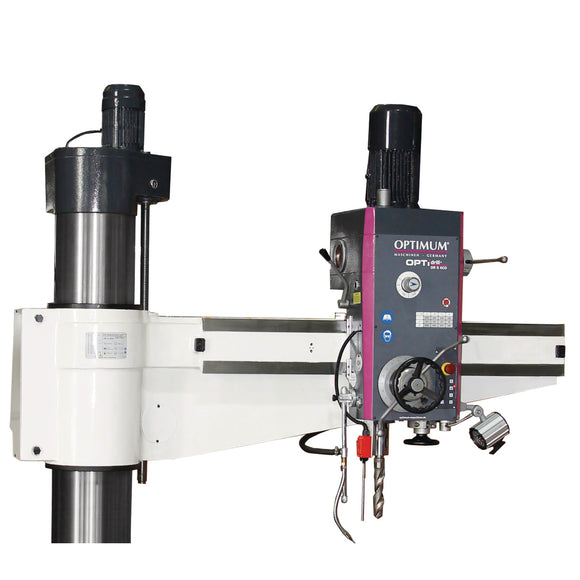

Radial drill OPTIdrill RD 5E

• 40 - 1896 min¯¹
• Boom lift motor drive output 0,75 kW
• Clamping table height 370 mm
• Clamping table length 600 mm
• Clamping table width 450 mm
• Continuous drilling performance (steel) 40 mm
• Drilling performance (steel) 45 mm
• Frequency 50 Hz
• Height 2450 mm
• Length 2045 mm
• Max. distance spindle to clamping table 1210 mm
• Min. distance spindle to clamping table 370 mm
• Net weight 2200 kg
• Number of gears 12
• Spindle chuck MT 4
• Spindle motor power 2.2 kW
• Supply voltage 400 V
• Width 800 mm
• X-axis travel 1000 mm
• Z-axis travel 680 mm

• Clamping table
• Morse taper MK4-MK3, MK4-MK2
