Magnetic core drill OPTIdrill DM 35PF

€1.228,77 EUR (€999,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3071435 Barcode: 4030635038716

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out

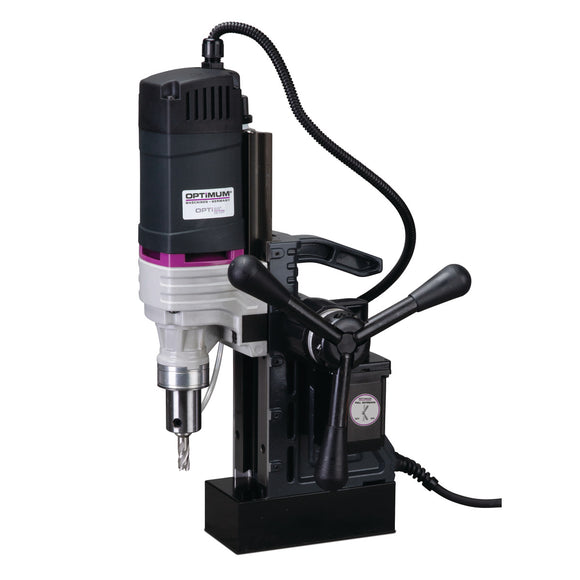

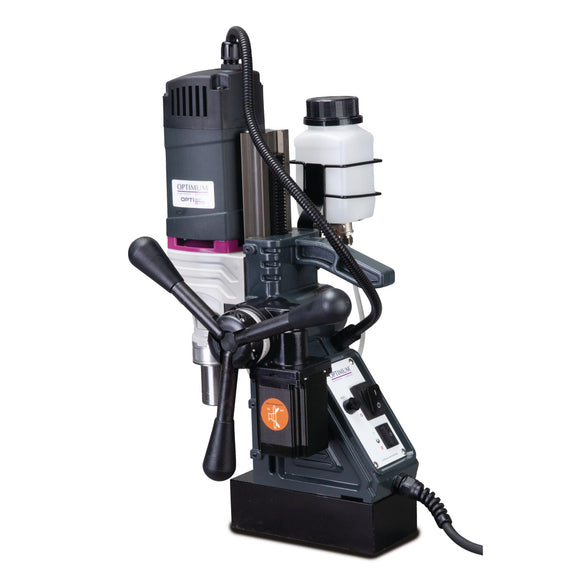

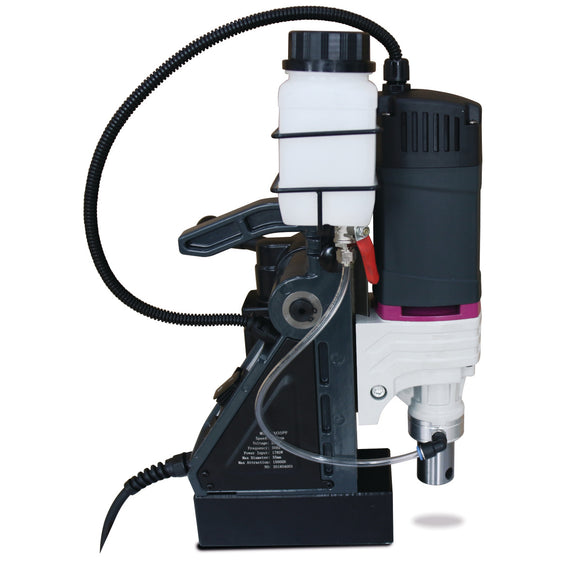

Magnetic core drill OPTIdrill DM 35PF.
  • Stable drill guide due to long and low-mounted sleeve holder
  • Devices are grounded with dual insulation, and are thus ideal for the construction site
  • High magnetic holding force
  • Soft start is gentle on the motor and extends the service life

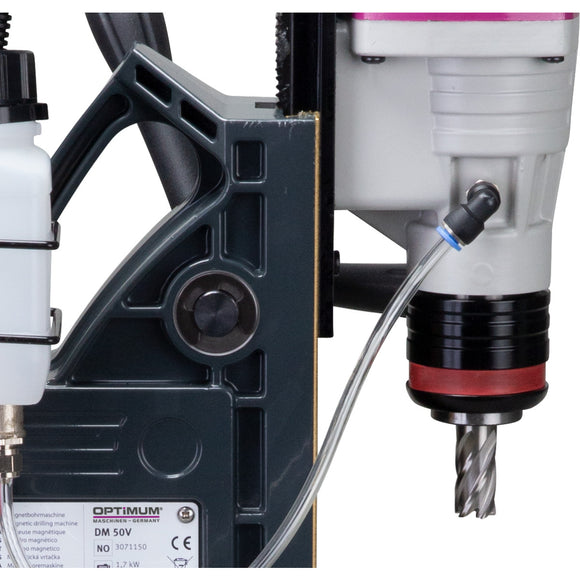

  • Automatic internal lubrication, the coolant is fed directly to the core drill tip
  • High quality design
  • Conversion from core to full drilling in just a few steps
  • Internal self-lubricating function guarantees a longer transmission service life.
  • Magnetic base has a wear-resistant design to enhance the service life of the magnetic base and thus extend the maximum magnetic holding force
DM 35PF
  • Sleeve feed
  • Automatic return to starting position

Equipment details:

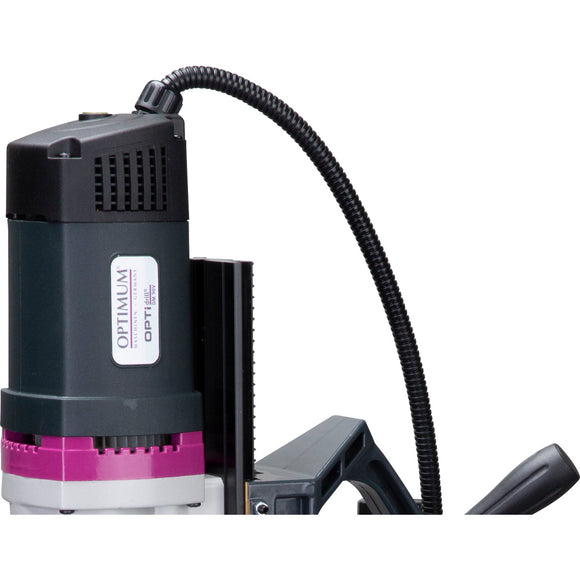

Motor
  • Powerful motor with high torque, low maintenance

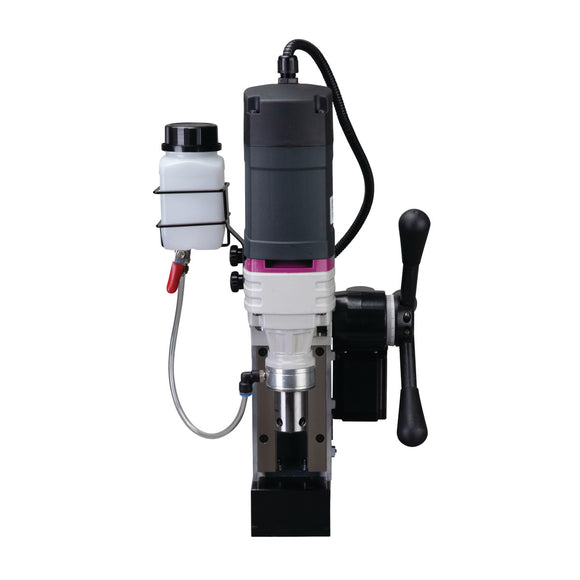

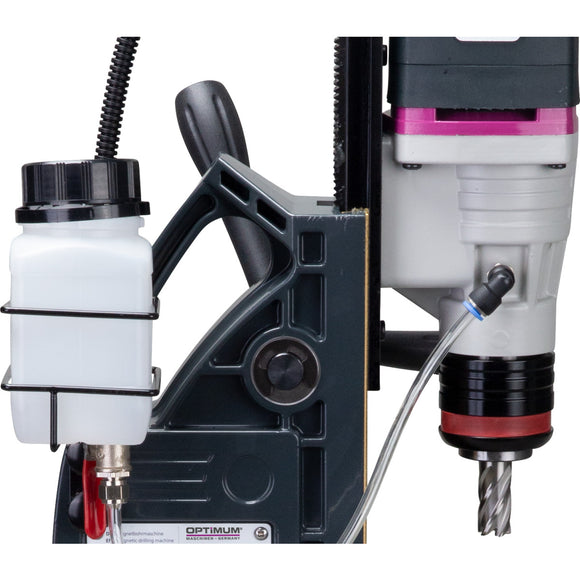

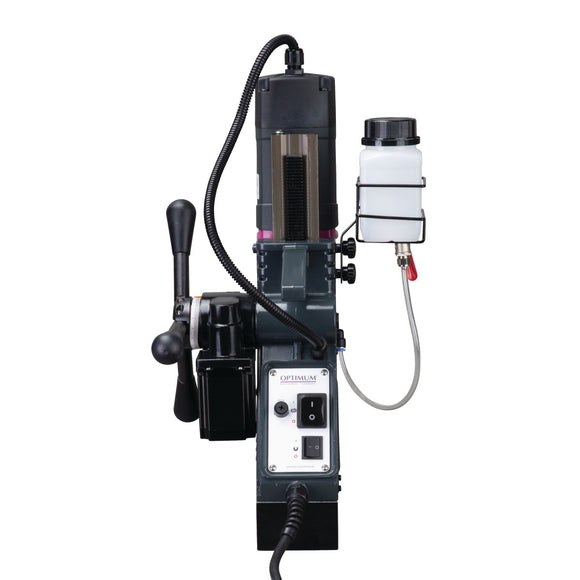

Coolant tank
  • Removable coolant tank
  • External fastening
  • Carefully considered und practical
Guides
  • Safe guides for stability and precision
Housing
  • Compact and rugged

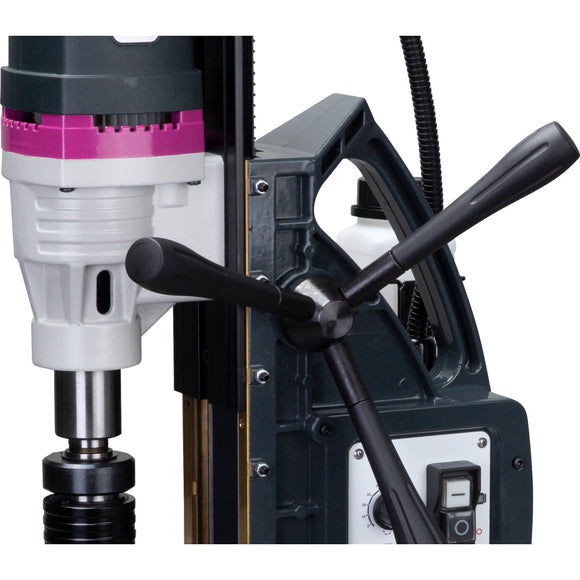

Handles
  • Ergonomic, robust handles for "balanced" holding/fastening of the machine
  • Robust crank
DM 35PF only
  • Sleeve feed
  • Controlled return to starting position


.
  • Absorbed motor power 1.6 kW
  • Drill adapter Weldon 3/4"
  • EMV-Class C2
  • Frequency 50 Hz
  • Height 430 mm
  • Idle speed (CW) 810 min¯¹
  • Length 350 mm
  • Magnet base length 166 mm
  • Magnet base width 80 mm
  • Magnetic force 16 kN
  • Max. core drill diameter 35 mm
  • Max. drilling depth 35 mm
  • Net weight 14 kg
  • Protection class IP 42
  • Spindle chuck fixed
  • Supply voltage 230 V
  • Width 250 mm
  • Coolant tank
  • Safety strap
  • Tool

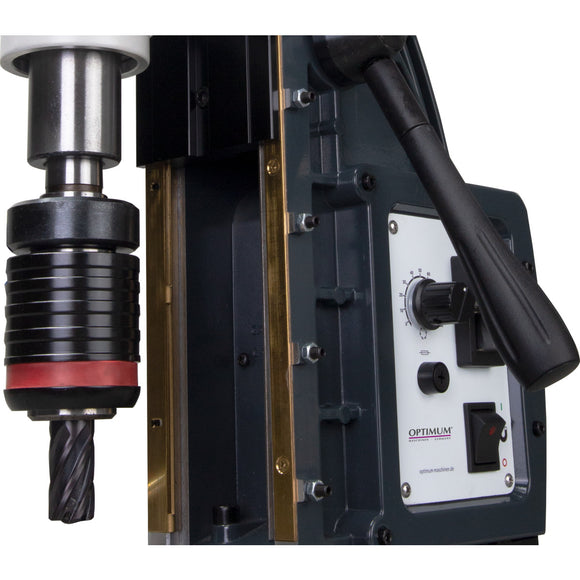

  • quick-change drill chuck
