Optimum OPTIgrind GU 20S Universal Grinding Machine (230 V) media thumbnails

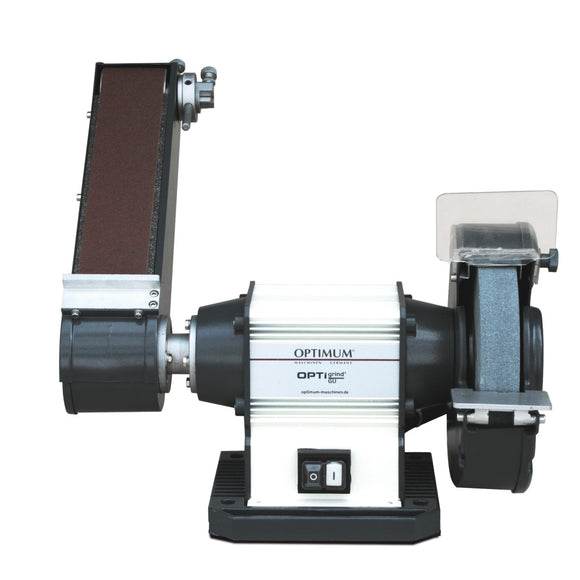

Optimum OPTIgrind GU 20S universal grinder with a sanding belt on the left and a grinding wheel with spark guard on the right
Optimum OPTIgrind GU 20S Universal Grinding Machine (230 V)-2
Optimum OPTIgrind GU 20S Universal Grinding Machine (230 V)-3
Optimum OPTIgrind GU 20S Universal Grinding Machine (230 V)-4
Optimum OPTIgrind GU 20S Universal Grinding Machine (230 V)-5
Optimum OPTIgrind GU 20S Universal Grinding Machine (230 V)-6

Optimum OPTIgrind GU 20S Universal Grinding Machine (230 V)

€498,15 EUR

Tax includedShipping calculated at checkout

SKU: 3101570 Barcode: 4030635028878

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

In stock!

Contact us about this product

Paying with a business card? Please contact our manager, who will assist you with your purchase | +353 (0) 9064 32000

The Optimum OPTIgrind GU 20S is a 230 V universal grinding machine with a 0.6 kW maintenance-free motor, a Ø 200 × 30 mm grinding wheel on one side and a 762 × 75 mm sanding belt on the other. The belt attachment swivels from 0° to 90°, so you can sand flat faces, edges and angles without changing machines. Workshops can rough-grind tools with the wheel and finish surfaces with the belt, and adjust belt tracking by hand without tools. A fine K80 grinding wheel and a K80 sanding belt are included.

Key features

  • Robust, stable universal grinder with a grinding wheel and sanding belt for a wide range of materials
  • Heavy, durable industrial design with a maintenance-free motor
  • Housing made of extruded aluminium
  • Large, heavy mounting flanges for high wheel concentricity

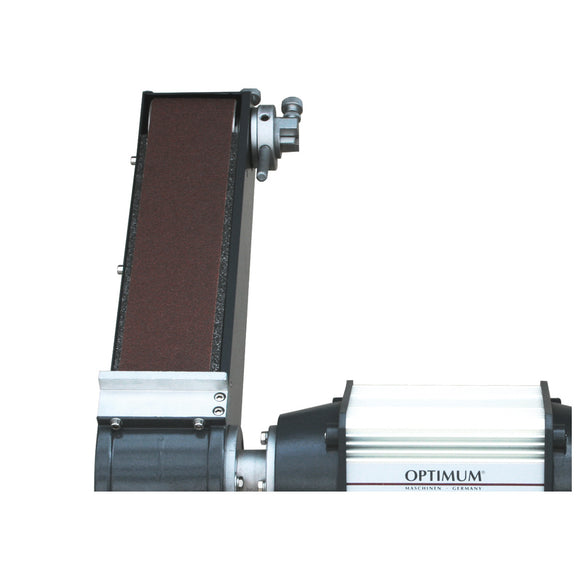

  • Sanding attachment with graphite coating, which prevents friction and heat
  • Sanding attachment swivels 0° to 90° via the flange
  • Belt tracking adjusted without tools, with a hand screw
  • Stop for quick and easy sanding of workpieces

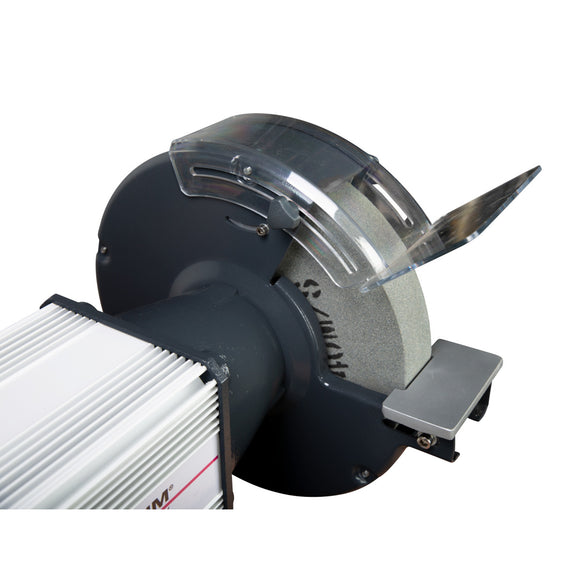

  • Grinding wheel with a stable workpiece support surface and adjustable spark protection
  • Fine K80 normal corundum grinding wheel and K80 sanding belt included as standard

Technical specifications

Grinding wheel

  • Grinding wheel outer diameter: 200 mm
  • Grinding wheel width: 30 mm
  • Grinding wheel bore: 32 mm
  • Speed: 2850 min⁻¹

Sanding attachment

  • Sanding belt dimensions: 762 × 75 mm
  • Attachment swivel range: 0° to 90°
  • Support surface: 180 × 87 mm
  • Extraction connection: 32 mm

Drive and electrical

  • Drive motor power: 0.6 kW
  • Supply voltage: 230 V, 50 Hz

Dimensions and weight

  • Length: 501 mm
  • Width: 261 mm
  • Height: 459 mm
  • Net weight: 20.7 kg
  • 1 normal corundum grinding wheel, fine, grit K80

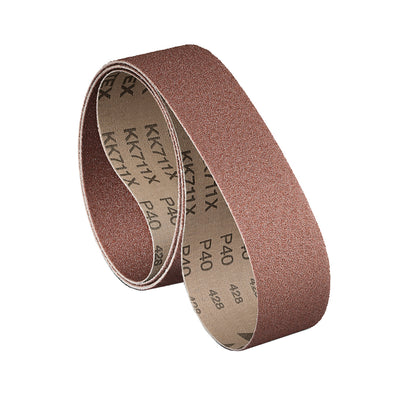

  • 1 normal corundum sanding belt, fine, grit K80
