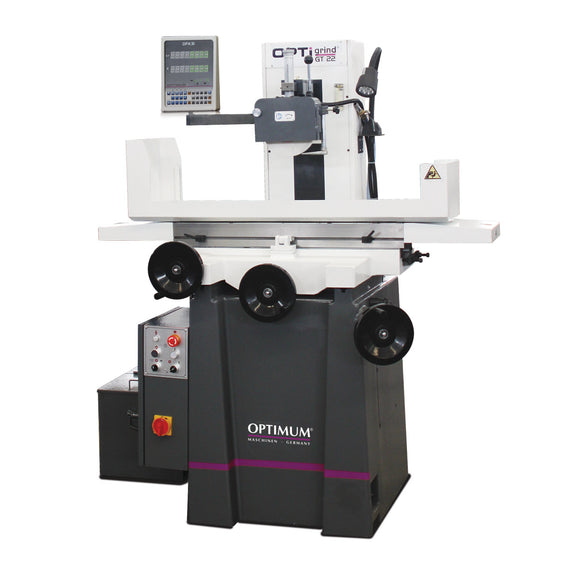

Surface grinding machine OPTIgrind GT 22

• Alignment feet ✔
• Coolant device 40 W
• Frequency 50 Hz
• Grinding disc drill hole 31,75 mm
• Grinding disc outer diameter 200 mm
• Grinding disc peripheral speed 33 m/s
• Grinding disc width 20 mm
• Height 1700 mm

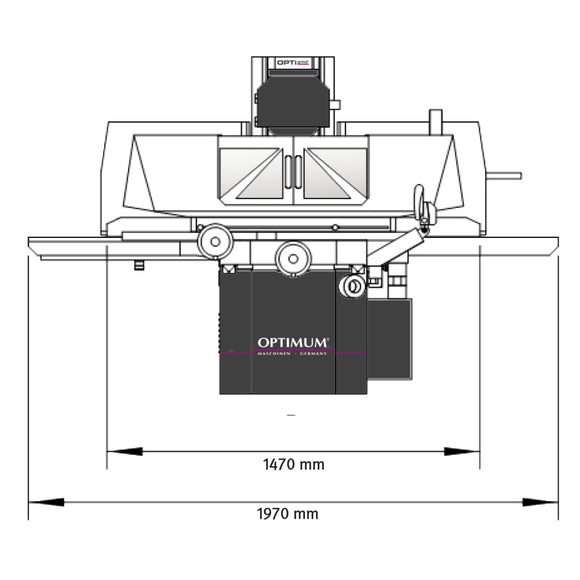

• Length 1970 mm
• Max. clearance spindle to surface grinding table 450 mm
• Motor power 1,5 kW
• Net weight 850 kg
• Parallel hone device ✔
• Spindle speed 2850 min¯¹
• Spindle true running accuracy 0.005 mm
• Supply voltage 400 V
• Surface grinding table Workpiece height 350 mm
• Surface grinding table clamping surface length 200 mm
• Surface grinding table clamping surface width 500 mm
• Surface grinding table max. weight workpiece 128 kg
• Width 1300 mm
• X-axis travel 500 mm
• Z-axis travel 240 mm
• x axis travel speed Manual

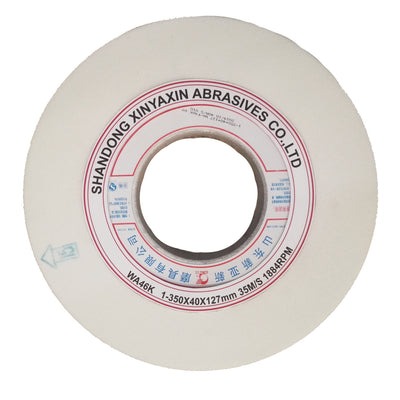

• Grinding wheel Grain 46
• LED lamp
• Coolant device with coolant tank

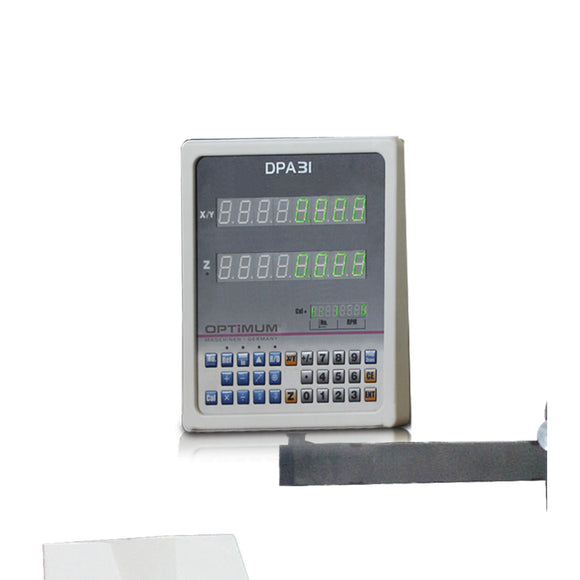

• Digital position display

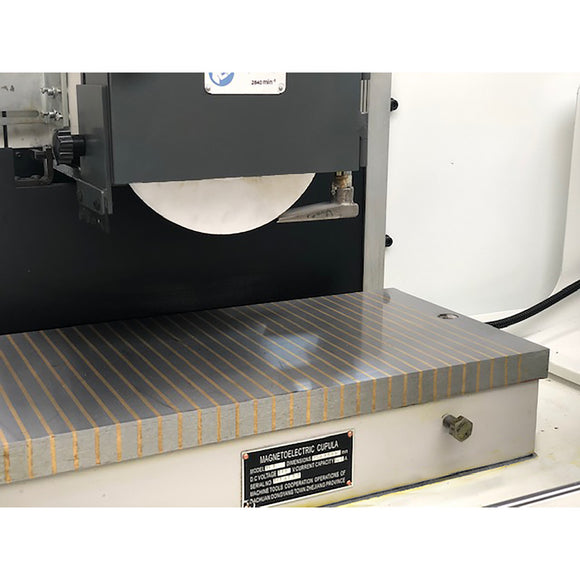

• Permanent magnet
• Balancing mandrour
• Pulling device with fine delivery
• Alignment feet
• Grinding table handwheel longitudinal drive
• Grinding table handwheel cross delivery
• Grinding head handwheel vertical delivery
• Operating tool
