Surface grinding machine OPTIgrind GT 40

€43.652,70 EUR (€35.490,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3111040 Barcode: 4030635041181

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

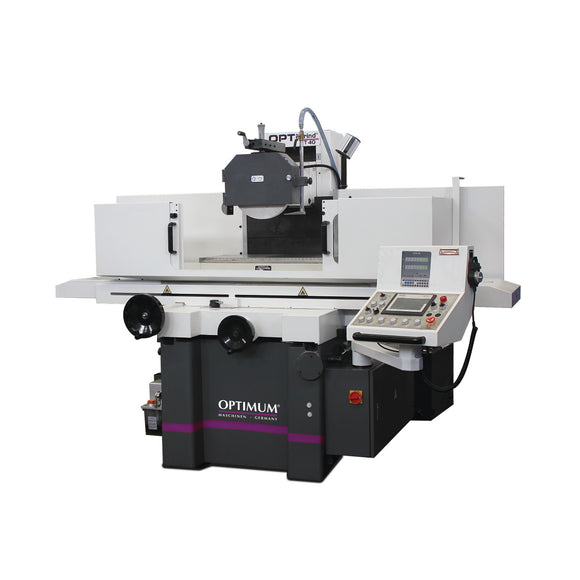

Surface grinding machine OPTIgrind GT 40.
  • Electromagnetic clamping plate for fixing the workpiece with automatic demagnetization function
  • High-quality spindle with precision taper roller bearings
  • Hardened and ground table guideways
  • Turcite-B-coated counter-guides for high wear resistance and low friction

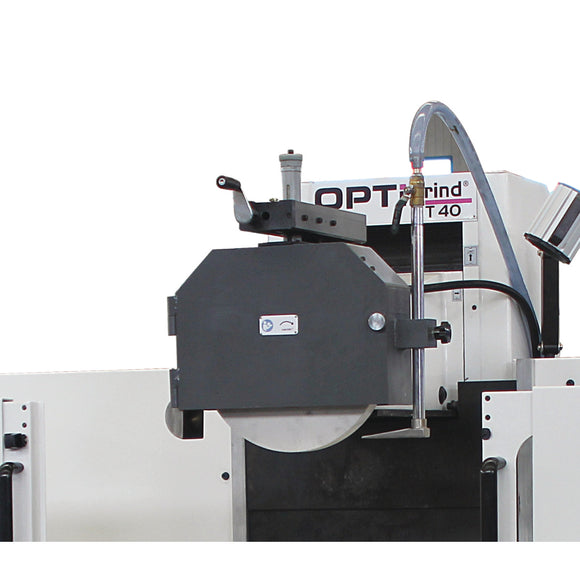

  • Grinding spindle with high-quality precision bearings
    • Grinding wheel can be resharpened directly on the machine using a puller device

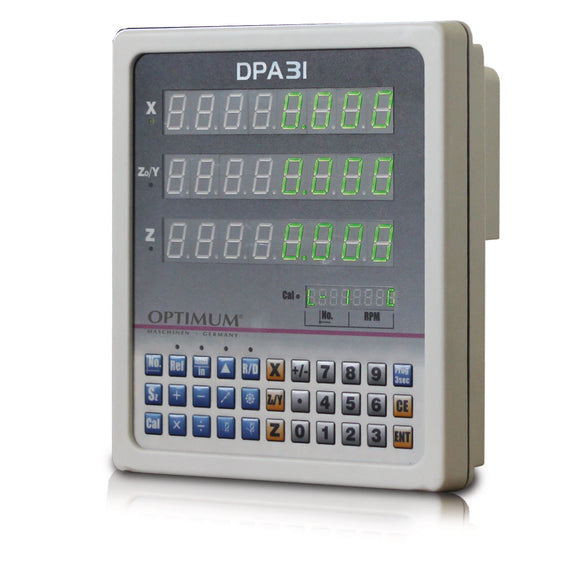

  • Digital position indicator
  • Machine base made of stable, torsion-resistant cast iron for maximum rigidity and stability
  • Guideways of the longitudinal grinding wheel Lateral and vertical movements are backlash-free and self-centering as V- and flat track design
  • Precision ball screws
  • Guideways and transport spindle with central lubrication
  • All flat tracks are finely scraped and thus guarantee highest precision of all manual movements
  • Safety electrical system in voltage

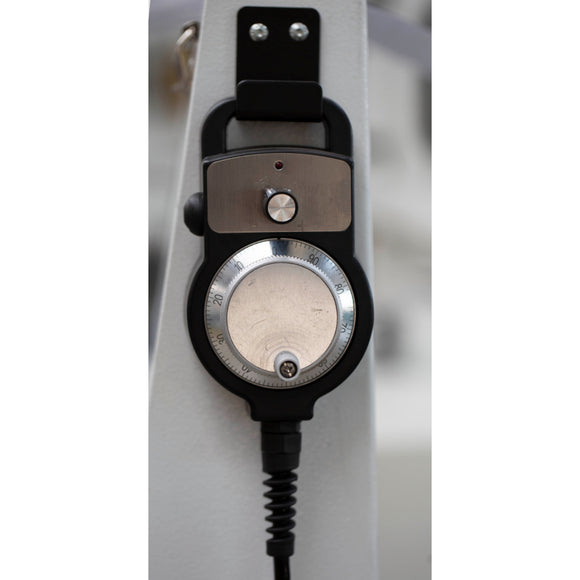

  • Largely dimensioned decoupled handwheels in all three axes
  • Hydraulic lines according to DIN EN 853
  • Grinding accuracy: 0,005 mm
  • Corundum grinding wheel grain 46 for all common steels
  • Swivelling control panel makes work considerably easier
  • Two-channel safety electronics
  • Sanding tableSplash guard
  • Coolant tank capacity 100 liters
  • Digitally controlled automatic vertical feed with servo motor
  • Complex hydraulic system with heat exchanger ensures smooth table repositioning even with high table loads
  • EMV filter class
  • With IE3 motor - consumes considerably less energy and therefore significant cost savings


.
  • Alignment feet ✔
  • Coolant device 125 W
  • Frequency 50 Hz
  • Grinding disc drill hole 127 mm
  • Grinding disc outer diameter 350 mm
  • Grinding disc peripheral speed 27 m/s
  • Grinding disc width 40 mm
  • Height 1900 mm
  • Hydraulic pump motor output 2,2 kW
  • Length 3600 mm
  • Max. clearance spindle to surface grinding table 580 mm
  • Motor power 4 kW
  • Net weight 3600 kg
  • Parallel hone device ✔
  • Spindle speed 1450 min¯¹
  • Spindle true running accuracy 0.005 mm
  • Supply voltage 400 V
  • Surface grinding table Workpiece height 405 mm
  • Surface grinding table clamping surface length 400 mm
  • Surface grinding table clamping surface width 800 mm
  • Total rated value 7,5 kW
  • Width 2400 mm
  • X-axis travel 765 mm
  • Z-axis travel 340 mm
  • x axis travel speed 5 – 25 m/min
  • Digital position display
  • Coolant device
  • Balancing mandrour
  • Grinding wheel Grain 46
  • Diamond pen
  • Operating tool
  • Time controlled central lubrication
  • LED lamp
  • Electromagnetic clamping plate
  • Demagnetizing function

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Magnet- and paper band filter MPS1 Magnet- and paper band filter MPS1 - 0

Magnet- and paper band filter MPS1

Optimum

€2.926,17 EUR
Enquire
Grinding disc holder Grinding disc holder - 0

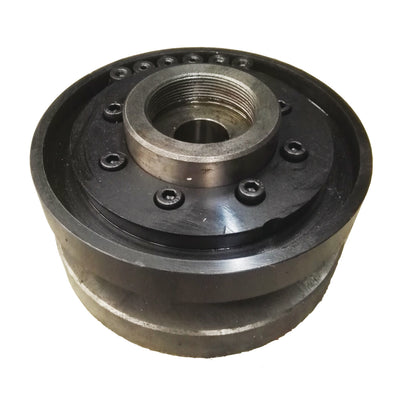

Grinding disc holder

Optimum

€232,47 EUR
Enquire
Workplace mat 1840 x 640 mm Workplace mat 1840 x 640 mm - 0

Workplace mat 1840 x 640 mm

Unicraft

€244,77 EUR
Diamond puller 3/8 x 2“ x 1.00 carat Diamond puller 3/8 x 2“ x 1.00 carat - 0

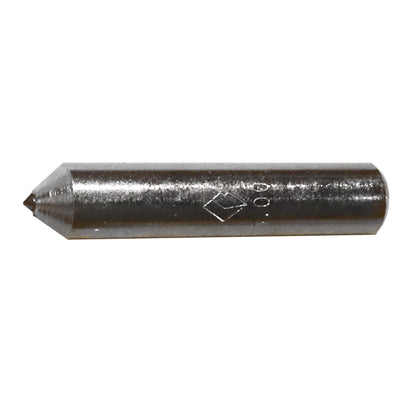

Diamond puller 3/8 x 2“ x 1.00 carat
