Metal band saw OPTIsaw S 100G media thumbnails
Metal band saw OPTIsaw S 100G-1
Metal band saw OPTIsaw S 100G-2

Metal band saw OPTIsaw S 100G

€768,75 EUR (€625,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3184230 Barcode: 4030635050848

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out

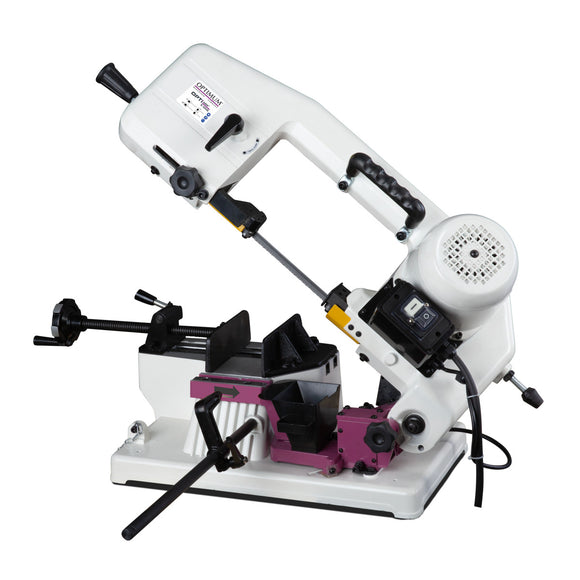

Metal band saw OPTIsaw S 100G.
  • Quick clamping vice for fast workpiece clamping
  • Saw bow can be swivelled from 0° to 45°, to enable angular saw cuts
  • Good readable scale for angle adjustment
  • Microswitch for automatic limit switch
  • Automatic lowering of the saw bow via three-stage adjustable saw bow lowering pressure
  • Serially with high-quality bi-metal saw band
  • Large, handy handle and low weight enable problem-free transport to the construction site
  • Adjustable material stop for serial work
  • Completely equipped, enabling the user to work productively immediately after commissioning
  • Transport security


.
  • Cutting angle from to 0 - 45 °
  • Cutting range +45° rectangular upright (solid material) 60 x 100 mm
  • Cutting range +45° round (full material) 65 mm
  • Cutting range +45° square (solid material) 60 mm
  • Cutting range 0° rectangular upright (solid material) 100 x 150 mm
  • Cutting range 0° round (solid material) 100 mm
  • Cutting range 0° square (solid material) 100 mm
  • Frequency 50 Hz
  • Height 805 mm
  • Length 800 mm
  • Max. width/depth approx.. 660 mm
  • Motor power 0.37 kW
  • Net weight 27,5 kg
  • Saw band length 1470 mm
  • Saw band speed(s) 49 m/min
  • Saw band thickness 0,65 mm
  • Saw band width 13 mm
  • Supply voltage 230 V
  • Width 300 mm
  • Material stop
  • Operating tool

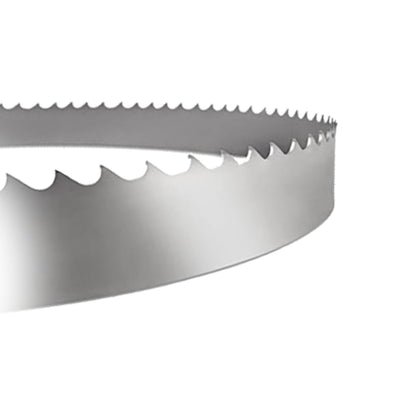

  • Bi-Metal band saw blade
