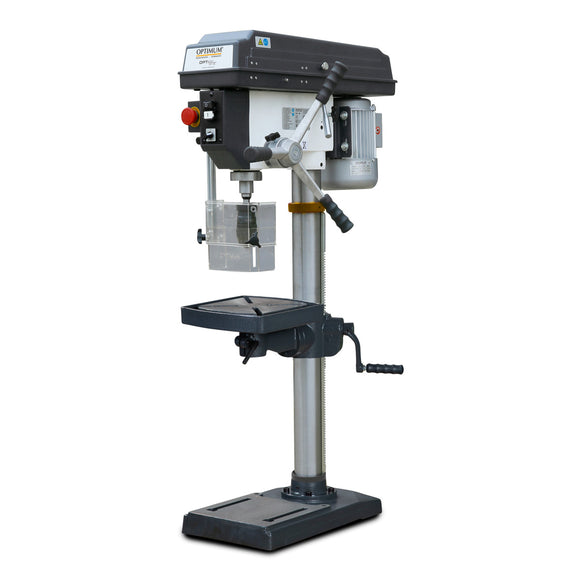

Upright drill OPTIdrill DQ 25T.
  • User-friendly safety switch to IP 54
  • Separate emergency stop switch
  • Measuring scale for drilling depth
  • Precisely machined drill table with diagonal T-slots ± 45° tiltable and 360° rotatable
  • Solid, large base plate with grooves, heavily ribbed on the back
  • Guaranteed concentricity ≤ 0. 03 mm measured in the drill spindle

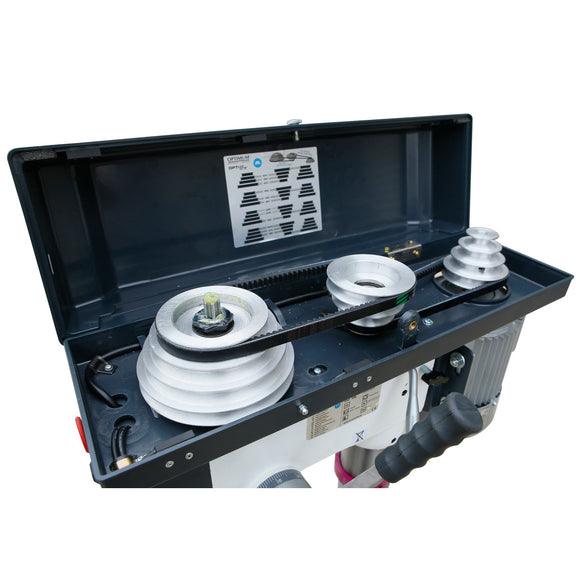

  • V-belt cover with safety switch
  • Right/left rotation


.
  • 200 - 2440 min¯¹
  • Continuous drilling performance (steel) 20 mm
  • Drilling head angle 45 °
  • Drilling head rotation 360 °
  • Drilling performance (steel) 25 mm
  • Drilling table workspace length 280 mm
  • Drilling table workspace width 280 mm
  • Frequency 50 Hz
  • Height 1012 mm
  • Length 700 mm
  • Motor power 0.75 kW
  • Net weight 67 kg
  • Number of gears 12
  • Quill stroke 80 mm
  • Reach 181 mm
  • Spindle chuck MT 3
  • Supply voltage 400 V
  • Width 350 mm
  • Quick-action drill chuck 1-16 mm
  • Taper arbor for drill chuck
  • T-nuts

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Workplace mat 3040 x 940 mm Workplace mat 3040 x 940 mm - 0

Workplace mat 3040 x 940 mm

Unicraft

€633,45 EUR
Enquire
Workplace mat 3040 x 640 mm Workplace mat 3040 x 640 mm - 0

Workplace mat 3040 x 640 mm

Unicraft

€441,57 EUR
Enquire
Workplace mat 1840 x 940 mm Workplace mat 1840 x 940 mm - 0

Workplace mat 1840 x 940 mm

Unicraft

€375,15 EUR
Enquire
Workplace mat 1840 x 640 mm Workplace mat 1840 x 640 mm - 0

Workplace mat 1840 x 640 mm

Unicraft

€244,77 EUR
Upright drill OPTIdrill DQ 25T promotional offer set Upright drill OPTIdrill DQ 25T promotional offer set - 0

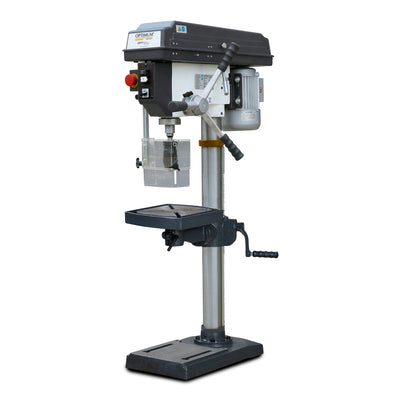

Upright drill OPTIdrill DQ 25T promotional offer set
