Upright drill OPTIdrill DQ 32 Special offer set incl. vice

€1.355,46 EUR (€1.102,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3191049SET Barcode: 4036351339120

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

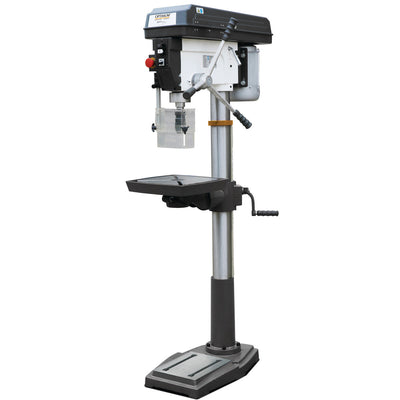

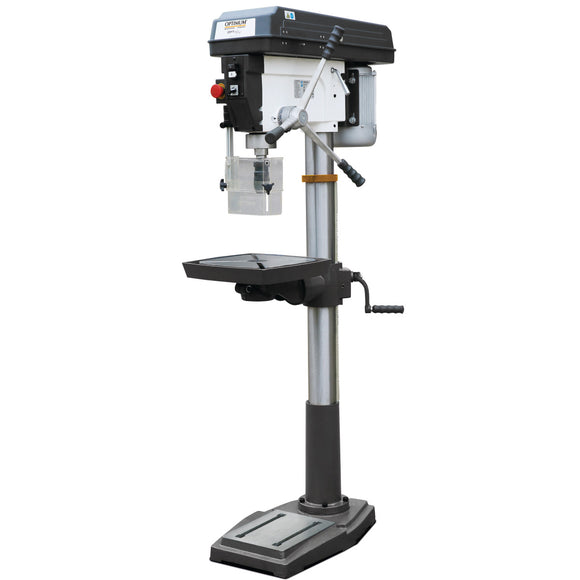

Upright drill OPTIdrill DQ 32.

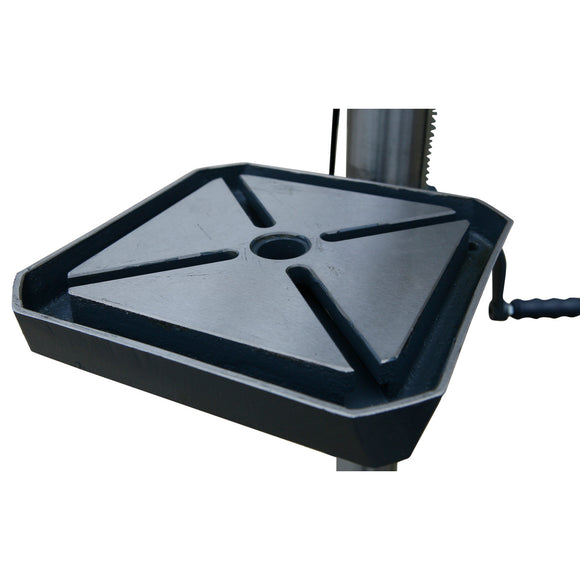

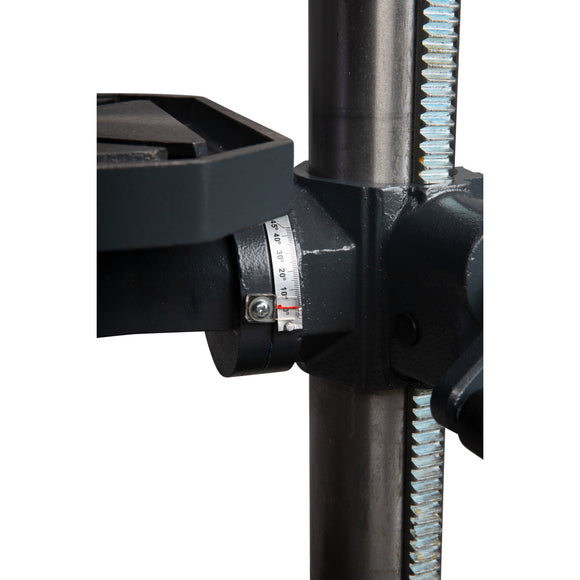

  • Precisely machined drilling table, ± 45° sideways tiltable and 360° rotatable
  • Massive, large dimensioned base plate with grooves, heavily ribbed at the backside
  • Ground multi-tooth driver

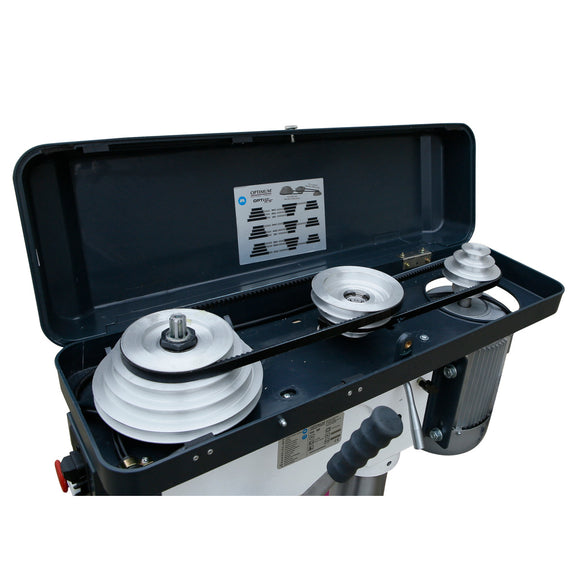

  • Best power transmission through aluminium pulleys in combination with toothed GATES quality V-belt
  • Guaranteed concentricity accuracy better than 0. 03 mm measured in the drill spindle
  • Drill spindle with precision ball bearing
  • Quick action drill chuck as standard equipment
  • Belt cover with safety switch
  • Easy to use switch according to IP 54
  • Separate emergency stop pushbutton switch


.
  • 120 - 1810 min¯¹
  • Column diameter 92 mm
  • Continuous drilling performance (steel) 25 mm
  • Drilling performance (steel) 30 mm
  • Drilling table angle 45 °
  • Drilling table load bearing capacity 55 kg
  • Drilling table rotation 360 °
  • Drilling table workspace length 355 mm
  • Drilling table workspace width 355 mm
  • Frequency 50 Hz

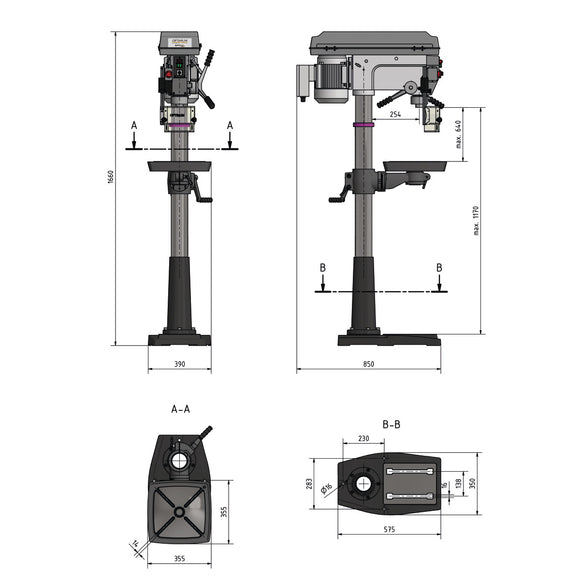

  • Height 1660 mm
  • Length 850 mm
  • Machine base workspace length 575 mm
  • Machine base workspace width 350 mm
  • Motor power 1,1 kW
  • Net weight 128 kg
  • Number of gears 9
  • Quill stroke 120 mm
  • Reach 254 mm
  • Spindle chuck MT 4
  • Supply voltage 400 V
  • Width 390 mm
  • Quick action drill chuck 1 - 16 mm
  • T-nuts
  • Morse taper MK 3/B16 (DQ 25)
  • Morse taper MK 4/B16 (DQ 32)
  • drift punch
  • Vice BME 150

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.
