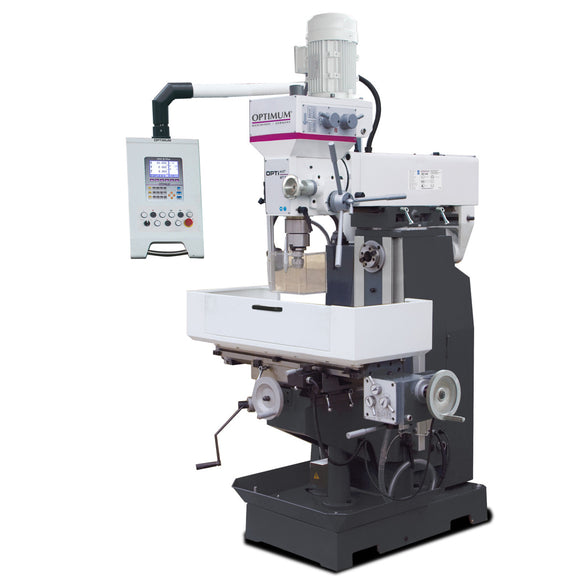

Drilling-milling machine OPTImill MT 50

• Continuous drilling performance (steel) 25 mm
• Coolant pump(s) drive power 40 W
• Digital position indicator DPA 31 Plus
• Drilling performance (steel) 30 mm
• Frequency 50 Hz
• Height 2170 mm
• Horizontal milling table length 1000 mm
• Horizontal milling table max. load bearing capacity 160 kg
• Horizontal milling table width 240 mm
• Horizontal spindle drive motor output 1,5 kW
• Horizontal spindle gear 60 – 1350 min¯¹
• Horizontal spindle number of gears 9
• Horizontal spindle reach 0 – 185 mm
• Horizontal spindle spindle chuck ISO 40 DIN 2080
• Length 1290 mm
• Max. size milling head 100 mm
• Max. size shaft milling cutter 25 mm
• Mill head swivel range ± 45 °
• Net weight 820 kg
• Supply voltage 400 V
• Total rated value 4,5 kW
• Travel X axis automatic 500 mm
• Vertical spindle drive motor output normal operation 1.1 / 2.2 kW
• Vertical spindle number of gears 8
• Vertical spindle quill stroke 120 mm
• Vertical spindle reach from to 240 – 650 mm
• Vertical spindle speed range 115 – 1750 min¯¹
• Vertical spindle spindle chuck ISO 40 DIN 2080
• Width 1090 mm
• X axis feed speed 24 – 720 mm/min
• X-axis travel 580 mm
• Y-axis travel 200 mm
• Z-axis travel 340 mm

• Gear rim drill chuck 1 - 16 mm / B 18
• arbor drill chuck ISO40 / B18

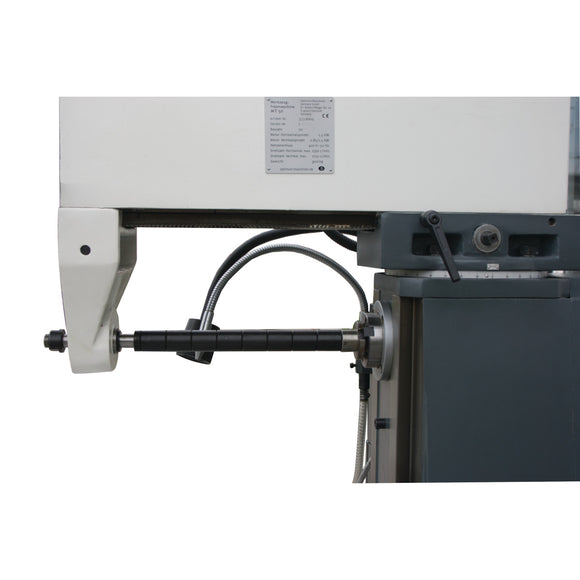

• Horizontal milling spindle with counter bearing, mounting for side milling cutter Ø 22 mm, Ø 27 mm
• Adapter ISO 40/MK3
• Adapter ISO 40/MK2
• Vertical and horizontal tightening rod
• T-nuts
• Ejector
• Operating tool
