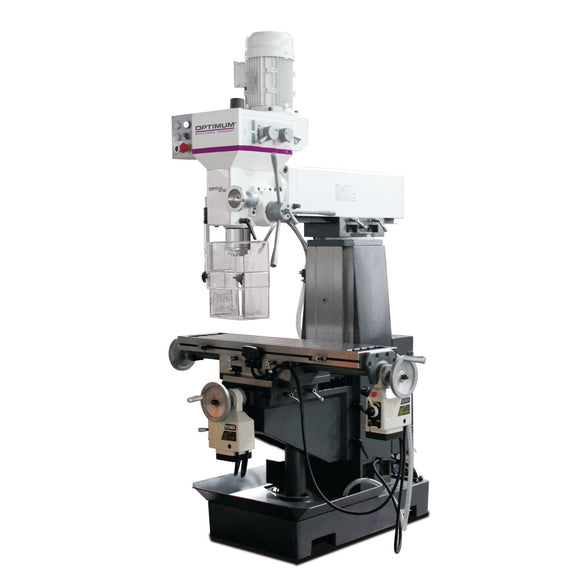

Drilling-milling machine OPTImill MT 50E

• Continuous drilling performance (steel) 25 mm
• Coolant pump(s) drive power 40 W
• Drilling performance (steel) 30 mm
• Frequency 50 Hz
• Height 2080 mm
• Horizontal milling table length 1000 mm
• Horizontal milling table max. load bearing capacity 150 kg
• Horizontal milling table rotation 45 °
• Horizontal milling table width 240 mm
• Length 1360 mm
• Max. size milling head 63 mm
• Max. size shaft milling cutter 25 mm
• Motor power 0.75 / 1.5 kW
• Net weight 760 kg
• Supply voltage 400 V
• Travel X axis automatic 500 mm
• Travel Y axis automatic 150 mm
• Vertical spindle drive motor output normal operation 0.85 / 1.5 kW
• Vertical spindle number of gears 8
• Vertical spindle quill stroke 120 mm
• Vertical spindle reach from to 250 – 650 mm
• Vertical spindle speed range 115 – 1750 min¯¹
• Vertical spindle spindle chuck SK 40 DIN 2080
• Vertical spindle tightening bar M16
• Width 1150 mm
• X-axis travel 580 mm
• Y-axis travel 230 mm
• Z-axis travel 320 mm

• Spider drill chuck 3 - 16 mm / B 18
• arbor drill chuck ISO40 / B18
• T-nuts
• Extractor
• Adapter ISO40- MK 3
• Adapter MK 3-MK 2
• Operating tool
