Universal milling machine OPTImill MT 60

€17.275,35 EUR (€14.045,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3336090 Barcode: 4030635036156

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

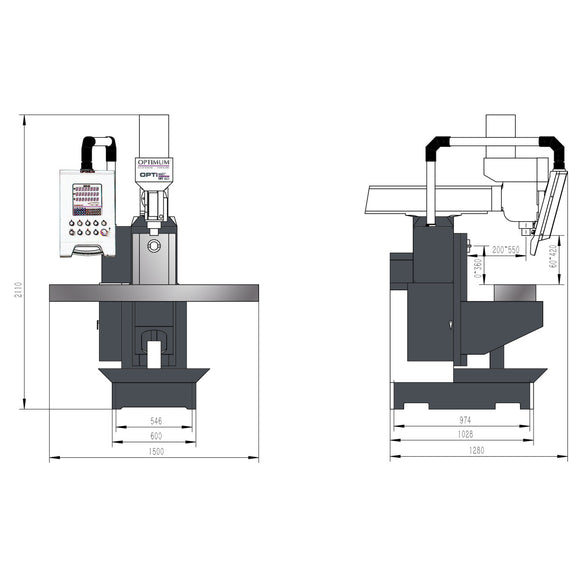

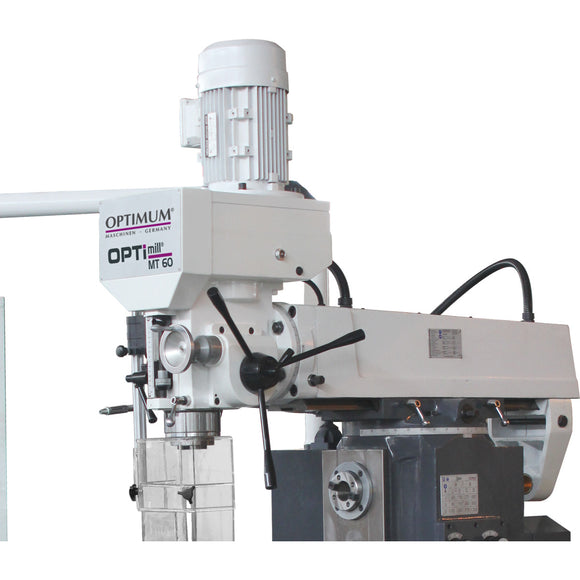

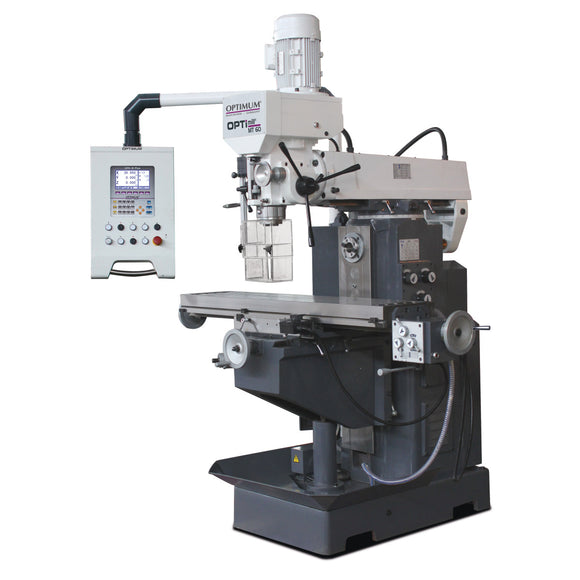

Universal milling machine OPTImill MT 60.
  • Heavy, solid design made from high-quality, vibration-absorbing gray cast iron
  • Solid and generously dimensioned cross table, precisely surface-finished with T-slots and adjustable keyways
  • Automatic quill feed (drilling) activated via the quill feed lever or manual quill feed with the fine feed handwheel
  • Right/left rotation
  • Coolant device
  • X-axis moves either with the handwheel or via the table feed device
  • Height-adjustable protective screen with microswitch, against flying chips and parts, for maximum protection of the user


.
  • Continuous drilling performance (steel) 25 mm
  • Coolant pump(s) drive power 40 W

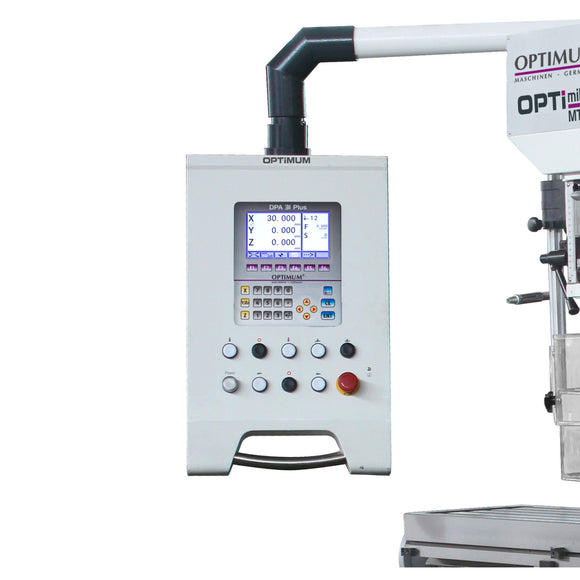

  • Digital position indicator DPA 31 Plus
  • Drilling performance (steel) 30 mm
  • Frequency 50 Hz
  • Height 2160 mm
  • Horizontal milling table length 1270 mm
  • Horizontal milling table max. load bearing capacity 150 kg
  • Horizontal milling table width 280 mm
  • Horizontal spindle drive motor output 2,2 kW
  • Horizontal spindle gear 40 – 1300 min¯¹
  • Horizontal spindle number of gears 9
  • Horizontal spindle reach 35 – 370 mm
  • Horizontal spindle spindle chuck ISO 40 DIN 2080
  • Length 1650 mm
  • Max. size milling head 100 mm
  • Max. size shaft milling cutter 25 mm
  • Net weight 1300 kg
  • Supply voltage 400 V
  • Total rated value 5 kW
  • Travel X axis automatic 680 mm
  • Vertical spindle drive motor output normal operation 2,2 kW
  • Vertical spindle number of gears 8
  • Vertical spindle quill diameter 90 mm
  • Vertical spindle quill feed 0.008 – 0.25 (3 levels) mm/rev
  • Vertical spindle quill stroke 120 mm
  • Vertical spindle reach from to 220 – 550 mm
  • Vertical spindle speed range 90 – 2000 min¯¹
  • Vertical spindle spindle chuck ISO 40 DIN 2080
  • Vertical spindle tightening bar M16
  • Width 1310 mm
  • X-axis travel 750 mm
  • Y-axis travel 230 mm
  • Z-axis travel 360 mm
  • Geared chuck Ø 1 - 16 mm / B16
  • Mandrel Drill chuck ISO40 / B16
  • Adapter ISO40 / MK3
  • Adapter ISO40 / MK2

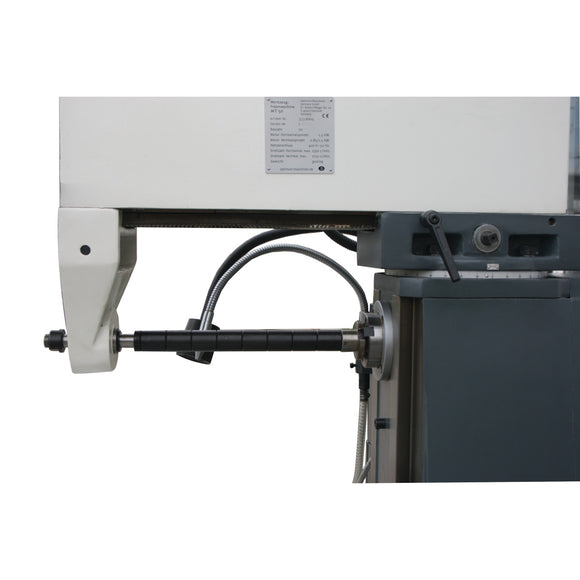

  • Milling spindle Horizontal milling Ø 22 mm
  • Milling spindle Horizontal milling Ø 27 mm
  • Drawbar vertical and horizontal
  • Operating tool

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Horizontal-vertical rotary indexing table with 3-jaw chuck RTE 165 Horizontal-vertical rotary indexing table with 3-jaw chuck RTE 165 - 0

Horizontal-vertical rotary indexing table with 3-jaw chuck RTE 165

Optimum

€1.241,07 EUR
Enquire
Twist Drill Set 41-piece, 6 - 10 mm (0.1 mm rising) Twist Drill Set 41-piece, 6 - 10 mm (0.1 mm rising) - 0

Twist Drill Set 41-piece, 6 - 10 mm (0.1 mm rising)

Optimum

€146,37 EUR
Precision machine vice FMS 125 Precision machine vice FMS 125 - 0

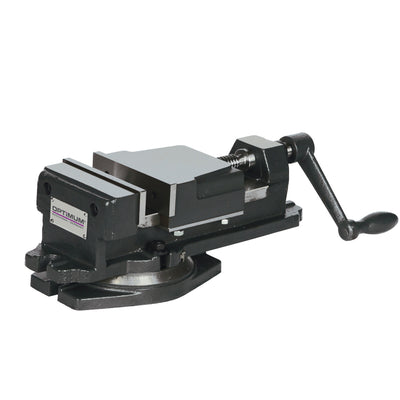

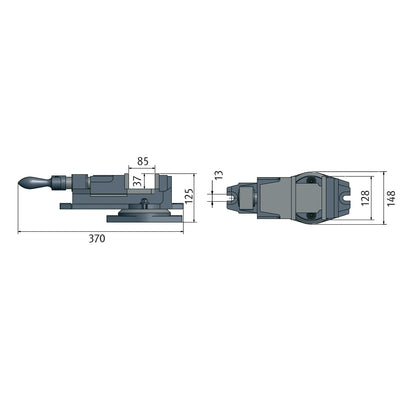

Precision machine vice FMS 125

Optimum

€332,10 EUR
Precision machine foot SEU1 Precision machine foot SEU1 - 0

Precision machine foot SEU1

Optimum

€215,25 EUR
Enquire
Boring Drill Bit Set Boring Drill Bit Set ISO 40 Boring Drill Bit Set Boring Drill Bit Set ISO 40 - 0

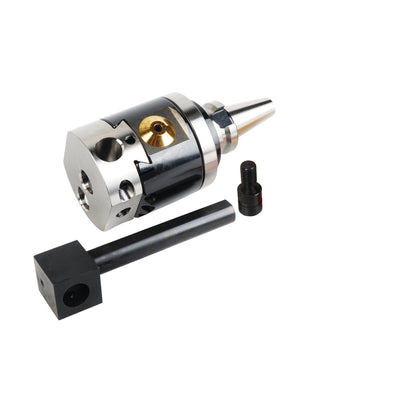

Boring Drill Bit Set Boring Drill Bit Set ISO 40
