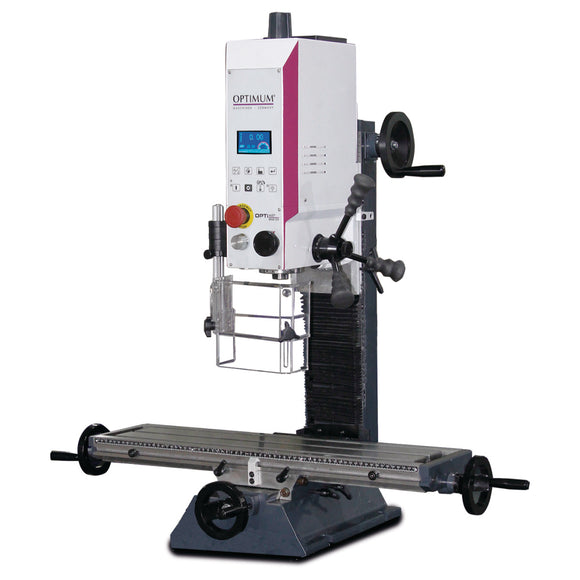

Drilling-milling machine OPTImill MH 2DV

• Continuous drilling performance (steel) 13 mm
• Drilling performance (steel) 16 mm
• Frequency 50 Hz

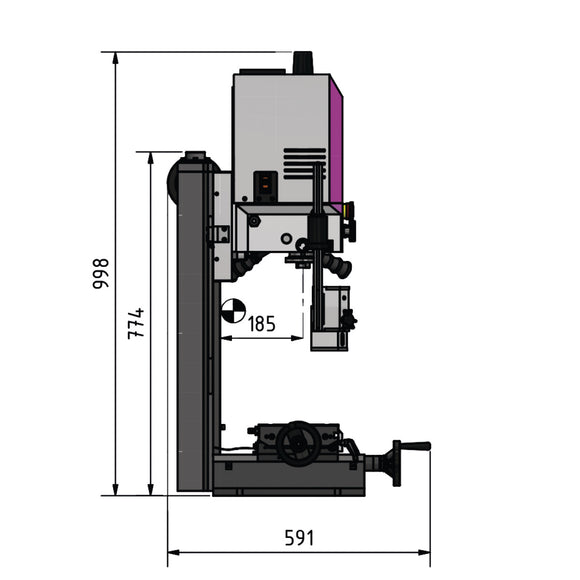

• Height 998 mm

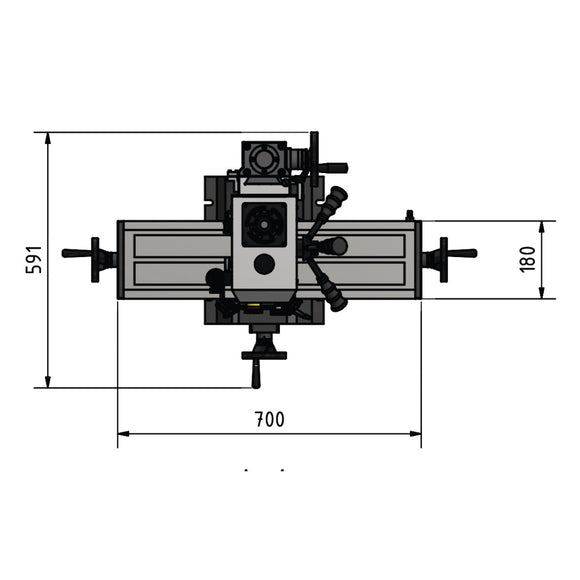

• Horizontal milling table length 700 mm
• Horizontal milling table width 180 mm

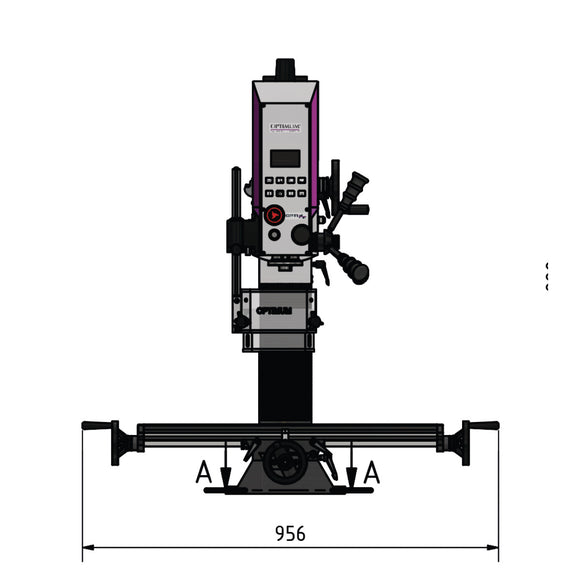

• Length 956 mm
• Max. size milling head 63 mm
• Max. size shaft milling cutter 20 mm
• Mill head swivel range ± 90 °
• Motor power 1.5 kW
• Net weight 118 kg
• Supply voltage 230 V
• Travel X axis automatic 480 mm
• Travel Y axis automatic 175 mm
• Vertical spindle quill diameter 60 mm
• Vertical spindle quill stroke 70 mm
• Vertical spindle reach 185 mm
• Vertical spindle spindle chuck MT 2
• Vertical spindle tightening bar M 10
• Width 591 mm
• X-axis travel 480 mm
• Y-axis travel 175 mm
• Z-axis travel 280 mm
