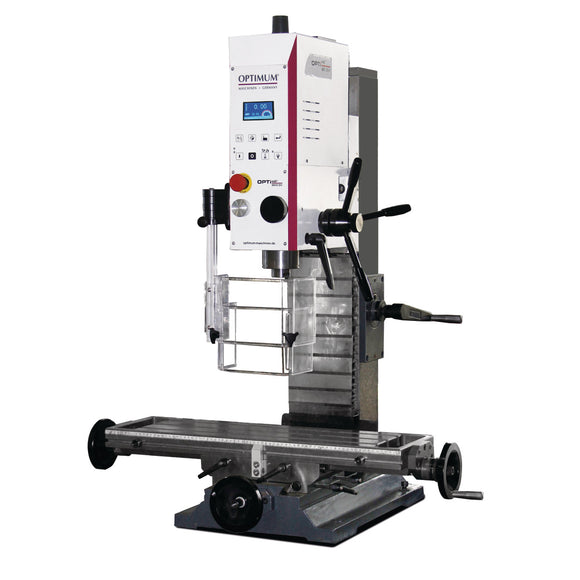

Drilling-milling machine OPTImill MH 3DV

• Continuous drilling performance (steel) 25 mm
• Drilling performance (steel) 28 mm
• Frequency 50 Hz
• Height 1350 mm
• Horizontal milling table length 750 mm
• Horizontal milling table width 210 mm
• Length 850 mm
• Max. size milling head 75 mm
• Max. size shaft milling cutter 30 mm
• Mill head swivel range ± 90 °
• Motor power 2.2 kW
• Net weight 270 kg
• Supply voltage 230 V
• Vertical spindle quill diameter 68 mm
• Vertical spindle quill stroke 100 mm
• Vertical spindle reach 215 mm
• Vertical spindle speed range 120 – 3000 min¯¹
• Vertical spindle spindle chuck MT 3
• Vertical spindle tightening bar M 12
• Width 830 mm
• X-axis travel 450 mm
• Y-axis travel 200 mm
• Z-axis travel 450 mm
