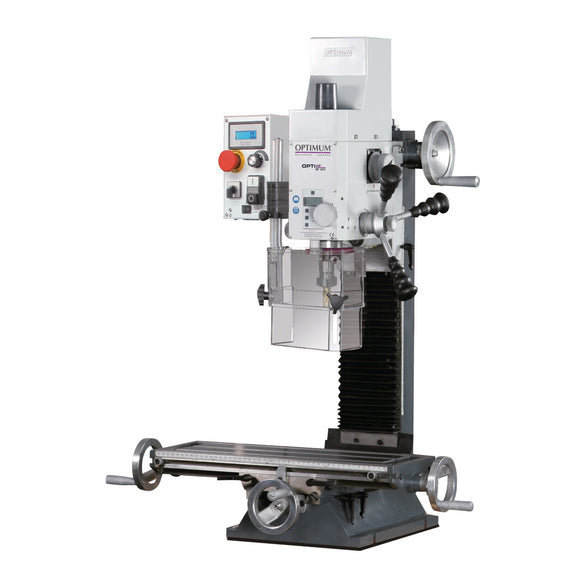

Drilling-milling machine OPTImill BF 20Vario

• Continuous drilling performance (steel) 12 mm
• Drilling performance (steel) 16 mm
• Explanation vertical spindle speed range M 10: 150 – 3000 min¯¹
• Frequency 50 Hz
• Height 935 mm
• Horizontal milling table length 510 mm
• Horizontal milling table max. load bearing capacity 50 kg
• Horizontal milling table width 180 mm
• Length 745 mm
• Max. size milling head 63 mm
• Max. size shaft milling cutter 20 mm
• Net weight 103 kg
• Supply voltage 230 V
• Vertical spindle drive motor output normal operation 0.85 kW
• Vertical spindle number of gears 2
• Vertical spindle quill stroke 50 mm
• Vertical spindle reach 185 mm
• Vertical spindle speed range 90 – 1480 min¯¹
• Vertical spindle spindle chuck MT 2 / M 10
• Vertical spindle tightening bar M 10
• Width 565 mm
• X-axis travel 280
• Y-axis travel 175 mm
• Z-axis travel 280 mm

• Conical mandrel MK 2, B16
• Pulling rod M 10
• operating tool
