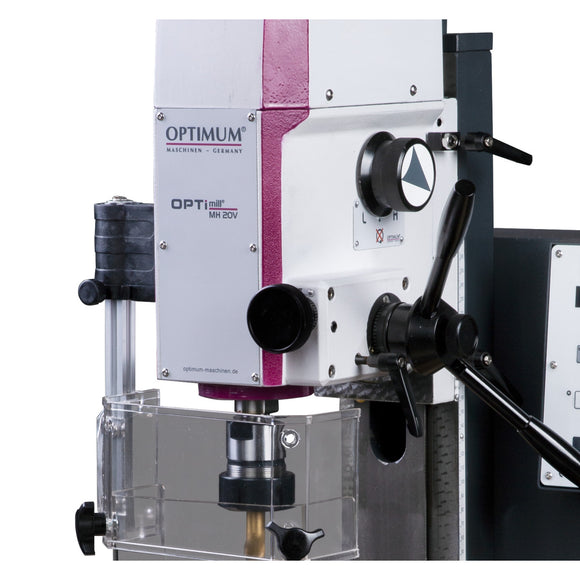

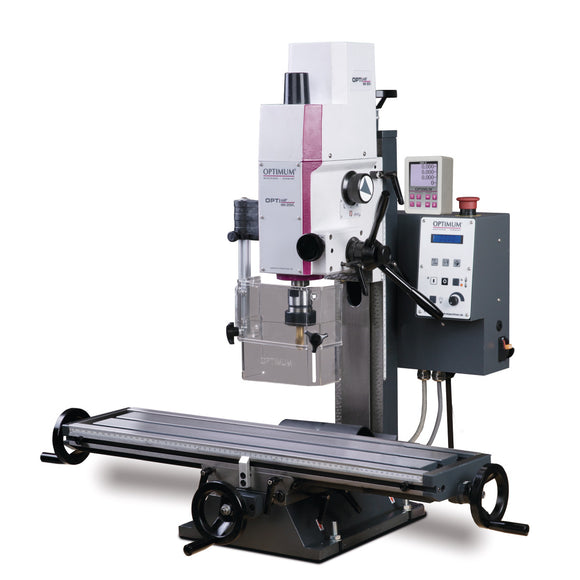

Optimum OPTImill MH 20VLD drilling and milling machine

The Optimum OPTImill MH 20VLD is a 230 V drilling and milling machine with an electronically infinitely variable drive (100 to 3000 min⁻¹), a 700 × 180 mm cross table with 480 mm X-axis travel and a digital position indicator DRO 5 already fitted. It drills up to 16 mm in steel and mills with end mills up to 20 mm. The digital readouts for axis position, speed and drilling depth let you set and repeat positions accurately without counting handwheel turns, so small precision jobs need less measuring, fewer errors and less rework.

Key features

• Precision-built construction
• High concentricity of 0.015 mm or better, measured in the quill, thanks to tapered roller bearings

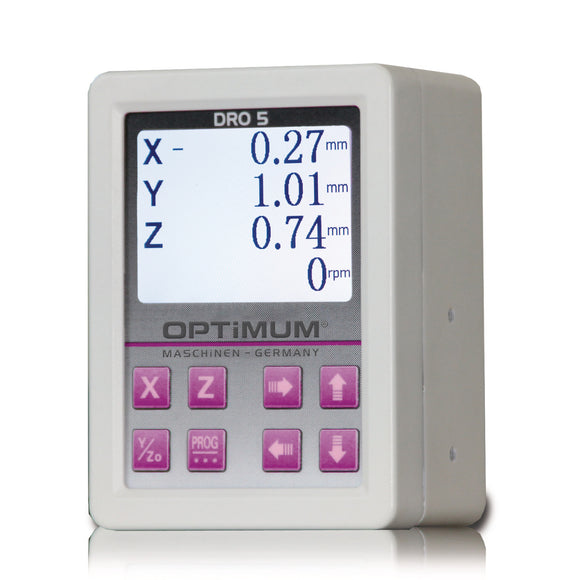

• Digital position indicator DRO 5 included
• Easy-to-read digital display for speed and drilling depth
• Clear control panel with a user-friendly membrane keyboard
• Electronically infinitely variable drive
• Powerful DC motor with permanent current monitoring
• Motor with two-stage gear ratio for powerful transmission of motor power
• Manual quill feed with fine feed
• Fine milling feed
• Safety electronics in 24 V version
• Control electronics with integrated relay control
• Large, solid cross table, precisely finished, with T-slots and adjustable wedge strips
• Stable dovetail guides with adjustable wedge strips
• Adjustable end stops
• Double-row angular contact ball bearings in the axes, adjustable without play
• Drilling and milling head tiltable by ±60°
• Forward/reverse rotation
• Machine lamp
• Height-adjustable protective screen with microswitch, protecting the operator from flying chips and parts
• Emergency stop impact switch
• X, Y and Z axes with a prepared groove for retrofitting magnetic tapes
