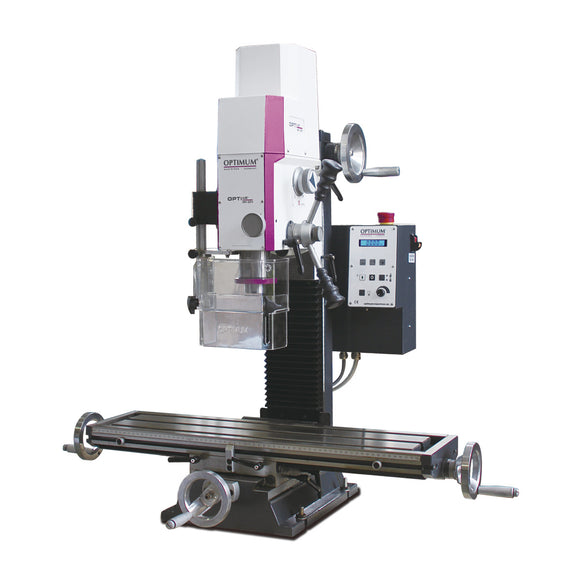

Optimum OPTImill MH 22V drilling and milling machine

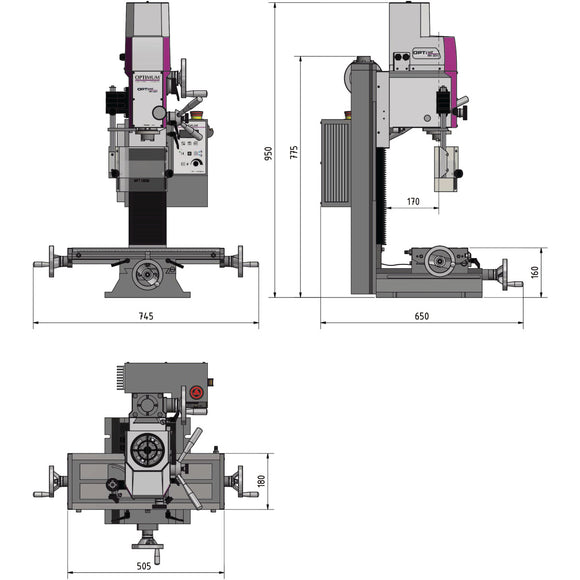

The Optimum OPTImill MH 22V is a 230 V drilling and milling machine with an electronically infinitely variable drive (90 to 3000 min⁻¹), a 0.95 kW motor and a BT 20 spindle. It drills up to 20 mm in steel and has a 700 × 180 mm cross table with 480 mm X-axis travel. Tapered roller bearings hold concentricity to 0.015 mm or better and the axes adjust without play, so you can mill and drill accurately on small precision jobs without chatter, loose axes or reworking.

Key features

• Precision-machined construction
• High concentricity of 0.015 mm or better, measured in the sleeve, thanks to tapered roller bearings
• Electronically infinitely variable drive
• Powerful DC motor with permanent current monitoring
• Motor with two-stage gear ratio for powerful transmission of motor power

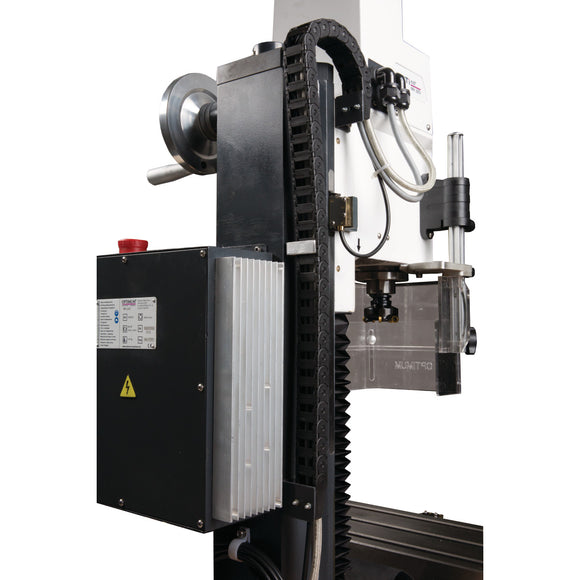

• Safety electrics in 24 V version

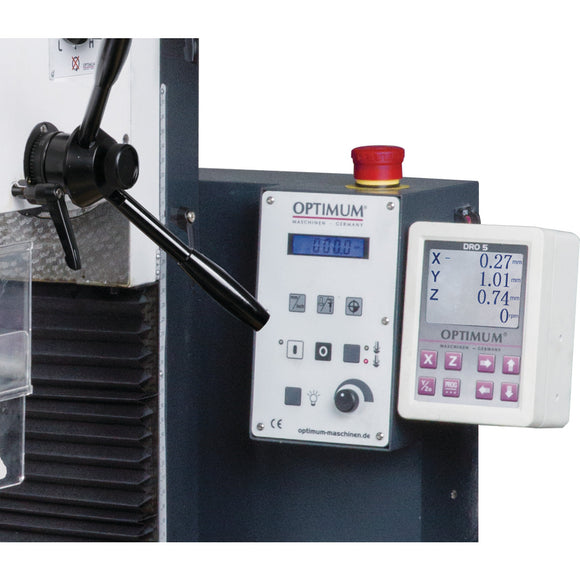

• Control electronics with integrated relay control
• Large, solid cross table, precisely surface-machined, with T-slots and adjustable gibs
• Stable dovetail guides with adjustable gibs
• Adjustable end stops
• Fine feed
• Double-row angular contact ball bearings in the axes, adjustable without play
• Feed spindle play can be adjusted and readjusted

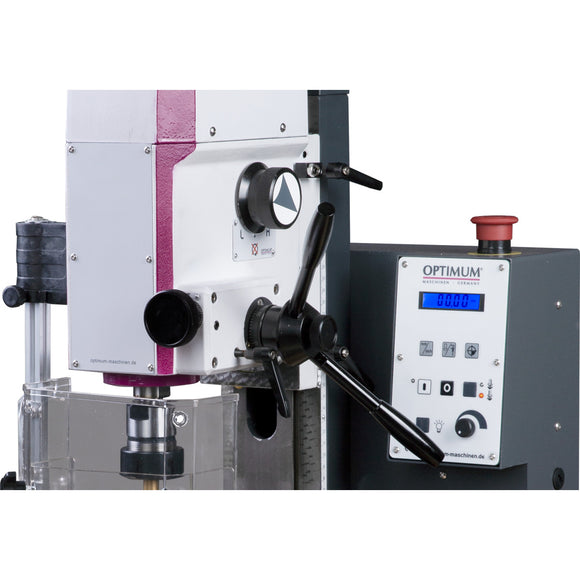

• Drilling/milling head tiltable by ±60°
• Right/left rotation
• Machine lamp
• Hole for easy oiling of the trapezoidal spindle
• Height-adjustable protective screen with microswitch, protecting the operator from flying chips and parts
• Emergency stop switch
• X, Y and Z axes with a prepared groove for retrofitting magnetic tapes
• Bellows protecting the guideways
