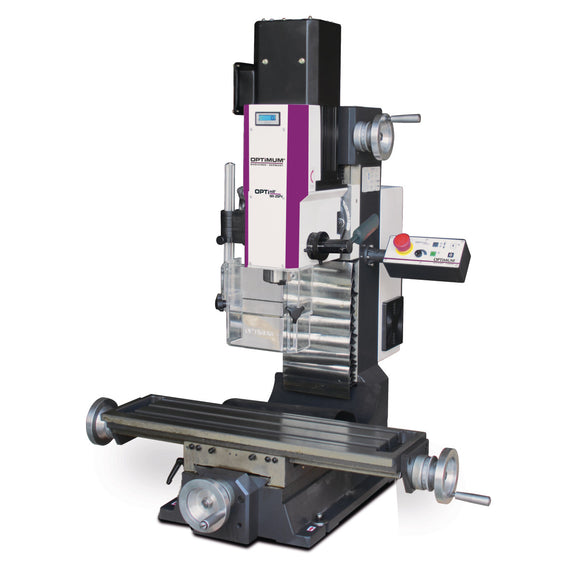

Milling machine OPTImill MH 25PV

• EMC level C2
• Frequency 50 Hz
• Height 1025 mm
• Horizontal milling table length 620 mm
• Horizontal milling table max. load bearing capacity 30 kg
• Horizontal milling table width 180 mm
• Length 970 mm
• Max. size milling head 50 mm
• Max. size shaft milling cutter 25 mm
• Mill head swivel range 45 °
• Net weight 192 kg
• Standard DIN EN 55011
• Supply voltage 230 V
• Total rated value 2 kW
• Vertical spindle drive motor output normal operation 1.5 kW
• Vertical spindle drive motor torque 10 Nm
• Vertical spindle number of gears 1
• Vertical spindle reach 185 mm
• Vertical spindle speed range 200 – 4000 min¯¹
• Vertical spindle spindle chuck BT 30
• Width 955 mm
• X-axis travel 400 mm
• Y-axis travel 210 mm
• Z-axis travel 270 mm
