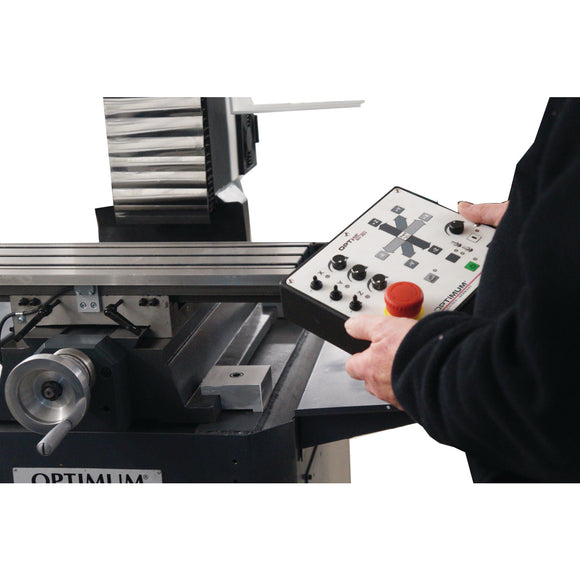

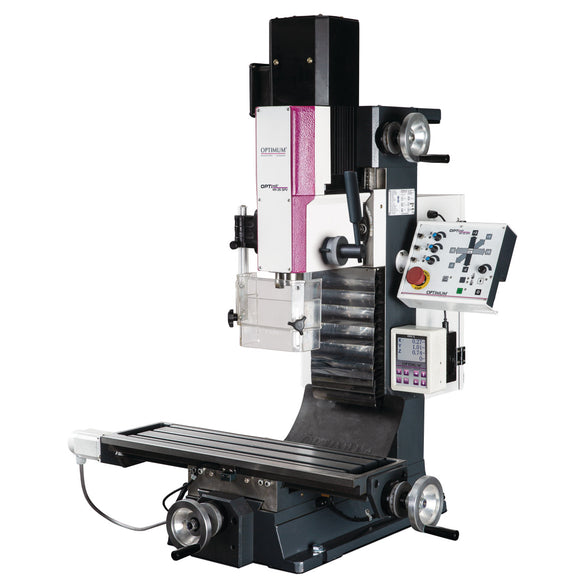

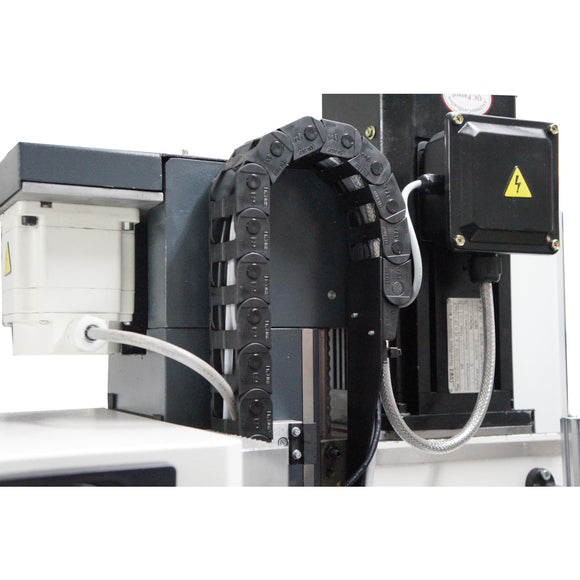

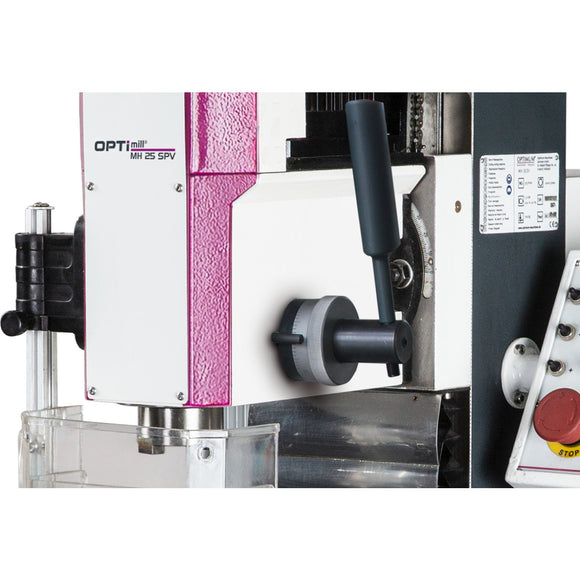

Milling machine OPTImill MH 25SPV

• Digital position indicator DRO 5
• Drilling performance (steel) 20 mm
• EMC level C2
• Fast motion speed X axis 150 – 930 mm/min
• Fast motion speed Y axis 100 – 580 mm/min
• Fast motion speed Z axis 80 – 450 mm/min
• Feed motor torque X axis continuous operation S1 2.2 Nm
• Feed motor torque Y axis continuous operation S1 2.2 Nm
• Feed motor torque Z axis continuous operation S1 4.2 nm
• Frequency 50 Hz
• Height 1025 mm
• Horizontal milling table length 620 mm
• Horizontal milling table max. load bearing capacity 30 kg
• Horizontal milling table width 180 mm
• Length 970 mm
• Max. size milling head 50 mm
• Max. size shaft milling cutter 25 mm
• Net weight 200 kg
• Standard DIN EN 55011
• Supply voltage 230 V
• Total rated value 2 kW
• Travel X axis automatic 380 mm
• Travel Y axis automatic 130 mm
• Travel Z axis automatic 190 mm
• Vertical spindle drive motor output normal operation 1.5 kW
• Vertical spindle drive motor torque 10 Nm
• Vertical spindle number of gears 1
• Vertical spindle quill stroke 60 mm
• Vertical spindle reach 185 mm
• Vertical spindle speed range 200 – 4000 min¯¹
• Vertical spindle spindle chuck BT 30
• Width 975 mm
• X axis feed speed 150 mm/min
• X-axis travel 400 mm
• Y axis feed speed 100 mm/min
• Y-axis travel 210 mm
• Z axis feed speed 80 mm/min
• Z-axis travel 270 mm
