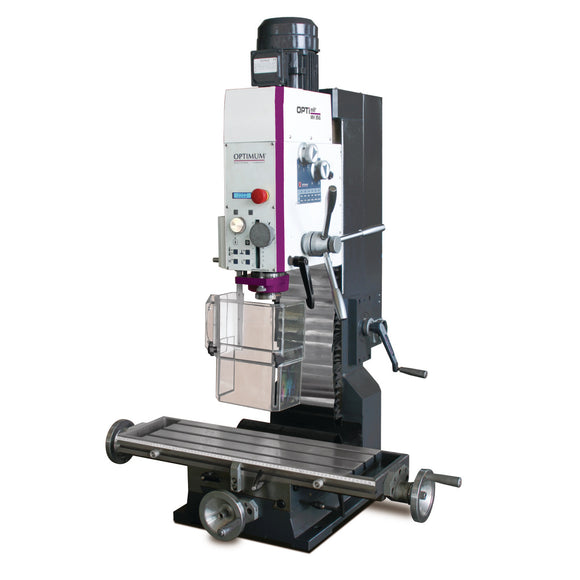

Drilling-milling machine OPTImill Modified column and base plate

• Continuous drilling performance (steel) 28 mm
• Drilling performance (steel) 32 mm
• EMC level C2
• Frequency 50 Hz

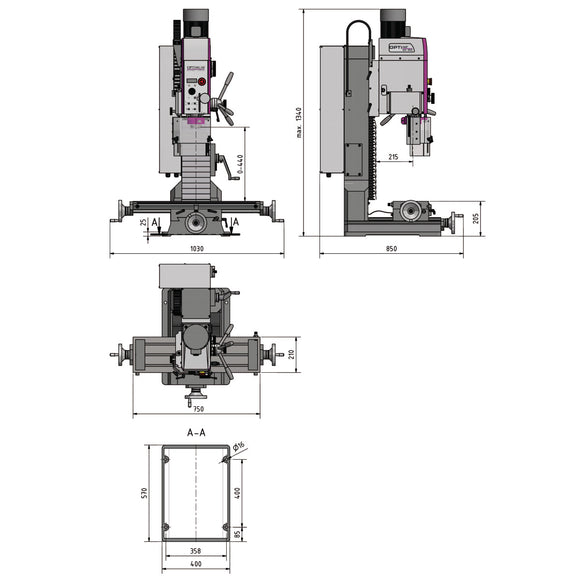

• Height 1340 mm
• Horizontal milling table length 750 mm
• Horizontal milling table max. load bearing capacity 170 kg
• Horizontal milling table width 210 mm
• Length 850 mm
• Max. size milling head 80 mm
• Max. size shaft milling cutter 28 mm
• Motor power 1,1 / 1,5 kW
• Net weight 318 kg
• Standard DIN EN 55011
• Supply voltage 400 V
• Vertical spindle number of gears 2 x 6 Steps
• Vertical spindle quill diameter 68 mm
• Vertical spindle quill stroke 90 mm
• Vertical spindle reach 215 mm
• Vertical spindle speed range 220 – 3100 min¯¹
• Vertical spindle spindle chuck BT 30
• Width 1030 mm
• X-axis travel 450 mm
• Y-axis travel 200 mm
• Z-axis travel 460 mm

• Operating tool
