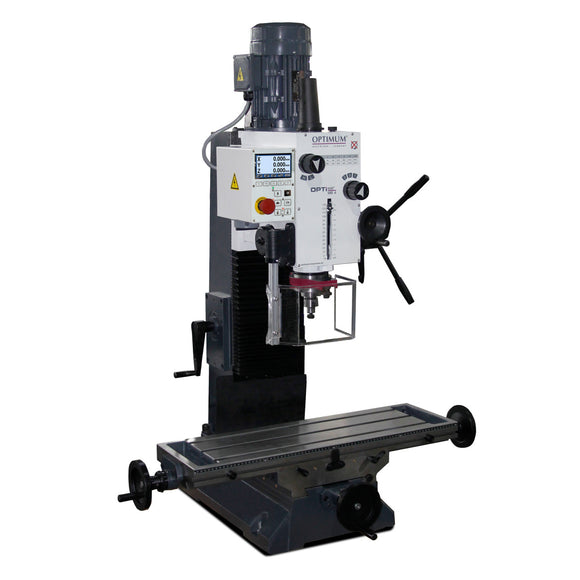

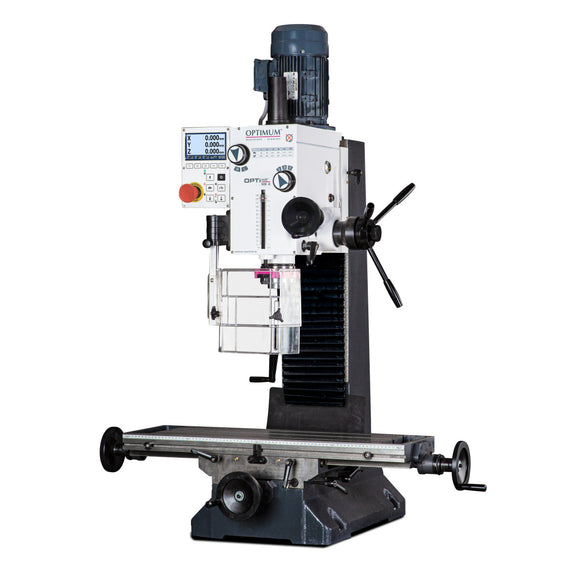

Precision drilling-milling machine OPTImill MB 4D

• Continuous drilling performance (steel) 28 mm
• Drilling performance (steel) 32 mm
• Frequency 50 Hz

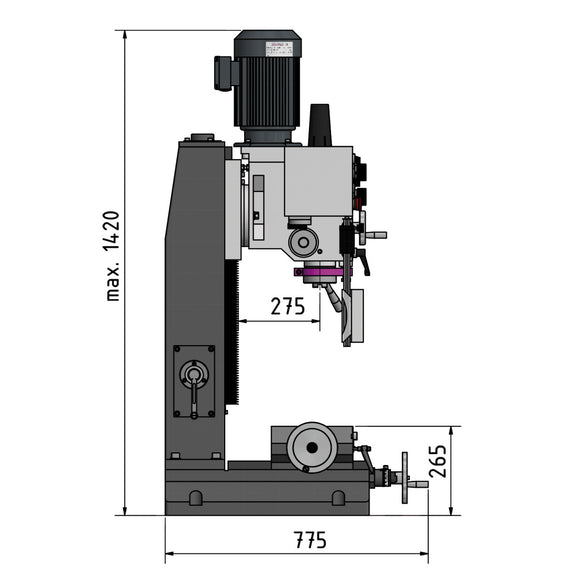

• Height 1420 mm

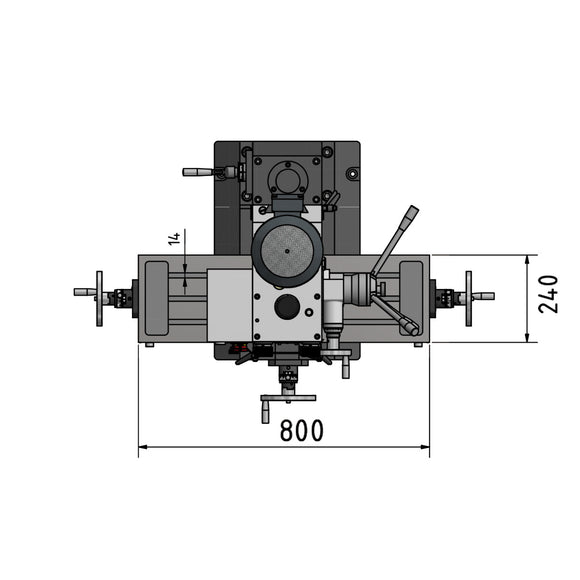

• Horizontal milling table length 800 mm
• Horizontal milling table max. load bearing capacity 80 kg
• Horizontal milling table width 240 mm

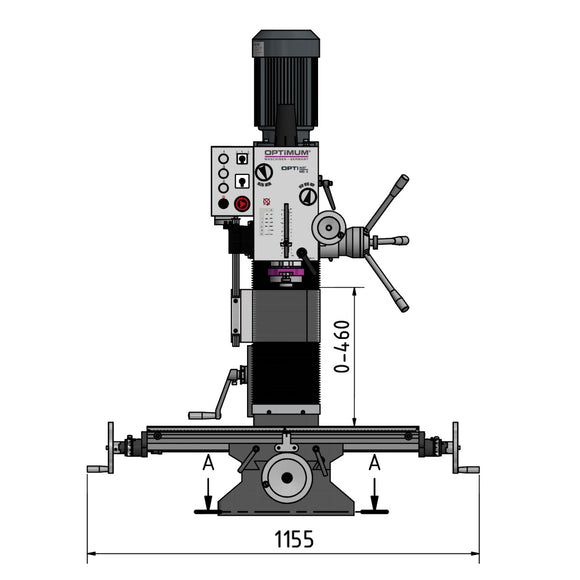

• Length 1155 mm
• Max. size milling head 63 mm
• Max. size shaft milling cutter 28 mm
• Net weight 320 kg
• Supply voltage 400 V
• Vertical spindle drive motor output normal operation 1.1 / 1.5 kW
• Vertical spindle quill diameter 75 mm
• Vertical spindle quill stroke 120 mm
• Vertical spindle reach 275 mm
• Vertical spindle speed range 95 – 3200 min¯¹
• Vertical spindle spindle chuck MT 4
• Vertical spindle tightening bar M16
• Width 775 mm
• X-axis travel 450 mm
• Y-axis travel 195 mm
• Z-axis travel 430 mm

• Adapter MK4/MK 3
• Tightening rod M 16
• Adapter MK4/22 mm
• Operating tool
