Drilling-milling machine OPTImill MB 4P

€8.571,87 EUR (€6.969,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3338460 Barcode: 4030635022104

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

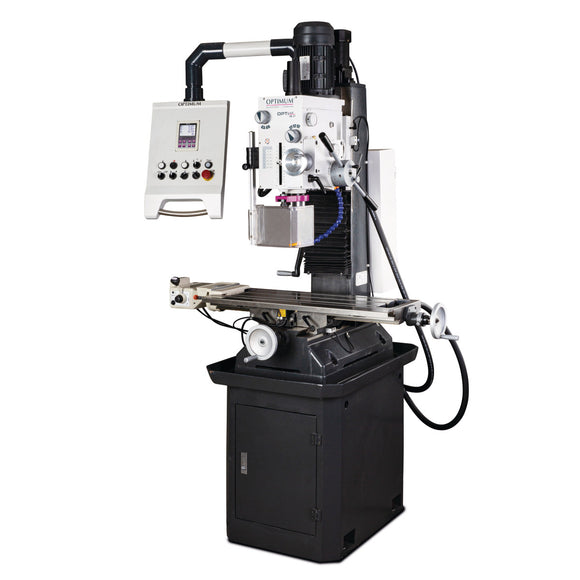

Drilling-milling machine OPTImill MB 4P.
  • Heavy, solid cast design

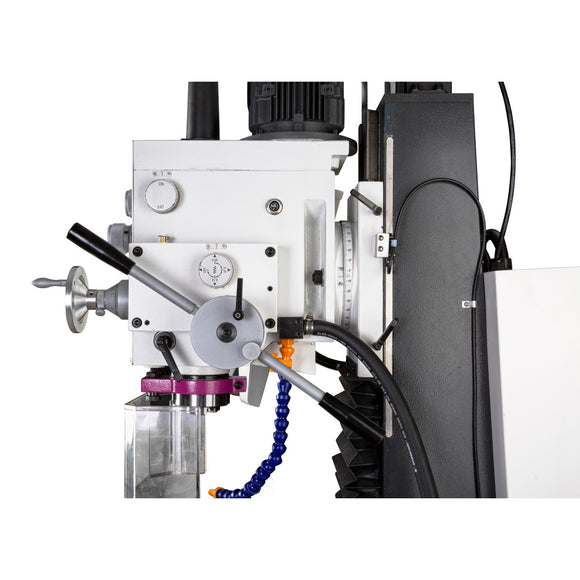

  • Smooth running due to ground gear wheels running in an oil bath
  • Right/left rotation
  • Automatic quill feed with manual fine feed
  • Motorized positioning of the Z-axis

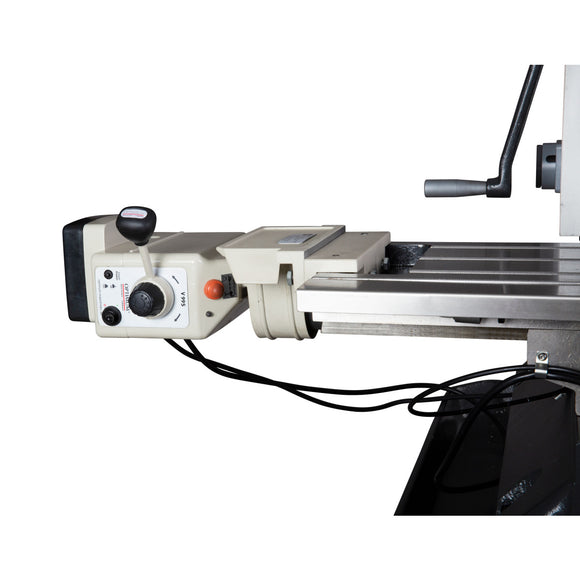

  • Motorized table feed of the X-axis
  • Coolant device
  • Machine lamp
  • Gear head can be swiveled ± 45
  • Solid dovetail guide of the column, hand-scraped, for maximum stability and maximum precision
  • Height-adjustable, large protective screen with microswitch
  • Drilling depth stop

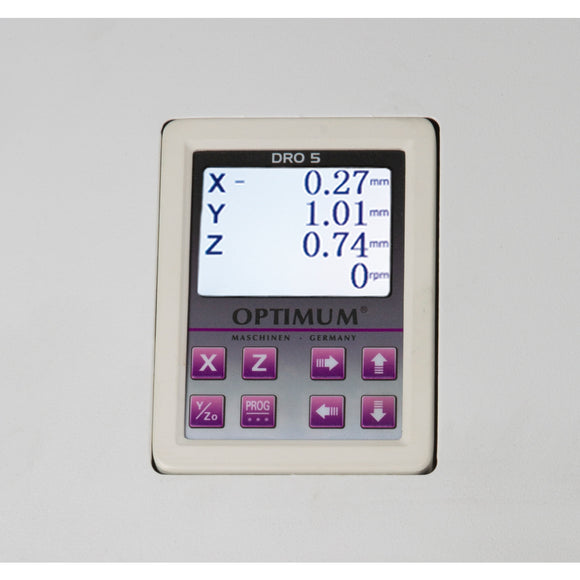

  • Digital position indicator DRO 5
  • Drilling / tapping function
  • Solid and large cross table, precisely surface-finished with T-slots and adjustable keyways
  • Solid cast iron machine base with chip chute
  • Two-stage quality industrial electric motor
  • Wide speed range from 95 - 3,200 rpm thanks to 12 switchable speeds


.
  • Continuous drilling performance (steel) 28 mm
  • Coolant pump(s) drive power 100 W
  • Digital position indicator DRO 5
  • Drilling performance (steel) 32 mm
  • Frequency 50 Hz

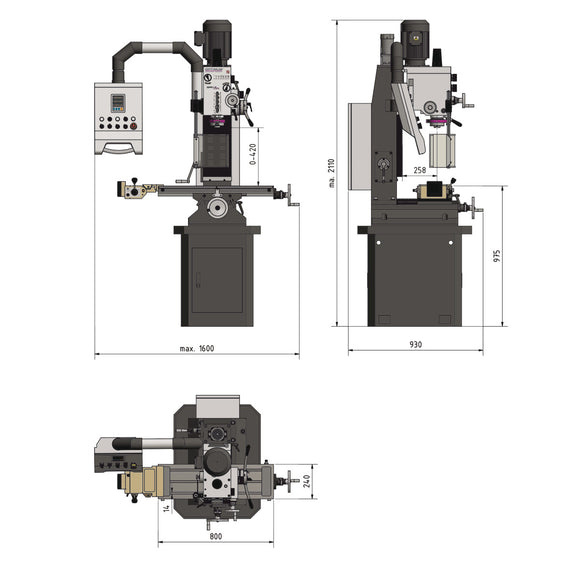

  • Height 2110 mm
  • Horizontal milling table length 800 mm
  • Horizontal milling table width 240 mm
  • Length 1600 mm
  • Max. size milling head 63 mm
  • Max. size shaft milling cutter 28 mm
  • Motor power 1,1 / 1,5 kW
  • Net weight 495 kg
  • Standard DIN EN 55011
  • Supply voltage 400 V
  • Travel X axis automatic 480 mm
  • Vertical spindle number of gears 2 x 6
  • Vertical spindle quill diameter 75 mm
  • Vertical spindle quill stroke 120 mm
  • Vertical spindle reach 258 mm
  • Vertical spindle speed range 95 – 3200 min¯¹
  • Vertical spindle spindle chuck MT 4
  • Vertical spindle tightening bar M 16
  • Width 930 mm
  • X-axis travel 560 mm
  • Y-axis travel 195 mm
  • Z-axis travel 350 mm
  • substructure
  • Morse cone MK 3
  • Adapter MK 3 - MK 4
  • Pulling rod M 16
  • operating tool

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Vibration damper machine foot SE 55 Vibration damper machine foot SE 55 - 0

Vibration damper machine foot SE 55

Optimum

€59,04 EUR
Enquire
Prism WP 30 Prism WP 30 - 0

Prism WP 30

Optimum

€129,15 EUR
Enquire
Precision machine vice FMS 100 Precision machine vice FMS 100 - 0

Precision machine vice FMS 100

Optimum

€244,77 EUR
Hydraulic milling machine vice HMS 100 Hydraulic milling machine vice HMS 100 - 0

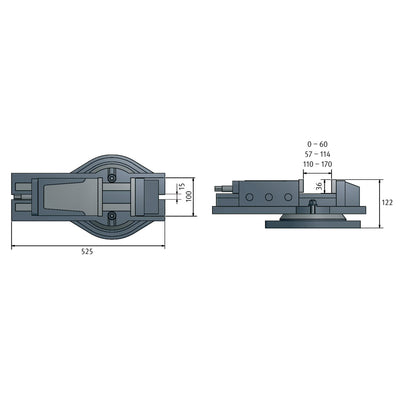

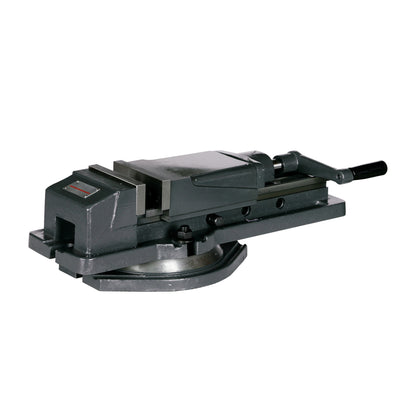

Hydraulic milling machine vice HMS 100

Optimum

€940,95 EUR
Enquire
Parallel spacer kit BT 40 Parallel spacer kit BT 40 - 0

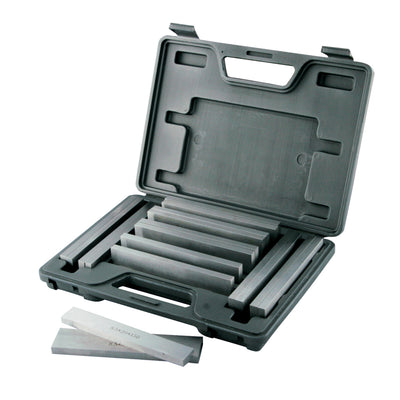

Parallel spacer kit BT 40
