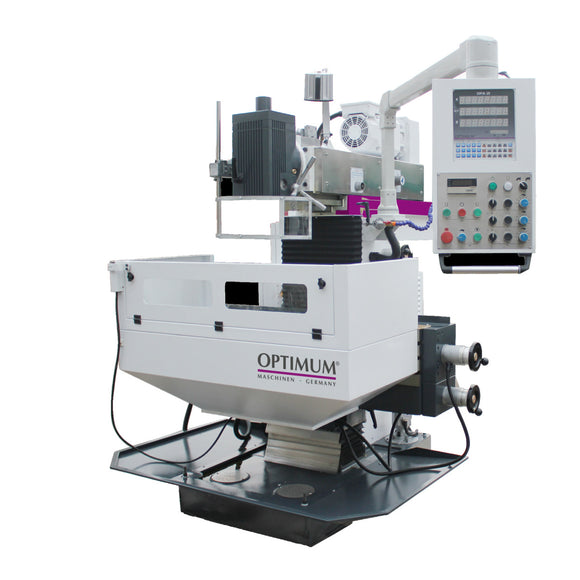

drilling-milling machine OPTImill MX 2

• Drive speed feed X axis 10 – 1000 min¯¹
• Frequency 50 Hz
• Height 1882 mm
• Horizontal milling table length 750 mm
• Horizontal milling table max. load bearing capacity 160 kg
• Horizontal milling table width 320 mm
• Length 1900 mm
• Motor power 3.7 kW
• Net weight 1500 kg
• Supply voltage 400 V
• Vertical milling table length 890 mm
• Vertical milling table width 225 mm
• Vertical spindle number of gears 2
• Vertical spindle speed range 40 – 2000 min¯¹
• Vertical spindle spindle chuck ISO 40 DIN 2080
• Width 1650 mm
• X-axis travel 405 mm
• Y-axis travel 305 mm
• Z-axis travel 400 mm

• Reducing sleeve MK1 / MK 2 / MK 3
• Operating tool
• Milling spindle Horizontal milling Ø 16 mm / 22 mm / 27 mm / 32 mm
