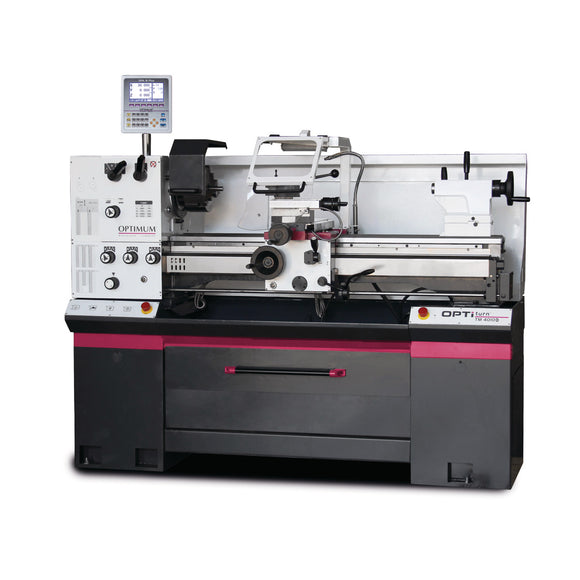

Conventional Centre Lathe OPTIturn TM 4010V

• 40 – 3000 min¯¹
• Flat feed range 0,052 – 1,392 mm/rev
• Frequency 50 Hz
• Height 1740 mm
• Imperial pitch 56 – 4 Gg/1"
• Length 1935 mm
• Longitudinal feed range 0,014 – 0,38 mm/rev
• Max. height 200 mm
• Max. width 1000 mm
• Metric pitch 0,4 – 7 mm/rev
• Motor power 4 kW
• Net weight 756 kg
• Number of flat feeds 32
• Number of gears 4
• Number of imperial pitches 31
• Number of longitudinal feeds 26
• Number of metric pitches 32
• Spindle bore 52 mm
• Spindle chuck Camlock DIN ISO 702-2 No.5
• Supply voltage 400 V
• Swing diameter above machine bed 400 mm
• Swing diameter above planing slide 250 mm
• Tailstock chuck MT 6
• Travel cross slide 185 mm
• Travel upper slide 98 mm
• Width 780 mm

• Three-jaw lathe chuck Ø 200 mm Camlock no. 5
• Fixed steady rest Ø 7 - Ø 102 mm
• Rotating steady rest Ø 10 - Ø 60 mm
• LED machine light
• Adapter MK 6-MK 4
• Non-rotating center point MK4
• Quick-change steel holder SWH 3-E
• Steel holder 20 x 100 type D for square chisel 18 mm
• Initial machine filling with quality oil
• Operating tool
