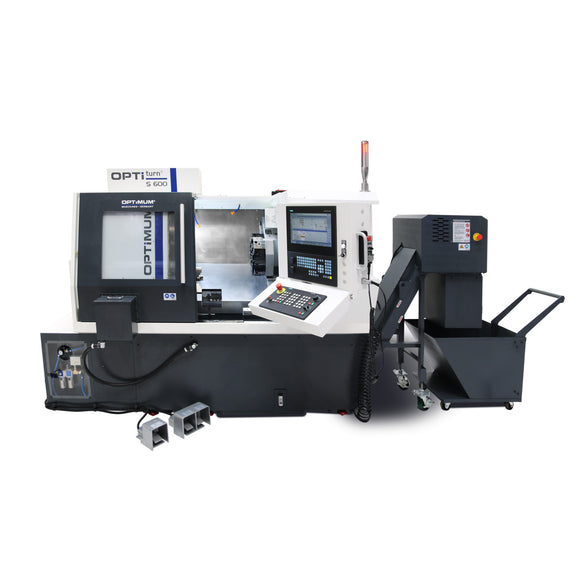

CNC slant bed lathe OPTIturn S 600.
  • Robust construction
  • Compact design
  • SIEMENS servomotors in all axes
  • All servomotors with integrated encoder for maximum accuracy

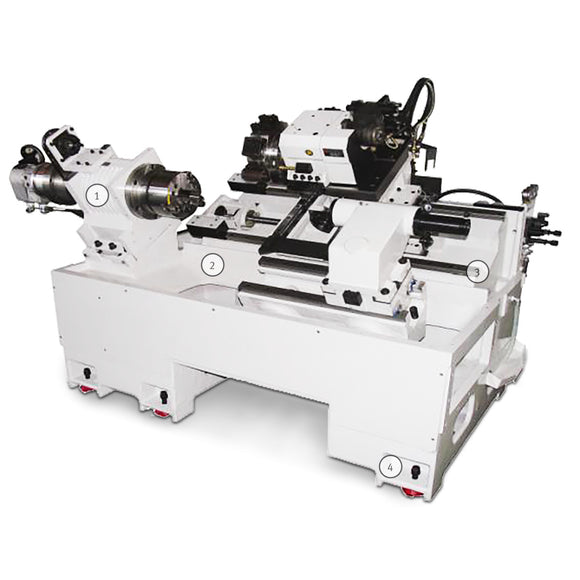

  • Inclined bed version 30° for particularly large machining diameters

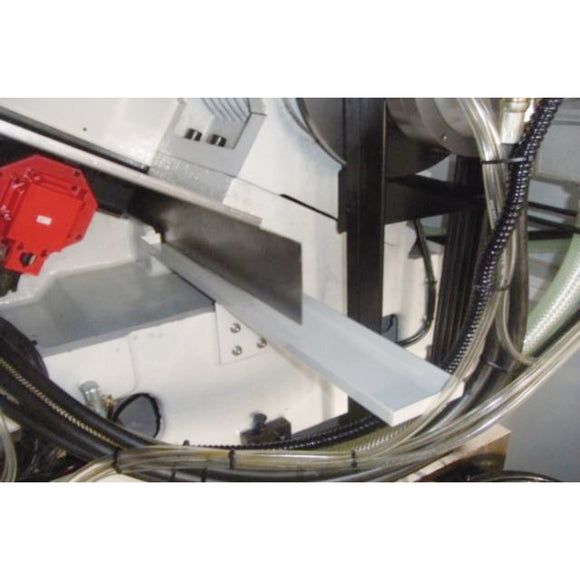

  • Better, unimpeded chip drainage into the chip tray

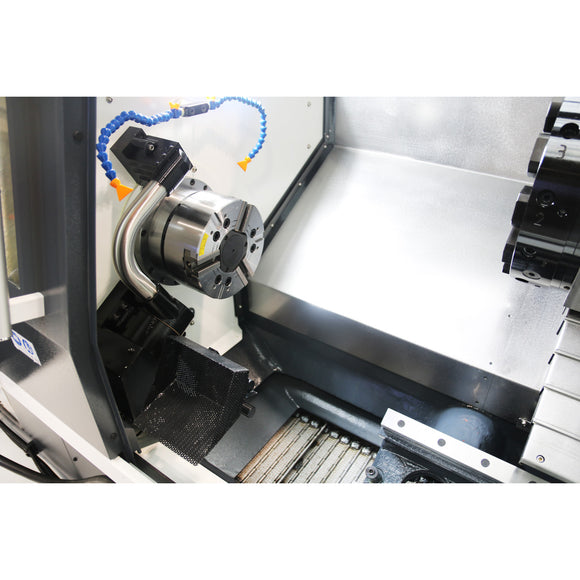

  • Hydraulic three-jaw lathe chuck Ø 200 mm
  • Hard and soft block jaws
  • Standard tool changer VDI 30 with 8 tool places
  • Hardened and precision ground recirculating ball spindles for high rapid traverse speeds in all axes
  • Dimensionally stable linear guides ensure a long service life thanks to maximum static and dynamic rigidity
  • Device for manual tool measurement

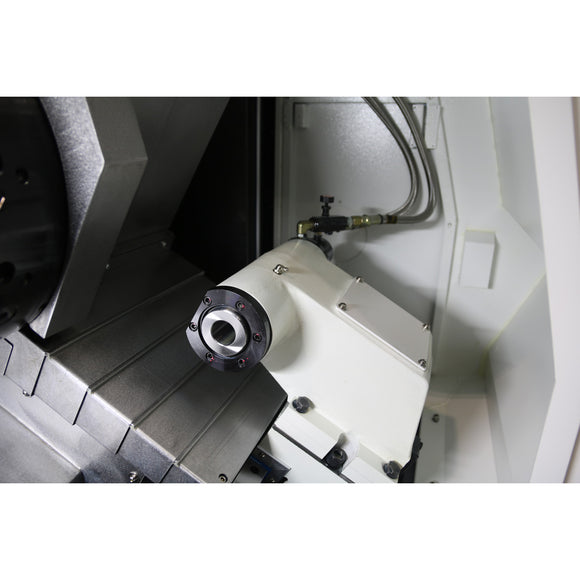

  • Tailstock with hydraulic quill
  • Heat exchanger
  • Portable, electronic handwheel with enabling button and emergency stop push button makes it easier to retract programs considerably
  • Chip conveyor in belt design for efficient chip removal

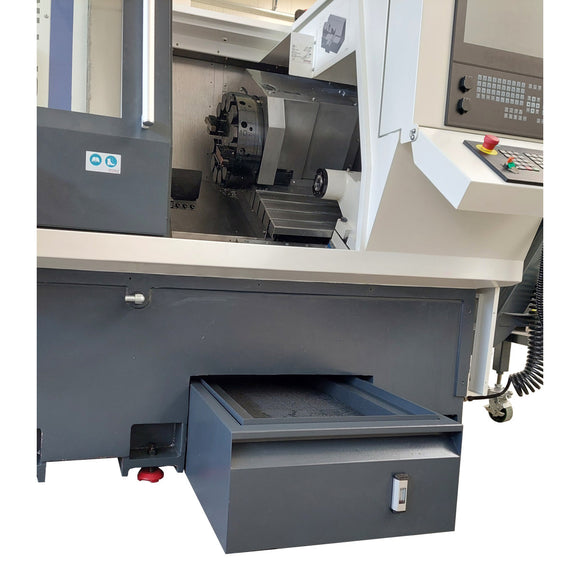

  • Chip trolley
  • Halogen work light for complete illumination of the work area
  • Coolant system
  • EMC (electromagnetic compatibility)


SINUMERIK 828D Basic


High-tech for the compact class


Increased productivity and precision in production


The use of two independently working tools makes 4-axis turning (balance cutting) possible.

  • 40 – 4000 min¯¹
  • Angled bed 30 °
  • CNC memory 3 MB
  • Chuck passage diameter 65 mm
  • Cooling lubricant system cleaning pump output 750 W
  • Cooling lubricant system coolant pump output 750 W
  • Cooling lubricant system tank capacity 140 l
  • Drive motor torque 115 Nm
  • Feed force X-axis 6.9 kN
  • Feed force Z-axis 6.9 kN
  • Frequency 50 Hz

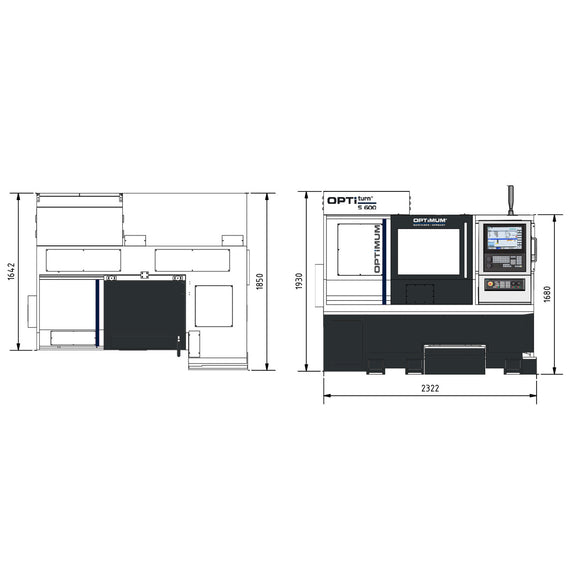

  • Height 1930 mm

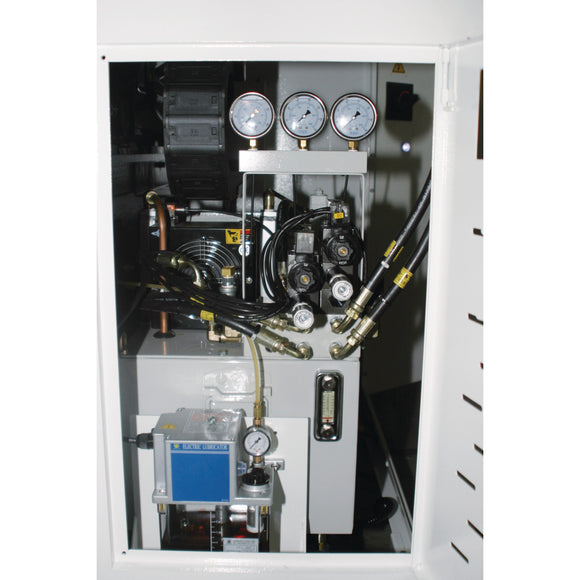

  • Hydraulic system motor output 1,5 kW
  • Hydraulic system tank capacity 60 l
  • Lathe chuck diameter 200 mm
  • Length 2322 mm
  • Look Ahead 50
  • Max. height 250 mm
  • Motor power 12 kW
  • Net weight 3200 kg
  • Number of tools 128
  • Positioning accuracy ± 0.005 mm
  • Repetition accuracy ± 0.005 mm
  • Set change time 3 ms
  • Sinumerik 828D system software (factory option) SW 24
  • Spindle bore 75 mm
  • Spindle chuck DIN ISO 702-1 No. 6
  • Supply voltage 400 V
  • Swing diameter above machine bed 500 mm
  • Swing diameter above planing slide 220 mm
  • Tailstock chuck MT 4
  • Tailstock quill diameter 65 mm
  • Tailstock quill stroke 60 mm
  • Tailstock travel 425 mm
  • Tool changer number of tool slots 8
  • Tool changer type VDI 30
  • Total rated value 31 kVA
  • Travel X axis 11 mm
  • Travel Z axis 520 mm
  • Turning length 460 mm
  • Type of Control Sinumerik 828D PPU 271
  • Vertical spindle drive motor output continuous operation S1 12 kW
  • Vertical spindle drive motor torque 115 Nm
  • Width 1948 mm
  • X axis feed speed 30000 mm/min
  • X axis motor torque 11 Nm
  • Z axis feed speed 30000 mm/min
  • Z axis motor torque 11 Nm

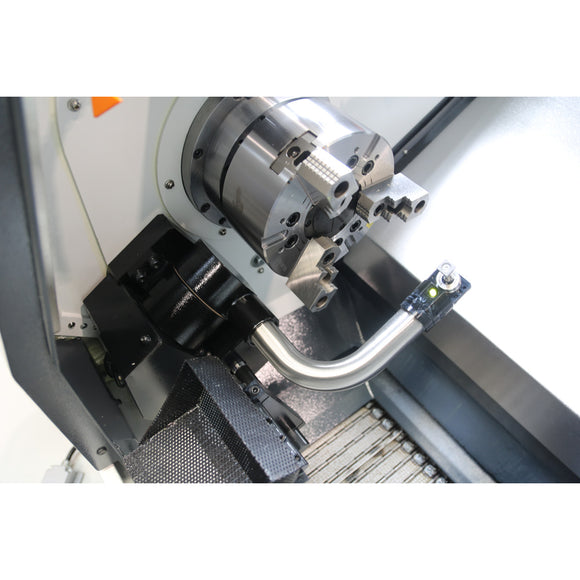

  • Tool probe Renishaw
  • Tool holder for MK3
  • EMC
  • Coolant system
  • Portable electronic handwheel
  • heat exchangers
  • Hydraulic tool turret LS200 standard
  • chip conveyor
  • Hydraulic 3-jaw chuck Ø 200 mm
  • chip cart
  • Hard and soft block cheeks
  • operating tool
  • Tool holder set 3 Holder for reducing sleeves, 1 holder for external turning steel, 5 reduction sleeves Ø 12 mm, Ø 16 mm, Ø 20 mm, Ø 25 mm, MK 3

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Workplace mat 3040 x 940 mm Workplace mat 3040 x 940 mm - 0

Workplace mat 3040 x 940 mm

Unicraft

€633,45 EUR
Enquire
Software DXF reader for SIEMENS SINUMERIK control systems Software DXF reader for SIEMENS SINUMERIK control systems - 0

Software DXF reader for SIEMENS SINUMERIK control systems

Optimum

Enquire
Workplace mat 1840 x 640 mm Workplace mat 1840 x 640 mm - 0

Workplace mat 1840 x 640 mm

Unicraft

€244,77 EUR

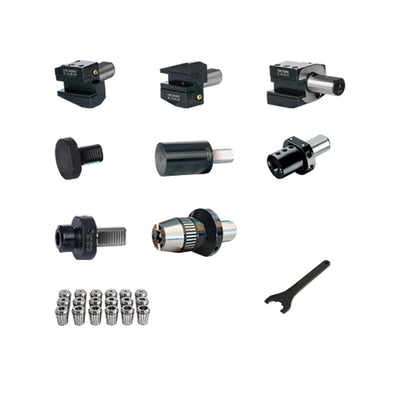

Starter kit VDI 30 Starter kit VDI 30 - 0
