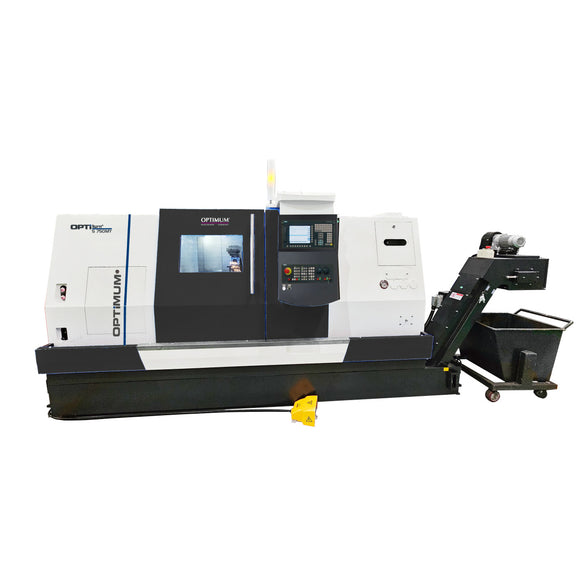

CNC lathe OPTIturn S 750MY

• 30 – 3500 min¯¹

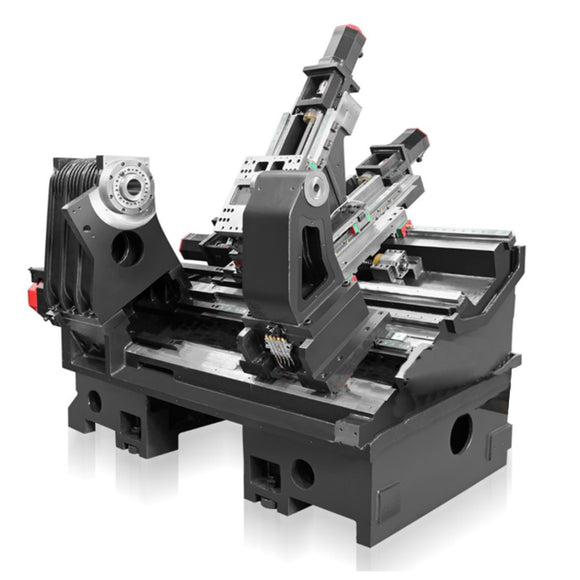

• Angled bed 30 °
• Chuck passage diameter 74 mm
• Cooling lubricant system coolant pump output 0.7 kW
• Cooling lubricant system tank capacity 320 l
• Feed force X-axis 8.4 kN
• Feed force Y-axis 18 kN
• Feed force Z-axis 6.7 kN
• Frequency 50 Hz
• Height 1990 mm
• Lathe chuck diameter 500 mm
• Length 5040 mm
• Main spindle bore 86 mm
• Net weight 4700 kg
• Spindle chuck A2-8
• Spindle hydraulic lathe chuck 250 mm
• Supply voltage 400 V
• Swing diameter above machine bed 660 mm
• Swing diameter above planing slide 480 mm

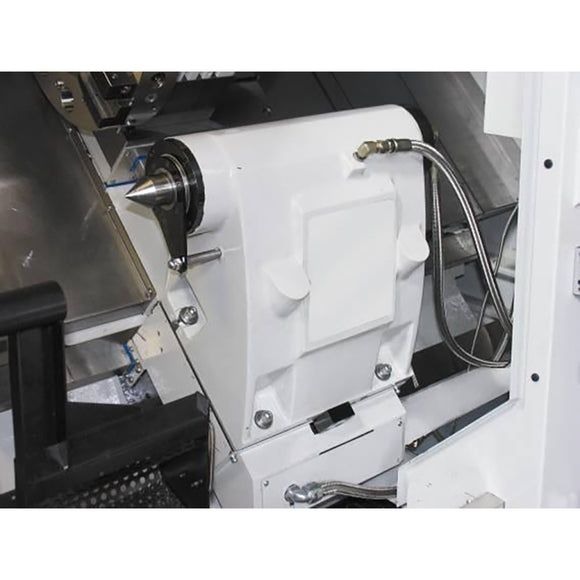

• Tailstock chuck MK 5
• Tailstock quill diameter 100 mm
• Tailstock quill stroke 100 mm

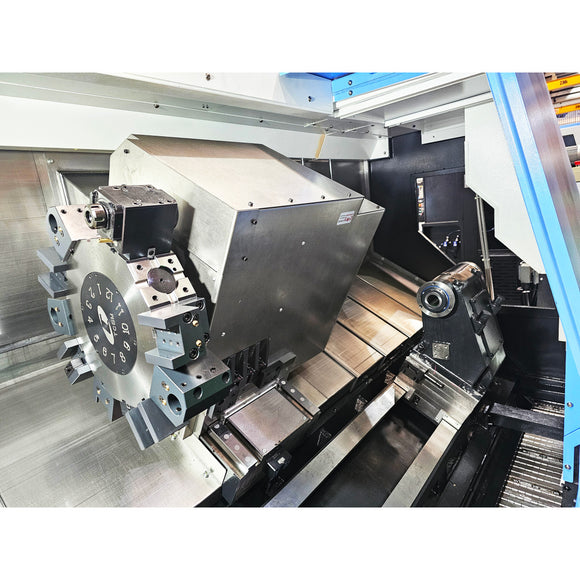

• Tool changer drive motor output 4.8 kW
• Tool changer max. permissible speed at tool coupling 4000 min¯¹
• Tool changer max. tool torque 20 Nm
• Tool changer number of tool slots 12
• Tool changer type BMT55
• Total rated value 35 kVA
• Travel X axis 280 mm
• Travel Y axis ± 50 mm
• Travel Z axis 1280 mm
• Turning length 1250 mm
• Vertical spindle drive motor output continuous operation S1 15 kW
• Vertical spindle drive motor torque 268 Nm
• Width 1880 mm
• X axis motor torque 12 Nm
• Y axis motor torque 12 Nm
• Z axis motor torque 12 Nm

• Axial tool holder driven tools
• Radial tool holder driven tools
• Boring bar holder
• OD tool holder
• End face tool holder
• Boring bar Ø 20 mm
• Boring bar Ø 25 mm
• Boring bar Ø 32 mm
