Hydraulic machine vice HCV 160-1
Hydraulic machine vice HCV 160-2
Hydraulic machine vice HCV 160-3

Hydraulic machine vice HCV 160

Tax includedShipping calculated at checkout

SKU: 3536215 Barcode: 4030635020827

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Hydraulic machine vice HCV 160.
  • Patented anti-lift mechanism
  • Guide surfaces hardened and ground
  • Booster system, little effort, high pressure during clamping
  • Wide clamping range by locking bolts with different hole distances
  • Made of high quality stainless steel
  • Spindle is protected against dirt and chips
  • Parallelism: 0. / Tolerance between bed and jaws: 0. 02 / 100 mm
  • Clamping pressure 60 Nm
  • Clamping force 6,000 kg
  • Weight 66 kg


.
  • Clamping force 6000 kg
  • Clamping pressure 60 kN

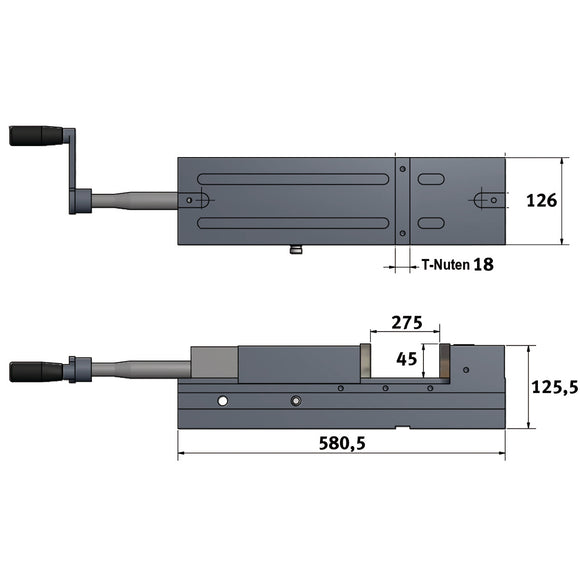

  • Construction height 125.5 mm
  • Jaw height 45 mm
  • Jaw width 126 mm
  • Length without crank 580.8 mm
  • Net weight 66 kg
  • Span 275 mm
  • T-slots 18 mm

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

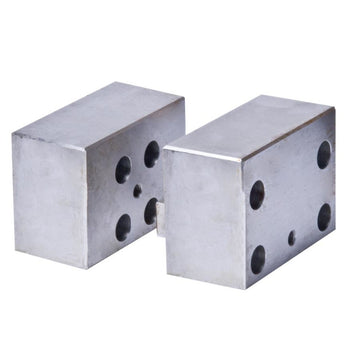

L-baking HCV 160 L-baking HCV 160 - 0
