Semiautomatic two-column horizontal metal band saw HMBS 700 x 750 HA X

€114.820,50 EUR (€93.350,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3690082 Barcode: 4036351140139

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out

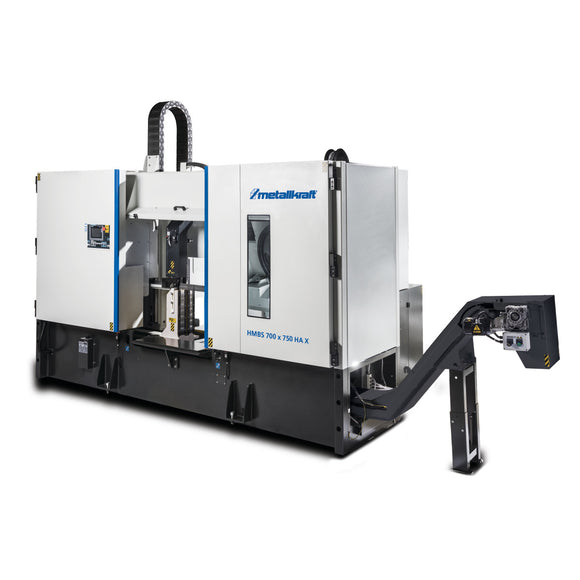

Semiautomatic two-column horizontal metal band saw HMBS 700 x.

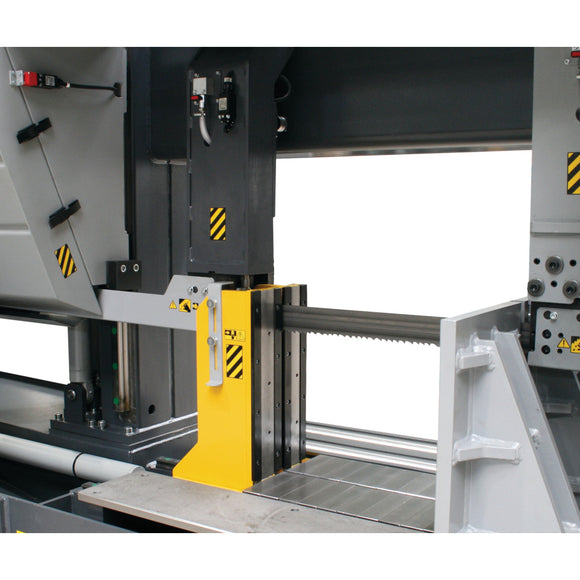

  • Linear guides on both columns ensure a perfect cutting result
  • Robust three-phase motor with overload protection
  • The vice is equipped with a long-stroke cylinder to compensate for larger cross-section differences
  • Belt guide with adjustable carbide plates
  • Hydraulic regulation of the vice pressure

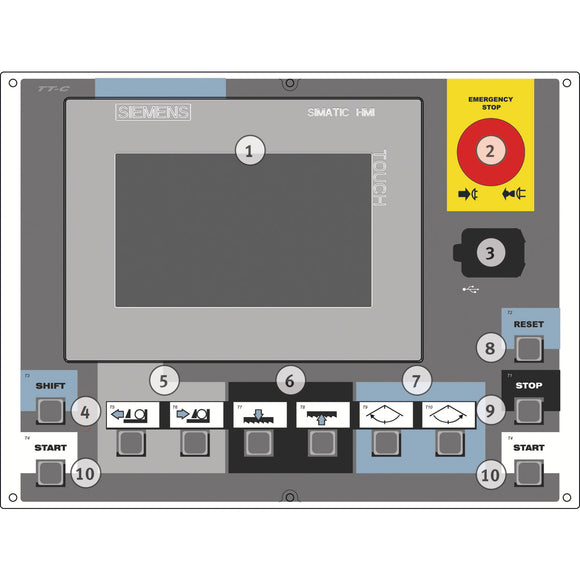

  • Operation on modern and powerful Siemens HMI multi-touch panel


.
  • Cutting range 0° bundle (tube) 750 x 460 mm
  • Cutting range 0° rectangular lying (hollow profile) 750 x 700 mm
  • Cutting range 0° round (solid material) 700 mm
  • Cutting range 0° round (tube) 700 mm
  • Frequency 50 Hz

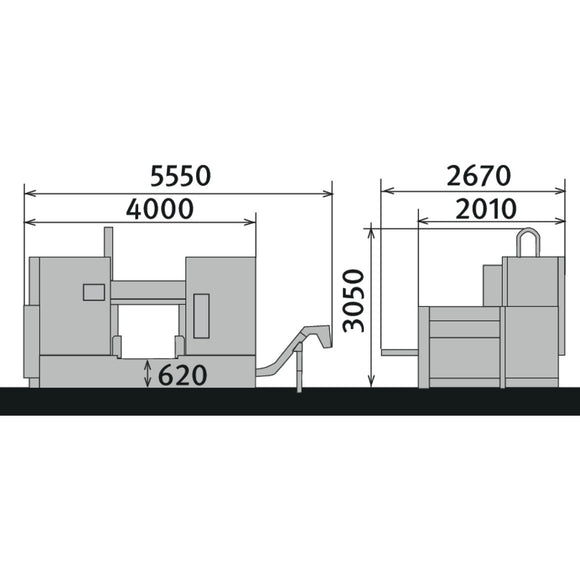

  • Height 3050 mm
  • Length 5550 mm
  • Motor power 11 kW
  • Net weight 5950 kg
  • Saw band length 7680 mm
  • Saw band speed(s) 15 – 80 m/min
  • Saw band thickness 1,6 mm
  • Saw band width 67 mm
  • Supply voltage 400 V
  • Table height material feed 620 mm
  • Width 2670 mm
  • bandsaw
  • operating tool
  • Workplace lighting

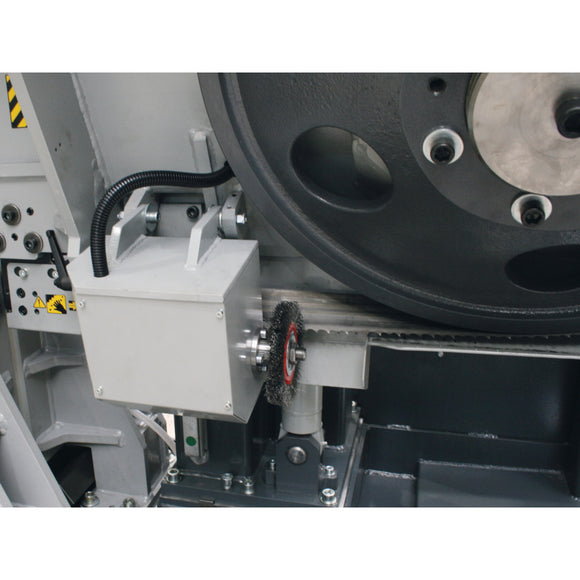

  • motorized chip brush
  • frequency converter
  • Coolant pump
  • Hydraulic band tensioning device
