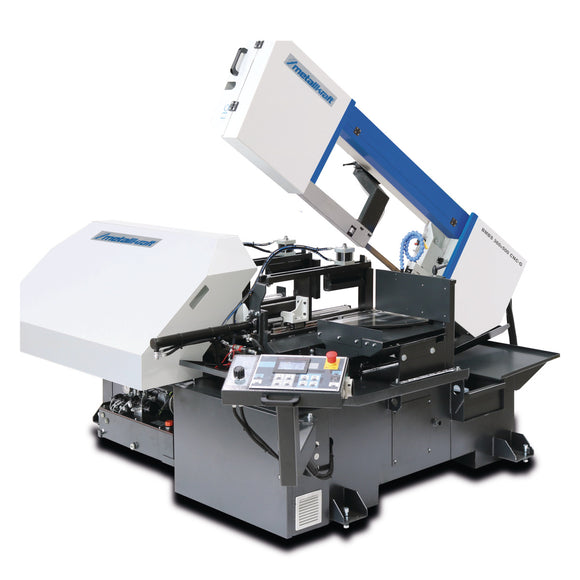

Fully automatic swing frame metal band saw BMBS 360x500 CNC-G

• Absorbed power 7,7 kW
• Cut-off length min. 3 mm
• Cutting angle from to 0 - 60 °
• Cutting range 0° bundle (tube) 500 x 220 mm
• Cutting range 0° rectangular lying (hollow profile) 500 x 360 mm
• Cutting range 0° round (solid material) 360 mm
• Cutting range 0° round (tube) 360 mm
• Efficiency 90 %
• Engine efficiency class IE2
• Engine power coolant pump 0,09 kW
• Engine power hydraulic pump 0,85 kW
• Frequency 50 Hz

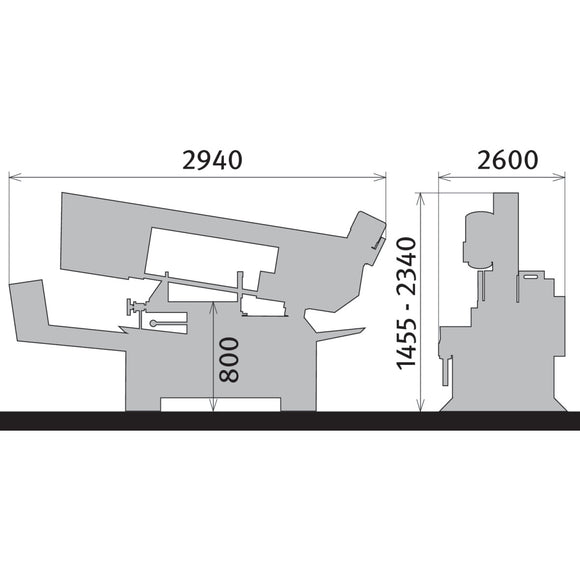

• Height 2340 mm
• Length 2940 mm
• Material diameter min. 50 mm
• Material feed max. 1000 / 9999 mm
• Material feed min. 3 mm
• Material feed rate 1.5 / 3 m/min
• Min. remaining workpiece length automatic 140 mm
• Motor power 3.0 kW
• Net weight 1500 kg
• Nominal operating mode drive motor S1
• Output power 7,7 kW
• Protection class 1
• Protection class drive motor IP55
• Saw band length 4780 mm
• Saw band speed(s) 20 – 100 m/min
• Saw band thickness 1,1 mm
• Saw band width 34 mm
• Sound power level DIN EN ISO 3744 65 dB (A)
• Sound power level DIN EN ISO 3746 67 dB (A)
• Supply voltage 400 V
• Total current consumption 10,3 A
• Width 2600 mm

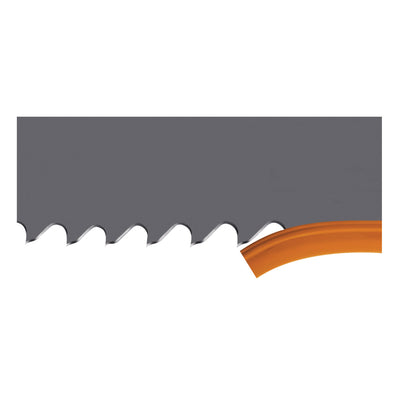

• Saw band
• Workplace lighting
• Operating tool
