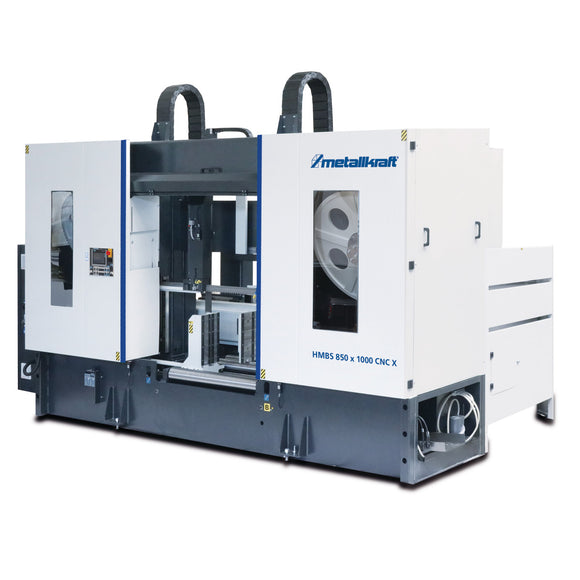

Fully automatic two-column horizontal metal band saw HMBS 850 x 1000 CNC X

• Cut-off length min. 30 mm
• Cutting range 0° bundle (tube) 1000 x 460 without bundle tensioner 1000 x 840 with bundle tensioner mm
• Cutting range 0° rectangular lying (hollow profile) 1000 x 850 mm
• Cutting range 0° round (solid material) 850 mm
• Cutting range 0° round (tube) 850 mm
• Frequency 50 Hz

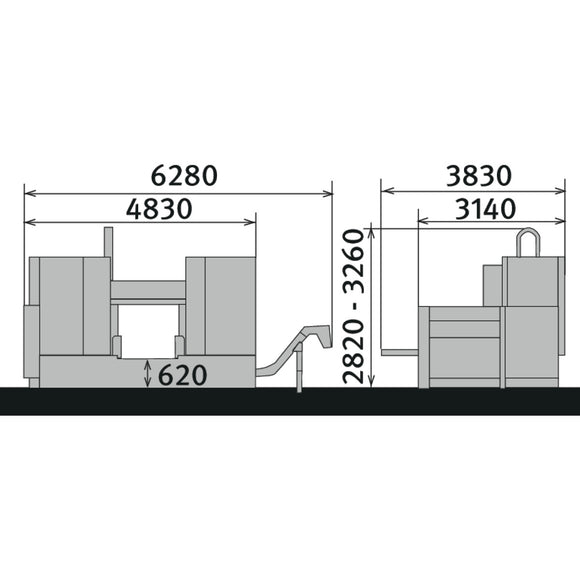

• Height 3260 mm
• Length 6280 mm
• Material diameter min. 185 mm
• Material feed max. 19999 mm
• Material feed max. at 1 x feed rate 990 mm
• Material feed min. 3 mm
• Min. remaining workpiece length automatic 215 mm
• Min. residual workpiece length 110 mm
• Motor power 11.0 kW
• Net weight 11800 kg
• Saw band length 9080 mm
• Saw band speed(s) 15 – 80 m/min
• Saw band thickness 1,6 mm
• Saw band width 67 mm
• Supply voltage 400 V
• Table height material feed 620 mm
• Width 3830 mm

• Saw band
• Operating tool
• Workplace lighting
• Chip conveyor
• Frequency converter
• Material feed 990 mm
• Coolant pump
