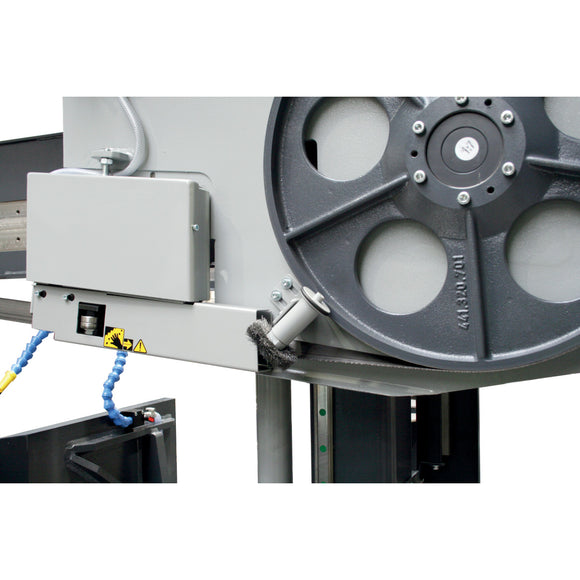

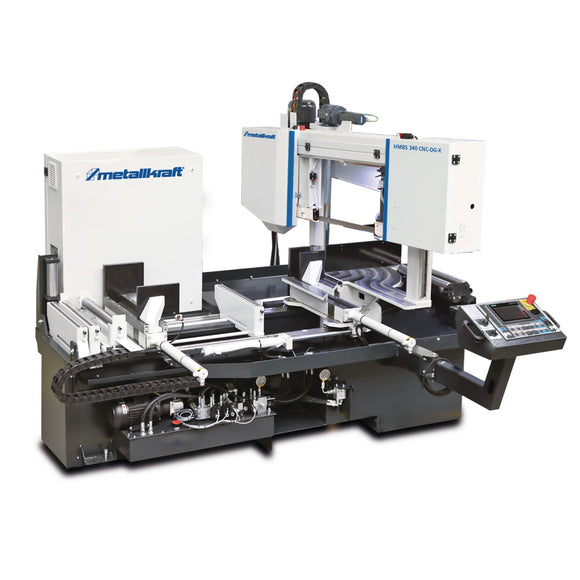

Fully automatic two-column horizontal metal band saw HMBS 340 CNC-DG-X

• Absorbed power 4,5 kW
• Cut-off length min. 1 mm
• Cutting angle 4 °
• Cutting range +45° rectangular horiz. (hollow profile) 350 x 340 mm
• Cutting range +45° round (full material) 350 mm
• Cutting range +45° round (tube) 350 mm
• Cutting range 0° bundle (tube) 500 x 180 mm
• Cutting range 0° rectangular horizontal vertical section 500 x 340 mm
• Cutting range 0° rectangular lying (hollow profile) 500 x 340 mm
• Cutting range 0° round (solid material) 350 mm
• Cutting range 0° round (tube) 350 mm
• Engine power coolant pump 0,12 kW
• Engine power hydraulic pump 0,6 kW
• Frequency 50 Hz

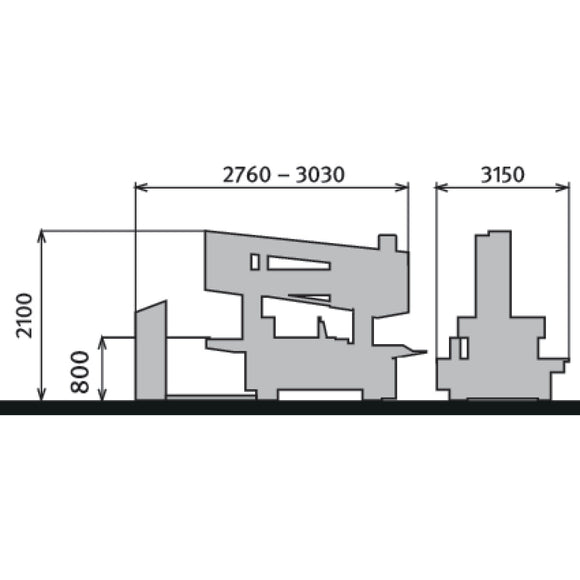

• Height 2000 mm
• Height max. 2100 mm
• Length 3030 mm
• Length max. 3050 mm
• Lifting the saw bow 350 mm
• Material diameter min. 30 mm
• Material feed max. 9999 mm
• Material feed max. at 1 x feed rate 1000 mm
• Material feed min. 1 mm
• Material feed rate 3.82 m/min
• Max. width/depth approx.. 3050 mm
• Min. remaining workpiece length 30° 310 mm
• Min. remaining workpiece length automatic 310 mm
• Min. residual workpiece length 100 mm
• Min. residual workpiece length 45° 750 mm
• Motor power 3.0 kW
• Net weight 2150 kg
• Nominal operating mode drive motor S1
• Protection class drive motor IP 55
• Saw band length 4780 mm
• Saw band speed(s) 20 – 100 m/min
• Saw band thickness 1,1 mm
• Saw band width 34 mm
• Supply voltage 400 V
• Table height material feed 800 mm
• Total connected load 8,5 kW
• Total current consumption 12,3 A
• Width 3150 mm

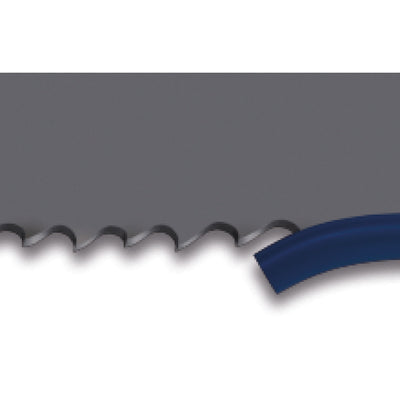

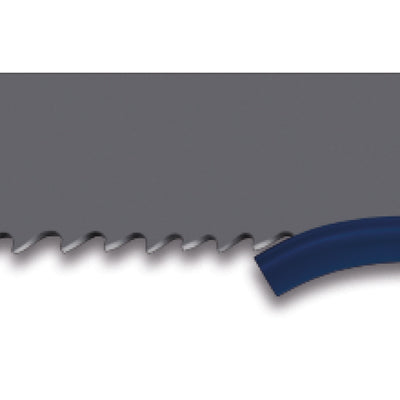

• Saw band
• Coolant pump
• Operating tool
• Workplace lighting
• Safety light barrier
