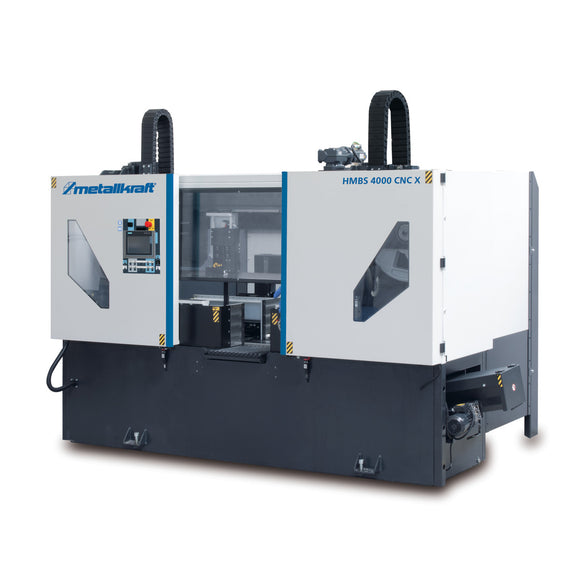

Fully automatic two-column horizontal metal band saw HMBS 4000 CNC X

• Absorbed power 17,7 kW
• Cut-off length min. 10 mm
• Cutting range 0° bundle rectangular lying (hollow profile) 450 x 300 mm
• Cutting range 0° rectangular lying (hollow profile) 450 x 450 mm
• Cutting range 0° round (solid material) 450 mm
• Cutting range 0° round (tube) 450 mm
• Engine power coolant pump 0,16 kW
• Frequency 50 Hz
• Height 2340 mm
• Length 3300 mm
• Material diameter min. 30 mm
• Material feed max. 9999 mm
• Material feed max. at 1 x feed rate 730 mm
• Material feed min. 3 mm
• Min. remaining workpiece length automatic 90 mm
• Motor power 9 kW
• Net weight 6100 kg
• Saw band length 6830 mm
• Saw band speed(s) 15 – 150 mm
• Saw band thickness 1,3 mm
• Saw band width 54 mm
• Supply voltage 400 V
• Total current consumption 25,5 A
• Width 2100 mm

• Saw band
• Operating tool
• Two LED workplace lights
• ARP system
• Frequency converter
• Motorized chip removal brush
• Automatic belt guide adjustment
• Chip conveyor
