Horizontal metal band saw HMBS 440 CNC CALIBER-1
Horizontal metal band saw HMBS 440 CNC CALIBER-2
Horizontal metal band saw HMBS 440 CNC CALIBER-3
Horizontal metal band saw HMBS 440 CNC CALIBER-4
Horizontal metal band saw HMBS 440 CNC CALIBER-5
Horizontal metal band saw HMBS 440 CNC CALIBER-6
Horizontal metal band saw HMBS 440 CNC CALIBER-7
Horizontal metal band saw HMBS 440 CNC CALIBER-8

Horizontal metal band saw HMBS 440 CNC CALIBER

€58.535,70 EUR (€47.590,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3693110 Barcode: 4036351335795

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

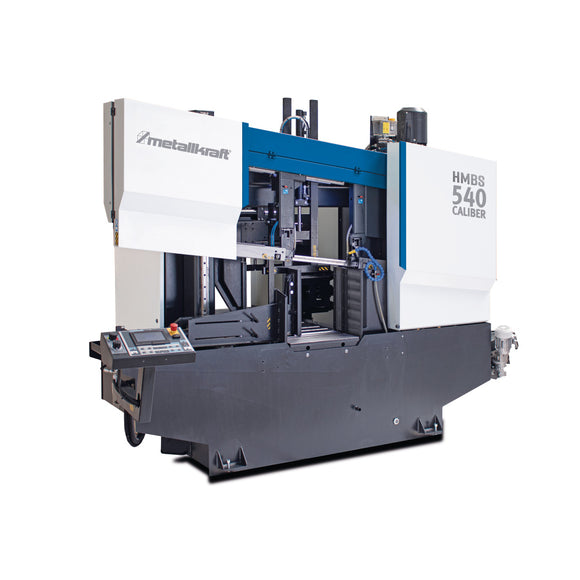

Horizontal metal band saw HMBS.
  • Two-column guided bandsaw for sawing solid bars and bar profiles
  • Mitsubishi FX 5 control system with simple operation via 7" touchscreen
  • With
  • Cutting movement via hydraulic cylinder
  • With BRP (cutting feed control) -> if a set ampere limit is exceeded, the feed movement is stopped while the saw blade continues to run in order to convey chips out of the cutting channel. Once the normal load is reached, the sawing process continues
  • Robust machine body and the smallest possible distances between the saw blade, machine guide and workpiece minimize vibrations for maximum sawing performance
  • Infinitely variable cutting speed from 15 - 150 m/min

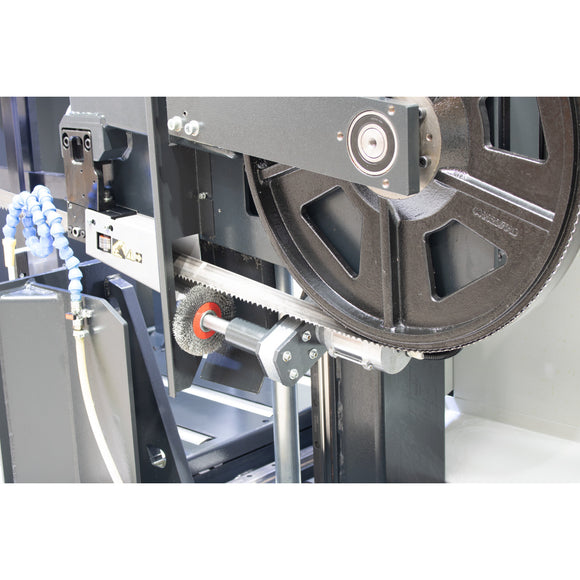

  • Saw blade drive via bevel gearbox, asynchronous motor and frequency converter
  • Material is clamped in front of and behind the cut using a two-part vice
  • Pressure adjustment of the hydraulic vice clamping via control valve with pressure gauge
  • .
  • Chip container ✔
  • Chip conveyor ✔

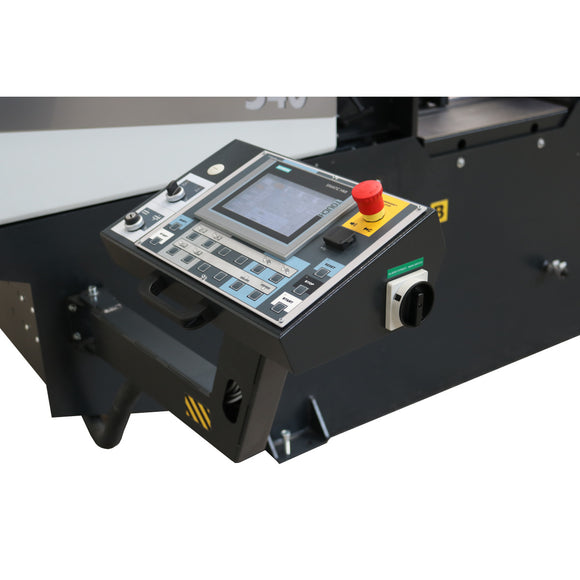

  • Control Mitsubishi FX 5 with 7" touchscreen
  • Coolant pump ✔
  • Cut-off length min. 10 mm
  • Cutting angle 7 °
  • Cutting range 0° bundle (tube) 460 x 400 mm
  • Cutting range 0° rectangular lying (hollow profile) 460 x 400 mm
  • Cutting range 0° round (solid material) 440 mm
  • Engine power coolant pump 0,12 kW
  • Engine power hydraulic pump 0,75 kW
  • Feed roller conveyor 700 mm
  • Frequency 50 Hz

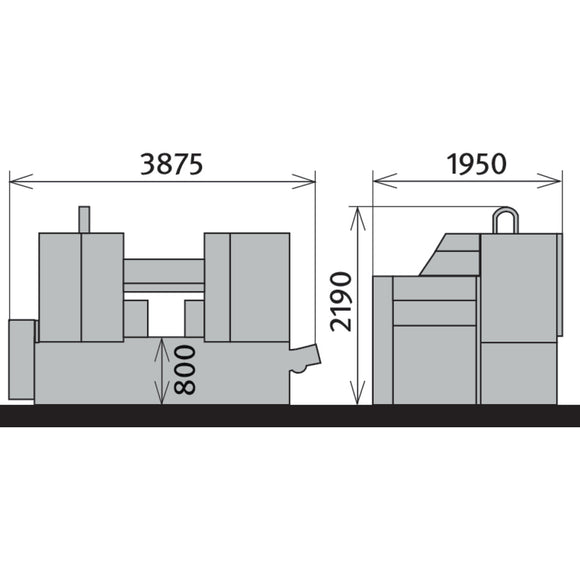

  • Height 2190 mm
  • Length 3875 mm
  • Material diameter min. 10 mm
  • Material feed max. 9999 mm
  • Material feed max. at 1 x feed rate 715 mm
  • Material feed min. 3 mm
  • Material feed rate 5 m/min
  • Min. remaining workpiece length automatic 200 mm
  • Min. residual workpiece length 30 mm
  • Motor power 4 kW
  • Net weight 2785 kg
  • Saw band length 5360 mm
  • Saw band speed(s) 15 - 150 m/min
  • Saw band thickness 1,1 mm
  • Saw band width 34 mm
  • Supply voltage 400 V
  • Width 1950 mm
  • Work table height 800 mm

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

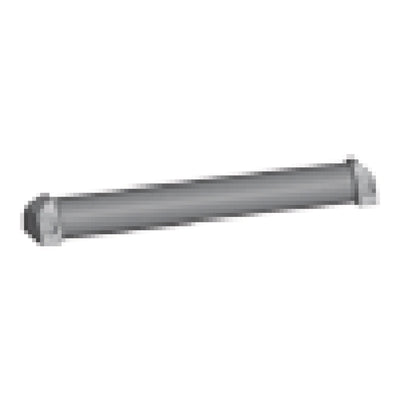

Additional role 520 mm Additional role 520 mm - 0

Additional role 520 mm

Metallkraft

€343,17 EUR
Enquire
Workplace mat 3040 x 940 mm Workplace mat 3040 x 940 mm - 0

Workplace mat 3040 x 940 mm

Unicraft

€633,45 EUR
Enquire
Workplace mat 1840 x 940 mm Workplace mat 1840 x 940 mm - 0

Workplace mat 1840 x 940 mm

Unicraft

€375,15 EUR
Enquire

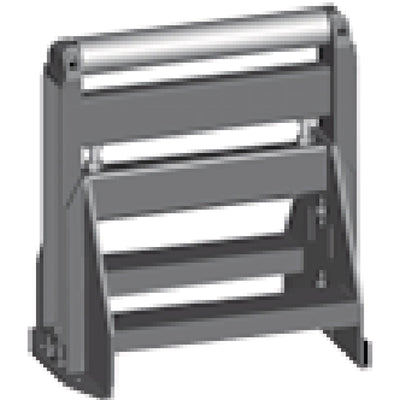

Roller support 520 mm, height adjustable, support load max. 700 kg Roller support 520 mm, height adjustable, support load max. 700 kg - 0

Roller support 520 mm, height adjustable, support load max. 700 kg

Metallkraft

€1.831,47 EUR
Enquire

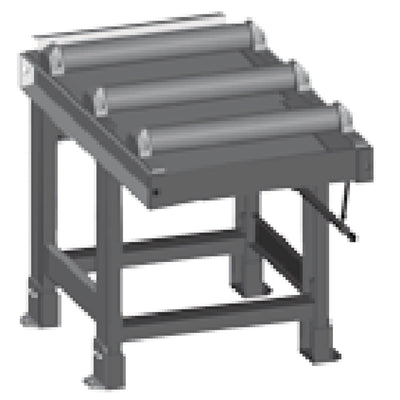

Roller conveyor 1000 x 520 mm Roller conveyor 1000 x 520 mm - 0
