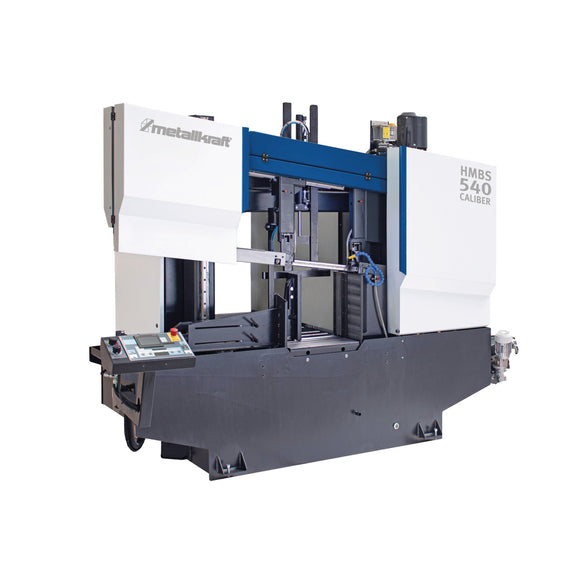

Horizontal metal band saw HMBS 540 HA CALIBER-1
Horizontal metal band saw HMBS 540 HA CALIBER-2
Horizontal metal band saw HMBS 540 HA CALIBER-3
Horizontal metal band saw HMBS 540 HA CALIBER-4
Horizontal metal band saw HMBS 540 HA CALIBER-5
Horizontal metal band saw HMBS 540 HA CALIBER-6
Horizontal metal band saw HMBS 540 HA CALIBER-7
Horizontal metal band saw HMBS 540 HA CALIBER-8

Horizontal metal band saw HMBS 540 HA CALIBER

€53.566,50 EUR (€43.550,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3693200 Barcode: 4036351331643

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Horizontal metal band saw HMBS.
  • Two-column guided band saw for sawing solid bar material and bar profilesMitsubishi
  • FX 5 control system with simple operation via 4. 3" touchscreenCutting movement
  • via hydraulic cylindersWith
  • BRP (cutting feed control): if a set ampere limit is exceeded, the feed movement is stopped while the saw blade continues to run in order to convey chips out of the cutting channel. Once the normal load is reached, the sawing process continuesRobust
  • machine body and the smallest possible distances between the saw blade, machine guide and workpiece minimize vibrations for maximum sawing performanceInfinitely variable
  • cutting speed from 15 - 150 m/minSaw blade drive

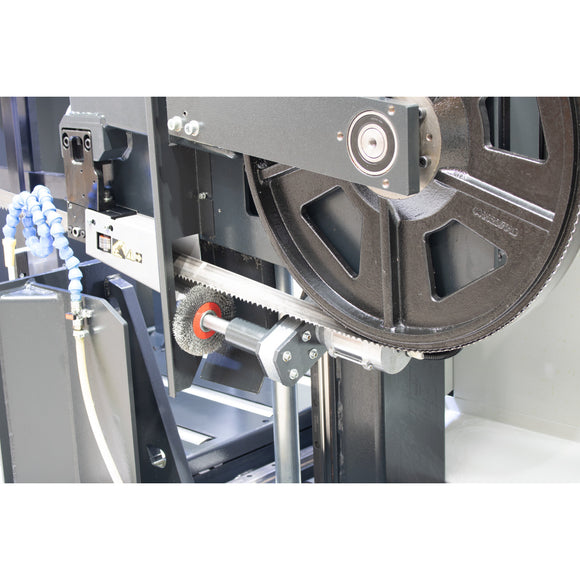

  • via bevel gearbox, Asynchronous motor and frequency converterClamping

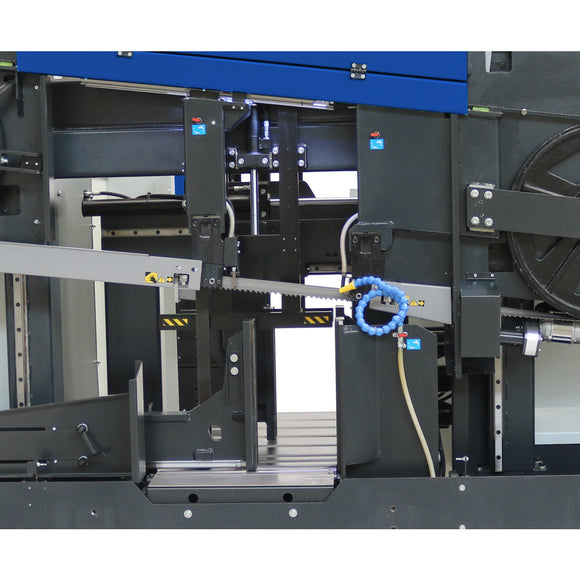

  • of the material in front of and behind the cut by means of a two-part vicePressure adjustment
  • .

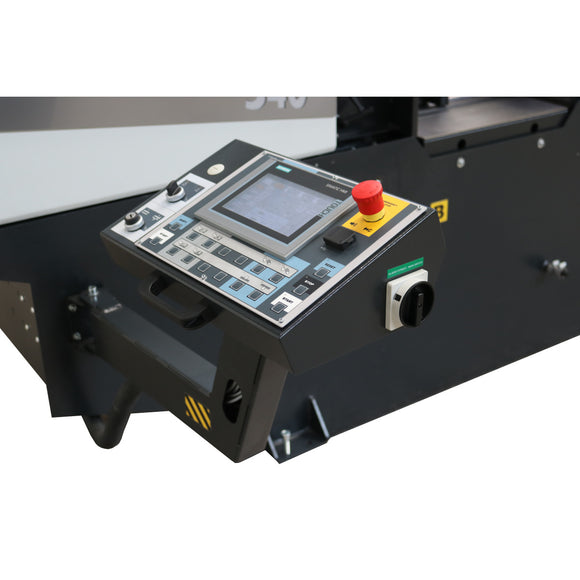

  • Control Mitsubishi FX 5 with 4.3" touchscreen
  • Coolant pump ✔
  • Cut-off length min. 15 mm
  • Cutting angle 7 °
  • Cutting range 0° bundle (tube) 550 x 460 mm
  • Cutting range 0° rectangular lying (hollow profile) 550 x 500 mm
  • Cutting range 0° round (solid material) 550 mm
  • Engine power coolant pump 0,12 kW
  • Engine power hydraulic pump 0,75 kW
  • Frequency 50 Hz

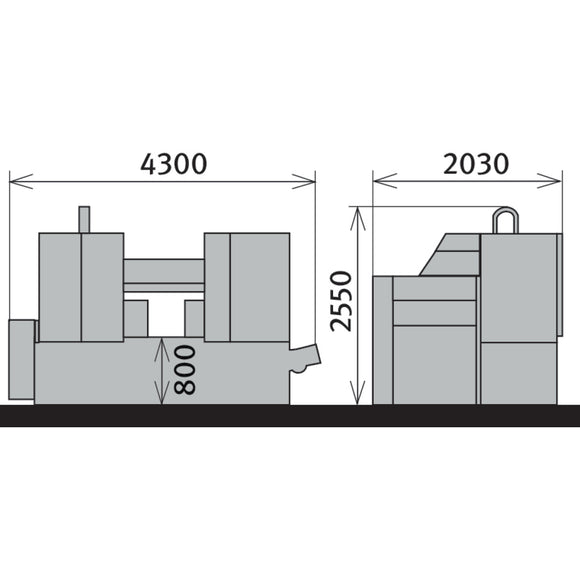

  • Height 2550 mm
  • Length 4300 mm
  • Material diameter min. 10 mm
  • Min. residual workpiece length 40 mm
  • Motor power 5.5 kW
  • Net weight 3235 kg
  • Saw band length 6200 mm
  • Saw band speed(s) 15 - 150 m/min
  • Saw band thickness 1,3 mm
  • Saw band width 41 mm
  • Supply voltage 400 V
  • Width 2030 mm
  • Work table height 800 mm

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Roller conveyor 2000 x 600 mm Roller conveyor 2000 x 600 mm - 0

Roller conveyor 2000 x 600 mm

Metallkraft

€4.286,55 EUR
Enquire
Stop carriage for system with scale Stop carriage for system with scale - 0

Stop carriage for system with scale

Metallkraft

€1.162,35 EUR
Enquire
Roller support 620 mm, height adjustable, support load max. 1000 kg Roller support 620 mm, height adjustable, support load max. 1000 kg - 0

Roller support 620 mm, height adjustable, support load max. 1000 kg

Metallkraft

€1.831,47 EUR
Enquire
Rail extension for stop with scale 1m, intermediate piece Rail extension for stop with scale 1m, intermediate piece - 0

Rail extension for stop with scale 1m, intermediate piece

Metallkraft

€350,55 EUR
Enquire

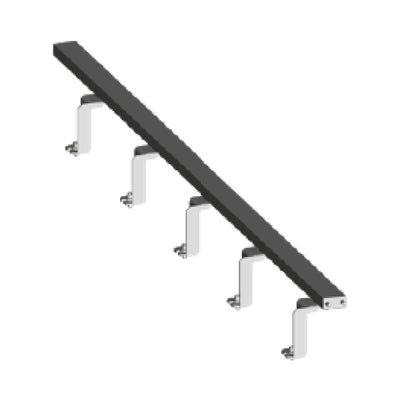

Extension stop rail for stop with digital display 1m, intermediate piece Extension stop rail for stop with digital display 1m, intermediate piece - 0
