Motorized swing bending machine MSBM 4020-30 PRO-1
Motorized swing bending machine MSBM 4020-30 PRO-2
Motorized swing bending machine MSBM 4020-30 PRO-3
Motorized swing bending machine MSBM 4020-30 PRO-4

Motorized swing bending machine MSBM 4020-30 PRO

€93.295,50 EUR (€75.850,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3779144 Barcode: 4036351215776

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

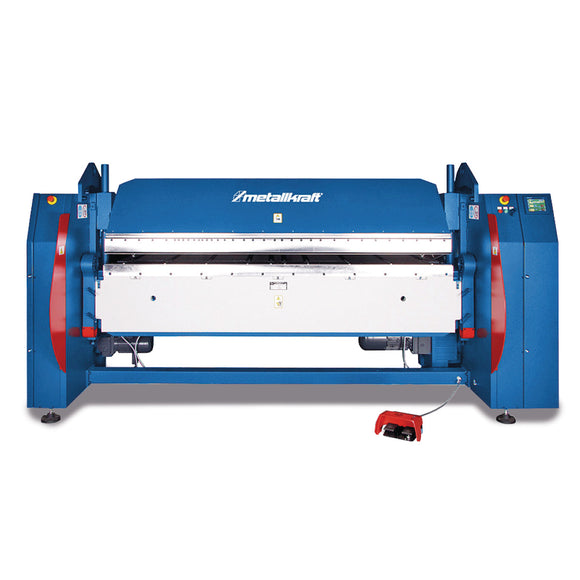

Motorized swing bending machine MSBM PRO.
  • With foot control
  • Heavy, compact welded construction
  • Powerful drive by Lenzemotors
  • With continuous sharp-bending rail
  • Seriesßig with manual adjustment of the bending angle
  • Especially low-maintenance
  • Clamping of the workpiece is motor-driven
  • SH models with high, segmented cast base tools
  • DUO models with continuous sharp-bending rail and high, segmented goat foot tools
Available on request
  • Standard tools hardened
  • Sharp bending bar and bending bar hardened
  • Segmented tools and bending bar hardened
  • Segmented cast foot tools and bending bar hardened
Quality

.
  • Beam motor output 2.2 kW
  • Bending capacity (700 N/mm²) 2.2 mm
  • Bending capacity (aluminium) 3.6 mm
  • Bending capacity 400 N/mm² 3.0 mm
  • Bending motor output 5.5 kW
  • Height 1590 mm
  • Length 5120 mm
  • Max. passageway between top + bottom beam 200 mm
  • Max. working width 4020 mm
  • Net weight 7460 kg
  • Width 1160 mm
