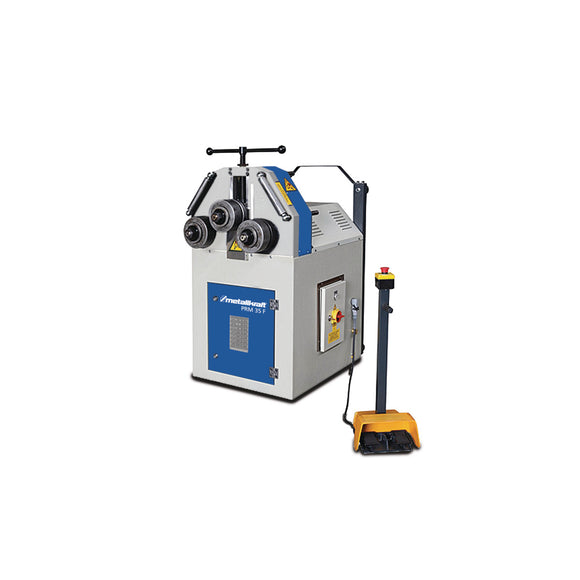

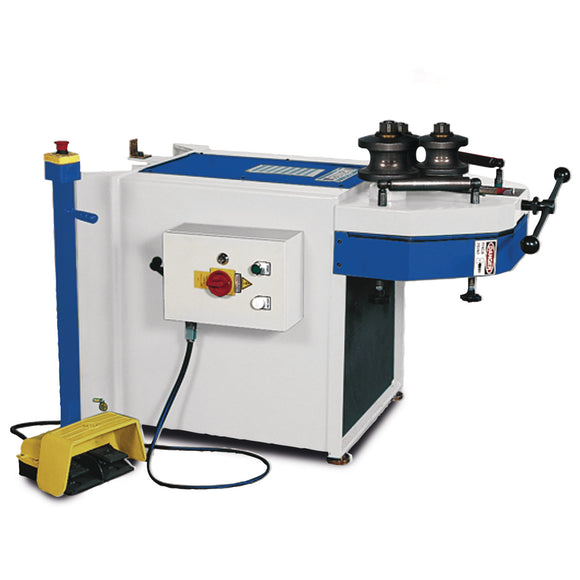

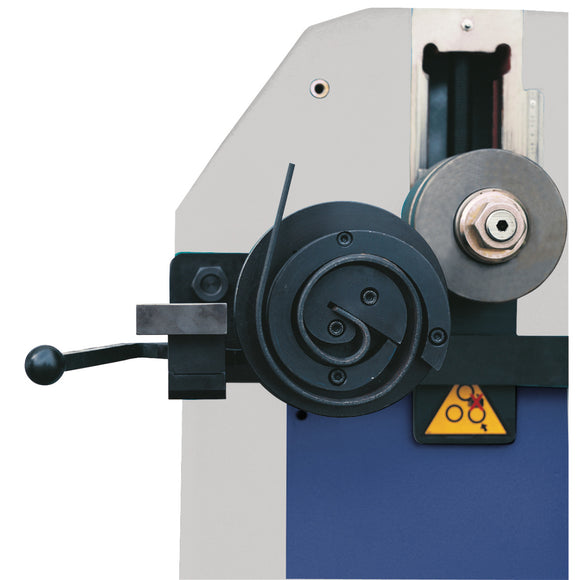

Motorized ring bending machine PRM 35 F

• Explanations for bending performance, profile type optional The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7
• Explanations for bending performance, profile type standard The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7
• Flat material heavy axis dimensions bending Ø (yield point 24 kg/mm²) [1] 60 x 10 mm
• Flat material heavy axis dimensions bending Ø (yield point 24 kg/mm²) [2] 40 x 10 mm
• Flat material heavy axis min. bending Ø (yield point 24 kg/mm²) [1] 500 mm
• Flat material heavy axis min. bending Ø (yield point 24 kg/mm²) [2] 400 mm
• Flat material light axis dimensions bending Ø (yield point 24 kg/mm²) [1] 100 x 15 mm
• Flat material light axis dimensions bending Ø (yield point 24 kg/mm²) [2] 60 x 10 mm
• Flat material light axis min. bending Ø (yield point 24 kg/mm²) [1] 450 mm
• Flat material light axis min. bending Ø (yield point 24 kg/mm²) [2] 350 mm
• Frequency 50 Hz
• Height 1400 mm
• Length 750 mm
• Motor power 1,5 kW
• Net weight 400 kg
• Roller diameter bottom 155 mm
• Roller diameter top 155 mm
• Round profile dimensions (yield point 24 kg/mm²) [1] 35 mm
• Round profile dimensions (yield point 24 kg/mm²) [2] 30 mm
• Round profile min. bending Ø (yield point 24 kg/mm²) [1] 600 mm
• Round profile min. bending Ø (yield point 24 kg/mm²) [2] 400 mm
• Round tube dimensions (yield point 24 kg/mm²) [1] 50.8 x 2.9 mm
• Round tube dimensions (yield point 24 kg/mm²) [2] 25.4 x 2.3 mm
• Round tube min. bending Ø (yield point 24 kg/mm²) [1] 1000 mm
• Round tube min. bending Ø (yield point 24 kg/mm²) [2] 350 mm
• Shaft diameter bottom 50 mm
• Shaft diameter top 50 mm
• Speed 4.5 m/min
• Square material dimensions (yield point 24 kg/mm²) [1] 35 mm
• Square material dimensions (yield point 24 kg/mm²) [2] 20 mm
• Square material min. bending Ø (yield point 24 kg/mm²) [1] 900 mm
• Square material min. bending Ø (yield point 24 kg/mm²) [2] 300 mm
• Square tube dimensions (yield point 24 kg/mm²) [1] 50 x 3 mm
• Square tube dimensions (yield point 24 kg/mm²) [2] 40 x 3 mm
• Square tube heavy axis dimensions bending Ø (yield point 24 kg/mm²) [1] 70 x 30 x 2 mm
• Square tube heavy axis dimensions bending Ø (yield point 24 kg/mm²) [2] 50 x 40 x 3 mm
• Square tube heavy axis min. bending Ø (yield point 24 kg/mm²) [1] 1200 mm
• Square tube heavy axis min. bending Ø (yield point 24 kg/mm²) [2] 1200 mm
• Square tube min. bending Ø (yield point 24 kg/mm²) [1] 1700 mm
• Square tube min. bending Ø (yield point 24 kg/mm²) [2] 600 mm
• Supply voltage 400 V
• T profile inside rib min. bending Ø (yield point 24 kg/mm²) [1] 700 mm
• T profile inside rib min. bending Ø (yield point 24 kg/mm²) [2] 500 mm
• T profile outside rib min. bending Ø (yield point 24 kg/mm²) [1] 700 mm
• T profile outside rib min. bending Ø (yield point 24 kg/mm²) [2] 500 mm
• T profile top rib min. bending Ø (yield point 24 kg/mm²) [1] 700 mm
• T profile top rib min. bending Ø (yield point 24 kg/mm²) [2] 500 mm
• UPN profile inside leg dimensions (yield point 24 kg/mm²) [1] UPN 80 mm
• UPN profile inside leg dimensions (yield point 24 kg/mm²) [2] UPN 30 mm
• UPN profile inside leg min. bending Ø (yield point 24 kg/mm²) [1] 1200 mm
• UPN profile inside leg min. bending Ø (yield point 24 kg/mm²) [2] 800 mm
• UPN profile inside rib dimensions (yield point 24 kg/mm²) [1] 60 x 7 mm
• UPN profile inside rib dimensions (yield point 24 kg/mm²) [2] 50 x 6 mm
• UPN profile outside leg dimensions (yield point 24 kg/mm²) [1] UPN 80 mm
• UPN profile outside leg dimensions (yield point 24 kg/mm²) [2] UPN 30 mm
• UPN profile outside leg min. bending Ø (yield point 24 kg/mm²) [1] 1000 mm
• UPN profile outside leg min. bending Ø (yield point 24 kg/mm²) [2] 700 mm
• UPN profile outside rib dimensions (yield point 24 kg/mm²) [1] 60 x 7 mm
• UPN profile outside rib dimensions (yield point 24 kg/mm²) [2] 50 x 6 mm
• UPN profile top rib dimensions (yield point 24 kg/mm²) [1] 60 x 7 mm
• UPN profile top rib dimensions (yield point 24 kg/mm²) [2] 50 x 6 mm
• Width 1000 mm
• isosceles angle profile inside dimensions (yield point 24 kg/mm²) [1] 50 x 50 x 6 mm
• isosceles angle profile inside dimensions (yield point 24 kg/mm²) [2] 30 x 30 x 3 mm
• isosceles angle profile inside leg min. bending Ø (yield point 24 kg/mm²) [1] 1000 mm
• isosceles angle profile outside dimensions (yield point 24 kg/mm²) [1] 50 x 50 x 5 mm
• isosceles angle profile outside dimensions (yield point 24 kg/mm²) [2] 40 x 40 x 5 mm
• isosceles angle profile outside leg min. bending Ø (yield point 24 kg/mm²) [1] 800 mm
• isosceles angle profile outside leg min. bending Ø (yield point 24 kg/mm²) [2] 600 mm
