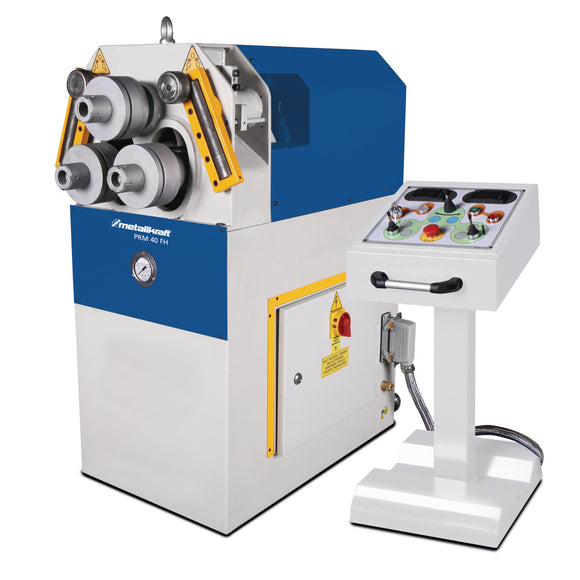

Ring bending machine PRM 40 FH

• Explanations for bending performance, profile type optional The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7
• Explanations for bending performance, profile type standard The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7
• Flat material heavy axis dimensions bending Ø (yield point 24 kg/mm²) [1] 35 x 8 mm
• Flat material heavy axis min. bending Ø (yield point 24 kg/mm²) [1] 300 mm
• Flat material light axis dimensions bending Ø (yield point 24 kg/mm²) [1] 50 x 12 mm
• Flat material light axis min. bending Ø (yield point 24 kg/mm²) [1] 400 mm
• Frequency 50 Hz
• Height 1250 mm
• Length 1050 mm
• Motor power 1,1 kW
• Net weight 350 kg
• Roller diameter bottom 137 mm
• Roller diameter top 137 mm
• Round profile dimensions (yield point 24 kg/mm²) [1] 22 mm
• Round profile min. bending Ø (yield point 24 kg/mm²) [1] 200 mm
• Round tube dimensions (yield point 24 kg/mm²) [1] 25.4 x 2.3 mm
• Round tube min. bending Ø (yield point 24 kg/mm²) [1] 300 mm
• Shaft diameter bottom 35 mm
• Shaft diameter top 35 mm
• Speed 7 m/min
• Square material dimensions (yield point 24 kg/mm²) [1] 18 mm
• Square material min. bending Ø (yield point 24 kg/mm²) [1] 250 mm
• Square tube dimensions (yield point 24 kg/mm²) [1] 25 x 2 mm
• Square tube heavy axis dimensions bending Ø (yield point 24 kg/mm²) [1] 30 x 15 x 2.5 mm
• Square tube heavy axis min. bending Ø (yield point 24 kg/mm²) [1] 500 mm
• Square tube min. bending Ø (yield point 24 kg/mm²) [1] 450 mm
• Supply voltage 400 V
• T profile inside rib min. bending Ø (yield point 24 kg/mm²) [1] 300 mm
• T profile outside rib min. bending Ø (yield point 24 kg/mm²) [1] 300 mm
• T profile top rib min. bending Ø (yield point 24 kg/mm²) [1] 400 mm
• UPN profile inside leg dimensions (yield point 24 kg/mm²) [1] U30x15 mm
• UPN profile inside leg min. bending Ø (yield point 24 kg/mm²) [1] 500 mm
• UPN profile inside rib dimensions (yield point 24 kg/mm²) [1] 35 x 5 mm
• UPN profile outside leg dimensions (yield point 24 kg/mm²) [1] UPN 40x20 mm
• UPN profile outside leg dimensions (yield point 24 kg/mm²) [2] UPN 35 x 18
• UPN profile outside leg min. bending Ø (yield point 24 kg/mm²) [1] 350 mm
• UPN profile outside leg min. bending Ø (yield point 24 kg/mm²) [2] 500 mm
• UPN profile outside rib dimensions (yield point 24 kg/mm²) [1] 30 x 5 mm
• UPN profile top rib dimensions (yield point 24 kg/mm²) [1] 35 x 5 mm
• Width 500 mm
• isosceles angle profile inside dimensions (yield point 24 kg/mm²) [1] 30 x 30 x 4 mm
• isosceles angle profile inside leg min. bending Ø (yield point 24 kg/mm²) [1] 550 mm
• isosceles angle profile outside dimensions (yield point 24 kg/mm²) [1] 35 x 35 x 5 mm
• isosceles angle profile outside leg min. bending Ø (yield point 24 kg/mm²) [1] 400 mm

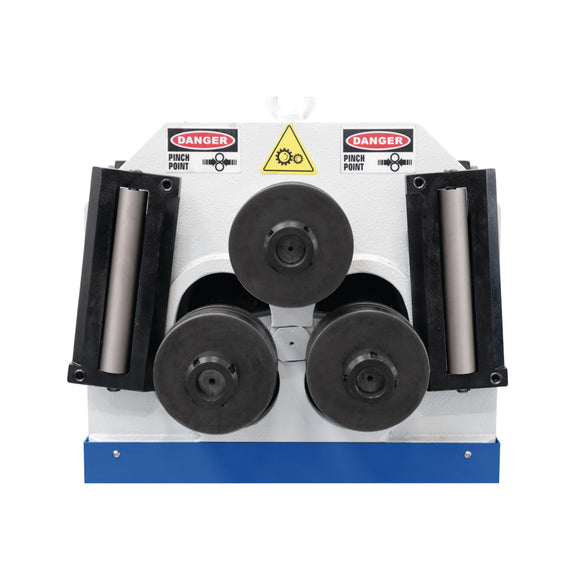

• Standard bending rolls
• Digital displays for feed rollers

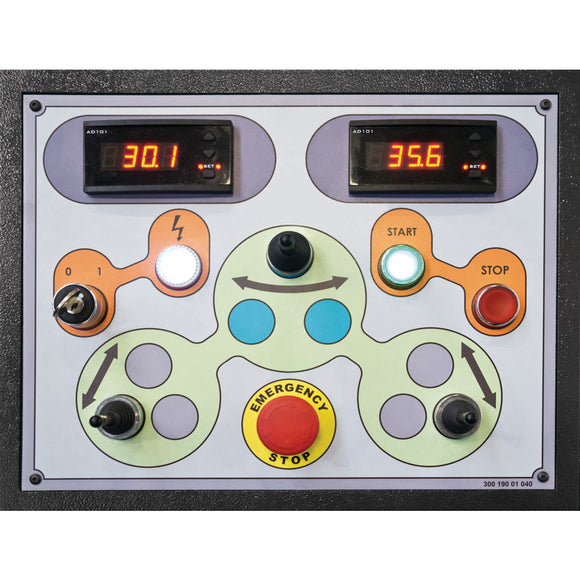

• mobile control panel

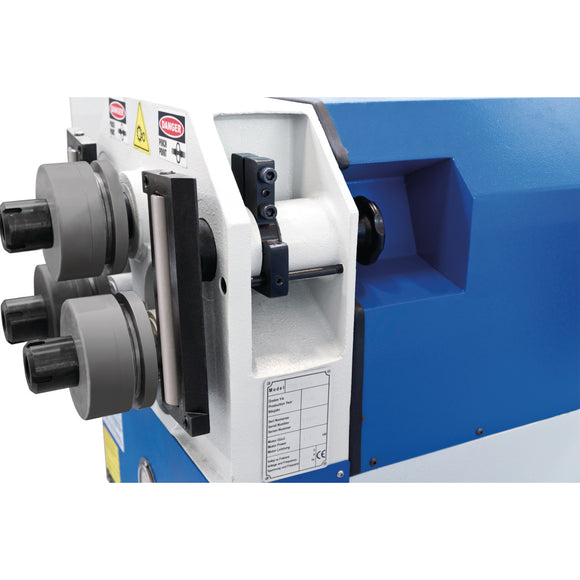

• straightening rollers
• substructure
