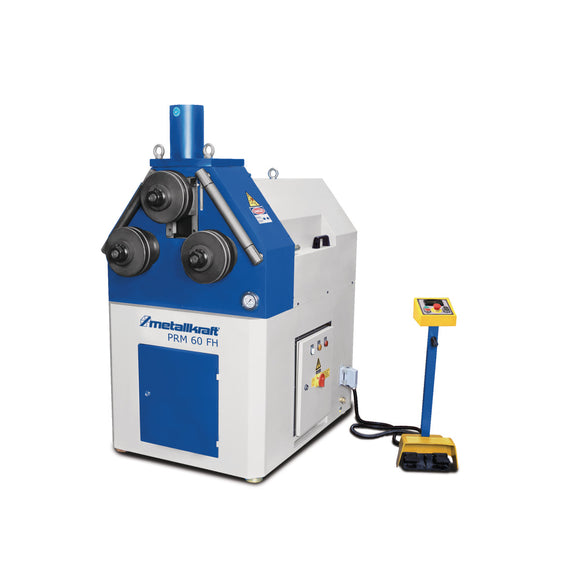

Hydraulic ring bending machine PRM 60 FH

• Explanations for bending performance, profile type optional The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7
• Explanations for bending performance, profile type standard The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7
• Flat material heavy axis dimensions bending Ø (yield point 24 kg/mm²) [1] 80 x 20 mm
• Flat material heavy axis dimensions bending Ø (yield point 24 kg/mm²) [2] 40 x 10 mm
• Flat material heavy axis min. bending Ø (yield point 24 kg/mm²) [1] 1200 mm
• Flat material heavy axis min. bending Ø (yield point 24 kg/mm²) [2] 400 mm
• Flat material light axis dimensions bending Ø (yield point 24 kg/mm²) [1] 120 x 25 mm
• Flat material light axis dimensions bending Ø (yield point 24 kg/mm²) [2] 50 x 10 mm
• Flat material light axis min. bending Ø (yield point 24 kg/mm²) [1] 600 mm
• Flat material light axis min. bending Ø (yield point 24 kg/mm²) [2] 400 mm
• Frequency 50 Hz
• Height 1650 mm
• Hydraulic pressure 16 t
• Length 1000 mm
• Motor power 1.5 kW
• Net weight 950 kg
• Roller diameter bottom 215 mm
• Roller diameter top 215 mm
• Shaft diameter bottom 60 mm
• Shaft diameter top 60 mm
• Speed 4 m/min
• Square material dimensions (yield point 24 kg/mm²) [1] 50 mm
• Square material dimensions (yield point 24 kg/mm²) [2] 20 mm
• Square material min. bending Ø (yield point 24 kg/mm²) [1] 800 mm
• Square material min. bending Ø (yield point 24 kg/mm²) [2] 400 mm
• Supply voltage 400 V
• T profile inside rib min. bending Ø (yield point 24 kg/mm²) [1] 1200 mm
• T profile inside rib min. bending Ø (yield point 24 kg/mm²) [2] 500 mm
• T profile outside rib min. bending Ø (yield point 24 kg/mm²) [1] 1000 mm
• T profile outside rib min. bending Ø (yield point 24 kg/mm²) [2] 400 mm
• T profile top rib min. bending Ø (yield point 24 kg/mm²) [1] 1000 mm
• T profile top rib min. bending Ø (yield point 24 kg/mm²) [2] 400 mm
• UPN profile inside leg dimensions (yield point 24 kg/mm²) [1] UPN 120
• UPN profile inside leg dimensions (yield point 24 kg/mm²) [2] UPN 60
• UPN profile inside leg min. bending Ø (yield point 24 kg/mm²) [1] 1200 mm
• UPN profile inside leg min. bending Ø (yield point 24 kg/mm²) [2] 600 mm
• UPN profile inside rib dimensions (yield point 24 kg/mm²) [1] 80 x 9 mm
• UPN profile inside rib dimensions (yield point 24 kg/mm²) [2] 40 x 5 mm
• UPN profile outside leg dimensions (yield point 24 kg/mm²) [1] UPN 120
• UPN profile outside leg dimensions (yield point 24 kg/mm²) [2] UPN 60
• UPN profile outside leg min. bending Ø (yield point 24 kg/mm²) [1] 800 mm
• UPN profile outside leg min. bending Ø (yield point 24 kg/mm²) [2] 500 mm
• UPN profile outside rib dimensions (yield point 24 kg/mm²) [1] 80 x 9 mm
• UPN profile outside rib dimensions (yield point 24 kg/mm²) [2] 40 x 5 mm
• UPN profile top rib dimensions (yield point 24 kg/mm²) [1] 80 x 9 mm
• UPN profile top rib dimensions (yield point 24 kg/mm²) [2] 40 x 5 mm
• Width 1400 mm

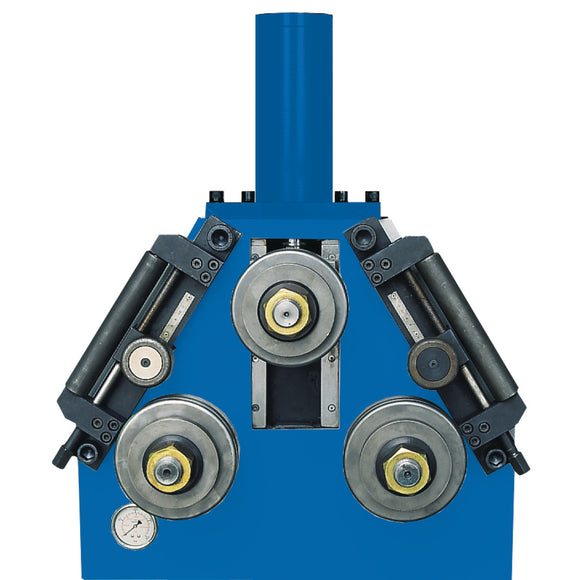

• Standard bending rolls
• mobile foot pedal for left-hand rotation with emergency stop
• straightening rollers

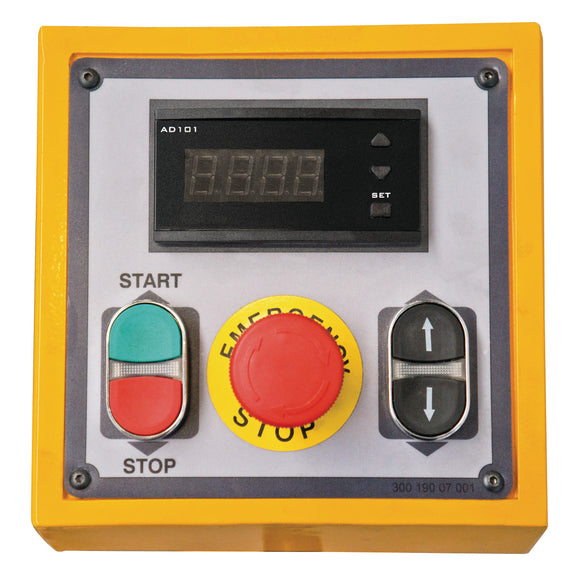

• Digital display for feed roller
