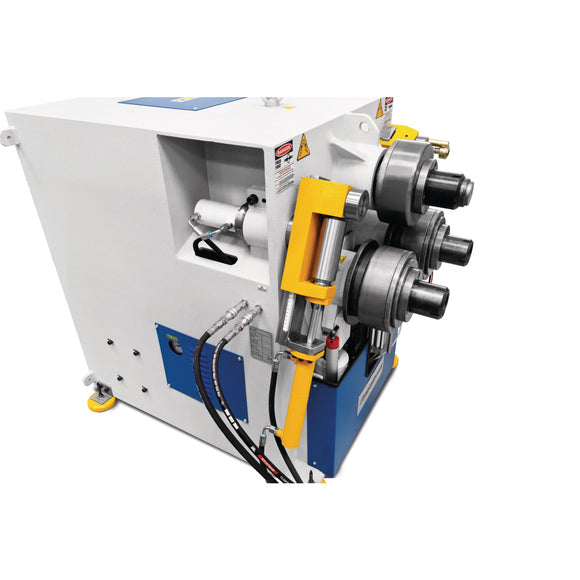

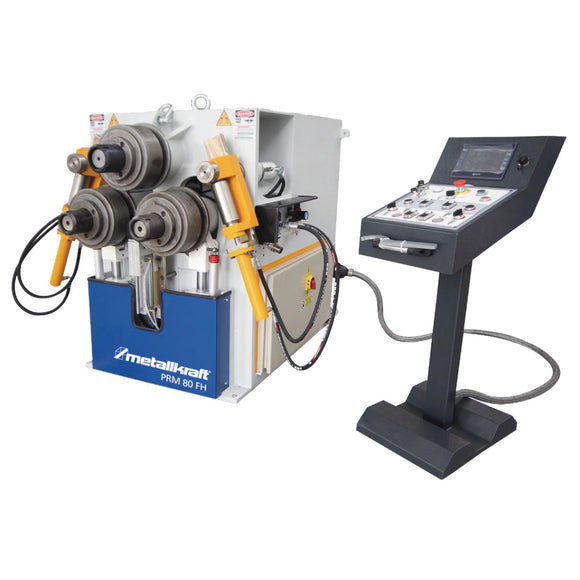

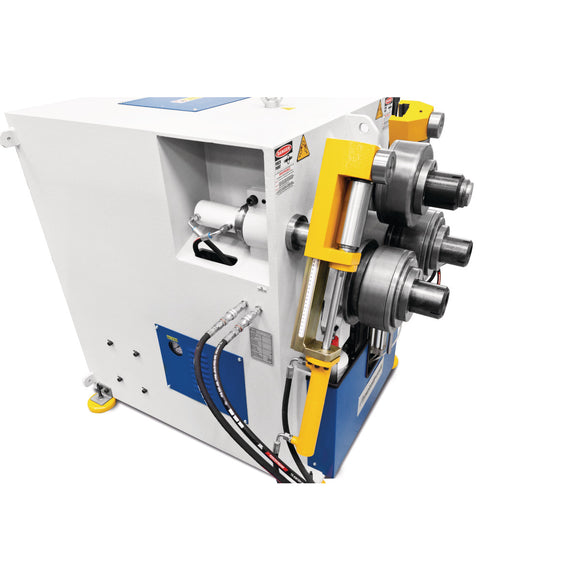

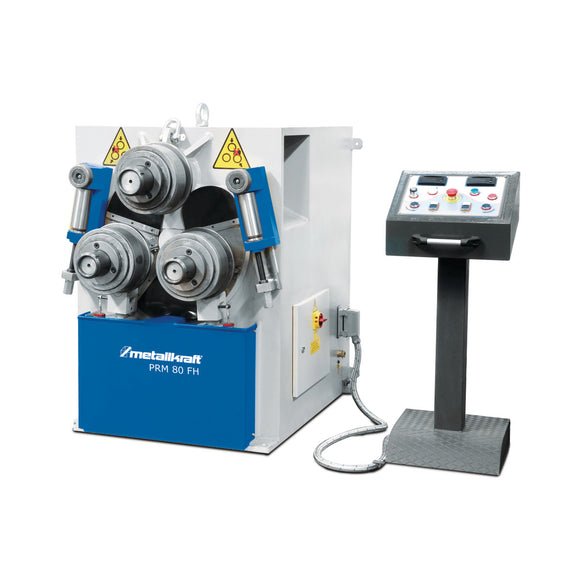

Hydraulic ring bending machine PRM 80 FH

• Explanations for bending performance, profile type optional The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7
• Explanations for bending performance, profile type standard The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7
• Flat material heavy axis dimensions bending Ø (yield point 24 kg/mm²) [1] 100 x 20 mm
• Flat material heavy axis dimensions bending Ø (yield point 24 kg/mm²) [2] 80 x 20 mm
• Flat material heavy axis dimensions bending Ø (yield point 24 kg/mm²) [3] 30 x 10 mm
• Flat material heavy axis min. bending Ø (yield point 24 kg/mm²) [1] 2000 mm
• Flat material heavy axis min. bending Ø (yield point 24 kg/mm²) [2] 800 mm
• Flat material heavy axis min. bending Ø (yield point 24 kg/mm²) [3] 300 mm
• Flat material light axis dimensions bending Ø (yield point 24 kg/mm²) [1] 125 x 25 mm
• Flat material light axis dimensions bending Ø (yield point 24 kg/mm²) [2] 60 x 5 mm
• Flat material light axis min. bending Ø (yield point 24 kg/mm²) [1] 600 mm
• Flat material light axis min. bending Ø (yield point 24 kg/mm²) [2] 300 mm
• Frequency 50 Hz
• Height 1400 mm
• Length 1450 mm
• Motor power 4 kW
• Net weight 1700 kg
• Roller diameter bottom 245 mm
• Roller diameter top 245 mm
• Shaft diameter bottom 70 mm
• Shaft diameter top 80 mm
• Speed 6 m/min
• Square material dimensions (yield point 24 kg/mm²) [1] 45 mm
• Square material dimensions (yield point 24 kg/mm²) [2] 15 mm
• Square material min. bending Ø (yield point 24 kg/mm²) [1] 500 mm
• Square material min. bending Ø (yield point 24 kg/mm²) [2] 380 mm
• Supply voltage 400 V
• T profile inside rib min. bending Ø (yield point 24 kg/mm²) [1] 800 mm
• T profile inside rib min. bending Ø (yield point 24 kg/mm²) [2] 280 mm
• T profile outside rib min. bending Ø (yield point 24 kg/mm²) [1] 800 mm
• T profile outside rib min. bending Ø (yield point 24 kg/mm²) [2] 280 mm
• T profile top rib min. bending Ø (yield point 24 kg/mm²) [1] 800 mm
• T profile top rib min. bending Ø (yield point 24 kg/mm²) [2] 280 mm
• UPN profile inside leg dimensions (yield point 24 kg/mm²) [1] UPN 140
• UPN profile inside leg dimensions (yield point 24 kg/mm²) [2] UPN 120
• UPN profile inside leg dimensions (yield point 24 kg/mm²) [3] UPN 100
• UPN profile inside leg min. bending Ø (yield point 24 kg/mm²) [1] 1600 mm
• UPN profile inside leg min. bending Ø (yield point 24 kg/mm²) [2] 1000 mm
• UPN profile inside leg min. bending Ø (yield point 24 kg/mm²) [3] 800 mm
• UPN profile inside rib dimensions (yield point 24 kg/mm²) [1] 70 x 8 mm
• UPN profile inside rib dimensions (yield point 24 kg/mm²) [2] 25 x 3.5 mm
• UPN profile outside leg dimensions (yield point 24 kg/mm²) [1] UPN 140
• UPN profile outside leg dimensions (yield point 24 kg/mm²) [2] UPN 120
• UPN profile outside leg dimensions (yield point 24 kg/mm²) [3] UPN 100
• UPN profile outside leg min. bending Ø (yield point 24 kg/mm²) [1] 1600 mm
• UPN profile outside leg min. bending Ø (yield point 24 kg/mm²) [2] 900 mm
• UPN profile outside leg min. bending Ø (yield point 24 kg/mm²) [3] 600 mm
• UPN profile outside rib dimensions (yield point 24 kg/mm²) [1] 70 x 8 mm
• UPN profile outside rib dimensions (yield point 24 kg/mm²) [2] 25 x 3.5 mm
• UPN profile top rib dimensions (yield point 24 kg/mm²) [1] 80 x 9 mm
• UPN profile top rib dimensions (yield point 24 kg/mm²) [2] 25 x 3.5 mm
• Width 1000 mm

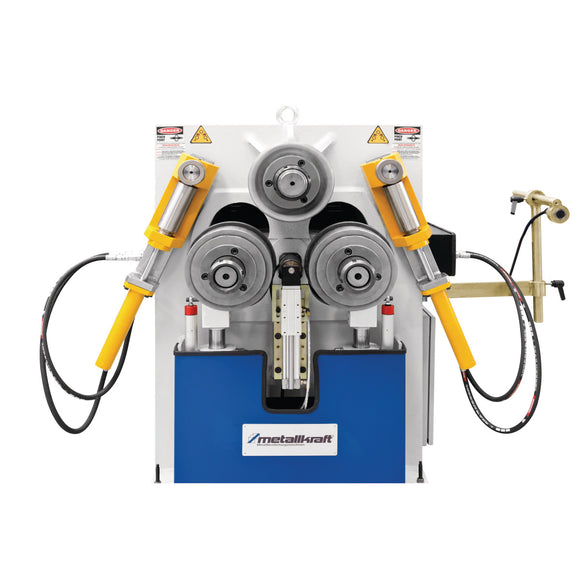

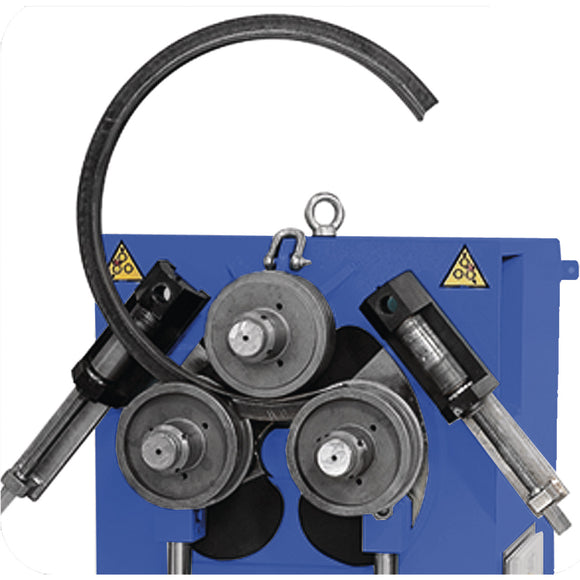

• Standard bending rolls

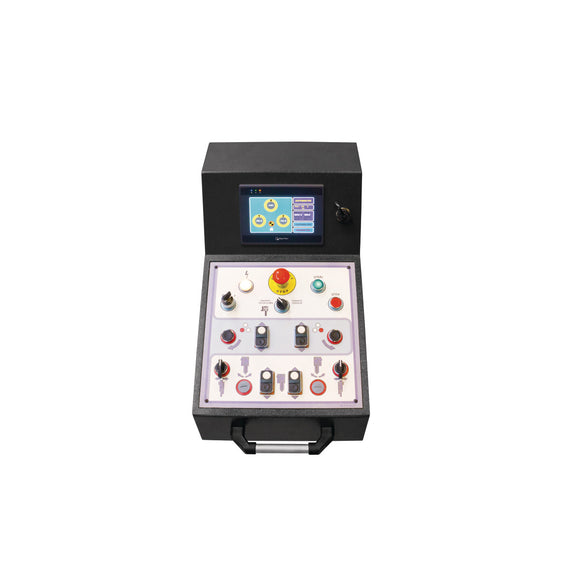

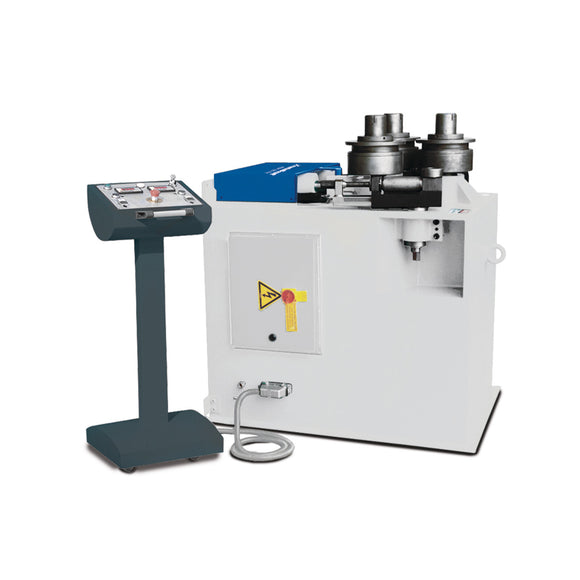

• mobile controller
• one digital display per lower feed roller

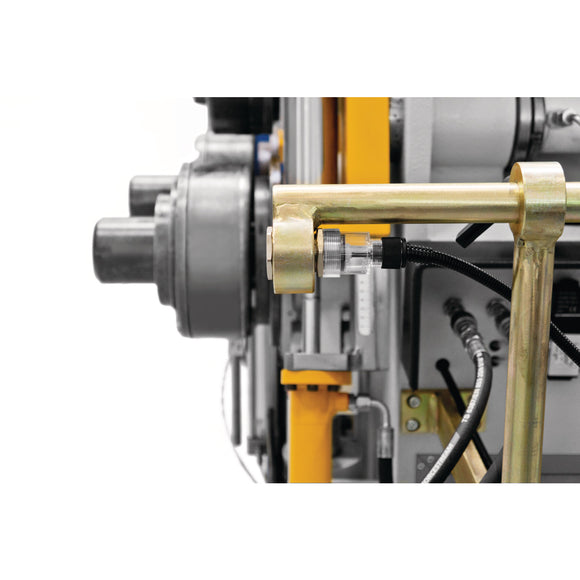

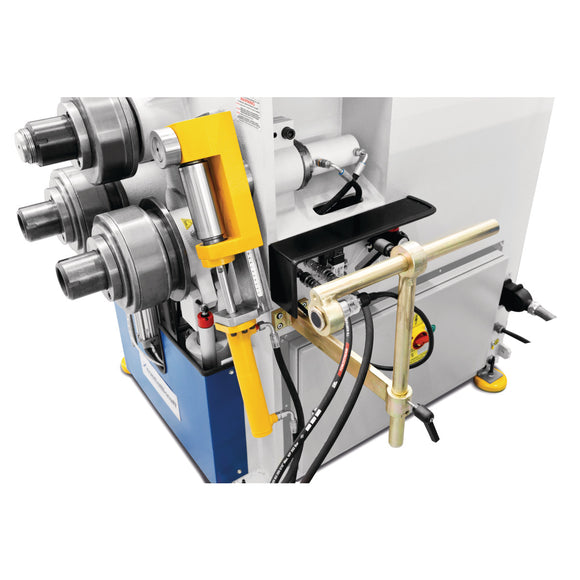

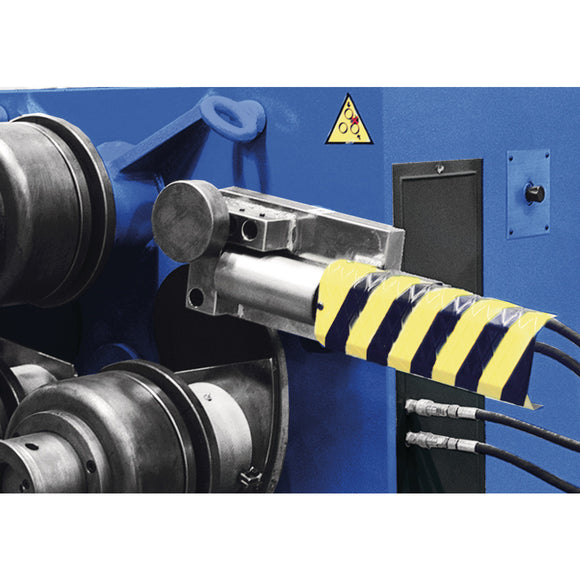

• manual straightening rollers
