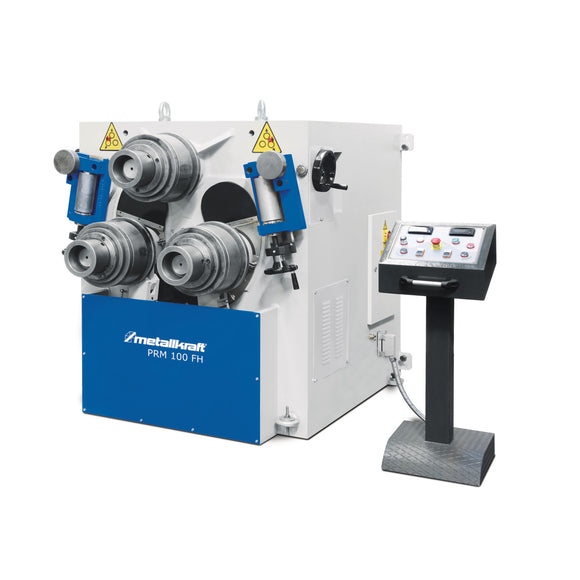

Hydraulic ring bending machine PRM 100 FH

• Explanations for bending performance, profile type optional The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7
• Explanations for bending performance, profile type standard The performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0.7
• Flat material heavy axis dimensions bending Ø (yield point 24 kg/mm²) [1] 100 x 20 mm
• Flat material heavy axis dimensions bending Ø (yield point 24 kg/mm²) [2] 30 x 10 mm
• Flat material heavy axis min. bending Ø (yield point 24 kg/mm²) [1] 800 mm
• Flat material heavy axis min. bending Ø (yield point 24 kg/mm²) [2] 400 mm
• Flat material light axis dimensions bending Ø (yield point 24 kg/mm²) [1] 200 x 30 mm
• Flat material light axis dimensions bending Ø (yield point 24 kg/mm²) [2] 160 x 35 mm
• Flat material light axis dimensions bending Ø (yield point 24 kg/mm²) [3] 80 x 5 mm
• Flat material light axis min. bending Ø (yield point 24 kg/mm²) [1] 1200 mm
• Flat material light axis min. bending Ø (yield point 24 kg/mm²) [2] 400 mm
• Flat material light axis min. bending Ø (yield point 24 kg/mm²) [3] 400 mm
• Frequency 50 Hz
• Height 1700 mm
• Length 2000 mm
• Motor power 7,5 kW
• Net weight 3650 kg
• Roller diameter bottom 315 mm
• Roller diameter top 315 mm
• Shaft diameter bottom 100 mm
• Shaft diameter top 100 mm
• Speed 7 m/min
• Square material dimensions (yield point 24 kg/mm²) [1] 60 mm
• Square material dimensions (yield point 24 kg/mm²) [2] 15 mm
• Square material min. bending Ø (yield point 24 kg/mm²) [1] 750 mm
• Square material min. bending Ø (yield point 24 kg/mm²) [2] 400 mm
• Supply voltage 400 V
• T profile inside rib min. bending Ø (yield point 24 kg/mm²) [1] 1000 mm
• T profile inside rib min. bending Ø (yield point 24 kg/mm²) [2] 400 mm
• T profile outside rib min. bending Ø (yield point 24 kg/mm²) [1] 1000 mm
• T profile outside rib min. bending Ø (yield point 24 kg/mm²) [2] 400 mm
• T profile top rib min. bending Ø (yield point 24 kg/mm²) [1] 1000 mm
• T profile top rib min. bending Ø (yield point 24 kg/mm²) [2] 400 mm
• UPN profile inside leg dimensions (yield point 24 kg/mm²) [1] UPN 180
• UPN profile inside leg dimensions (yield point 24 kg/mm²) [2] UPN 30
• UPN profile inside leg min. bending Ø (yield point 24 kg/mm²) [1] 1000 mm
• UPN profile inside leg min. bending Ø (yield point 24 kg/mm²) [2] 400 mm
• UPN profile inside rib dimensions (yield point 24 kg/mm²) [1] 90 x 10 mm
• UPN profile inside rib dimensions (yield point 24 kg/mm²) [2] 30 x 4 mm
• UPN profile outside leg dimensions (yield point 24 kg/mm²) [1] UPN 180
• UPN profile outside leg dimensions (yield point 24 kg/mm²) [2] UPN 30
• UPN profile outside leg min. bending Ø (yield point 24 kg/mm²) [1] 900 mm
• UPN profile outside leg min. bending Ø (yield point 24 kg/mm²) [2] 400 mm
• UPN profile outside rib dimensions (yield point 24 kg/mm²) [1] 100 x 11 mm
• UPN profile outside rib dimensions (yield point 24 kg/mm²) [2] 30 x 4 mm
• UPN profile top rib dimensions (yield point 24 kg/mm²) [1] 100 x 11 mm
• UPN profile top rib dimensions (yield point 24 kg/mm²) [2] 30 x 4 mm
• Width 1450 mm

• Standard bending rolls
• mobile controller
• one digital display per lower feed roller

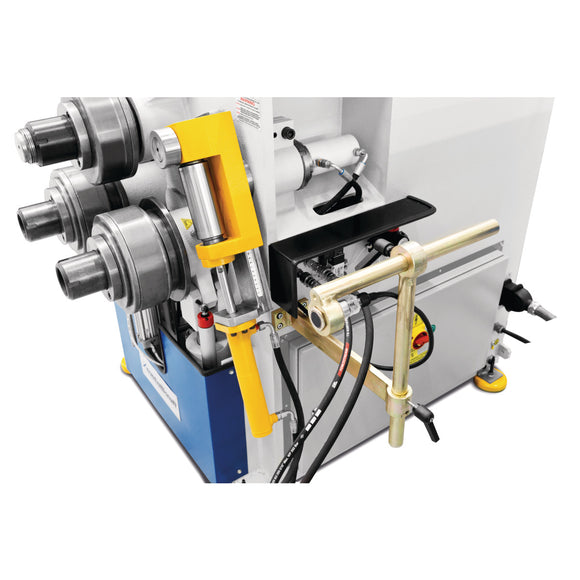

• manual straightening rollers
