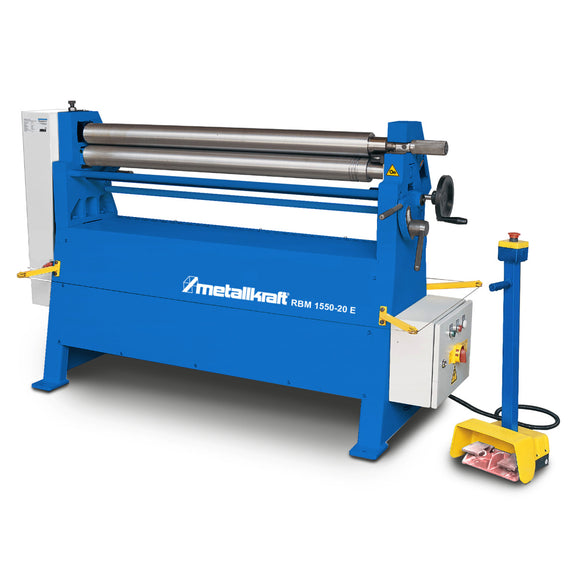

Motorized plate rolling machine RBM 1550-20E

€7.735,47 EUR (€6.289,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3813203 Barcode: 4036351029182

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Motorized plate rolling machine RBM -20E.
  • For use in industry and trade
  • Heavy and stable cast iron construction

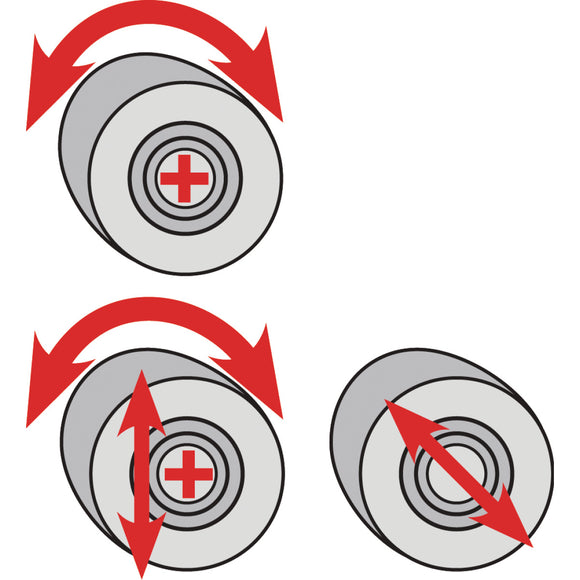

  • Asymmetrical 3-roller system
  • Upper roller swung out, thereby easy removal of the finished workpiece
  • Easily adjustable upper and lower roller
  • The foot control leaves both hands free for the material supply
  • User-friendly
  • Powerful 400 volt engine
  • Optionally available: hardened rollers

Hints:
  • When ordering, please specify the type of material to be processed!
  • All accessories only possible ex works.


.
  • Conical bending ✔
  • Frequency 50 Hz
  • Height 1200 mm
  • Length 2130 mm
  • Max. bending performance aluminium 2.4 mm
  • Max. bending performance in stainless steel 1.5 mm
  • Max. bending performance in steel 400 N/mm²² 2.0 mm
  • Max. taper bending performance in aluminium 1.2 mm
  • Max. taper bending performance in stainless steel 0.7 mm
  • Max. taper bending performance in steel 400 N/mm² 1.0 mm
  • Max. working width 1550 mm
  • Min. bending diameter 135 mm
  • Motor power 1.5 kW
  • Net weight 580 kg
  • Roller speed 6 m/min
  • Supply voltage 400 V
  • Top roller diameter 90 mm
  • Width 700 mm

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

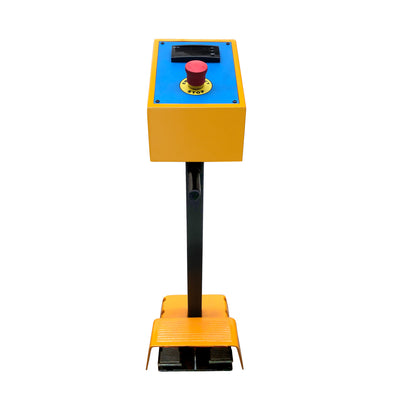

Digital read out of side roller for RBM 1550-20 E Digital read out of side roller for RBM 1550-20 E - 0
